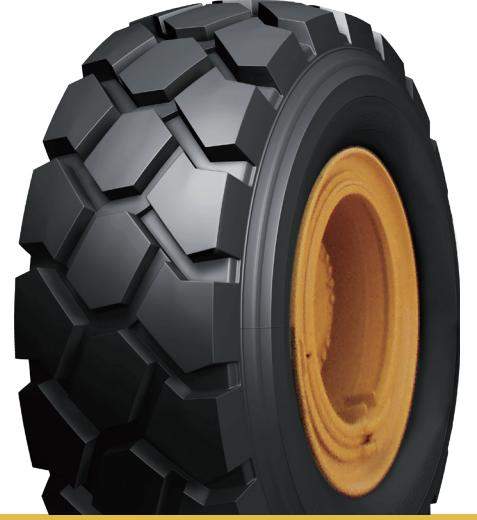

INDUSTRIAL/PORT/INTERMODAL/FORKLIFT
| TIRE SIZE | PATTEEN | SPEED (km/h) |
OD (mm) |
SW (mm) |
TD (mm) |
RIM | SINGLE TIRE LOAD (kg) |
SINGLE TIRE PRESSURE (kPa) |
LOAD SYMBOL |
|---|---|---|---|---|---|---|---|---|---|
| 5.00R8 | REM6 | 25 | 468 | 137 | 24.5 | 3.00D | 1090 | 1000 | 111A5 |
| 6.00R9 | REM6 | 25 | 540 | 162 | 25 | 4.00E | 1450 | 1000 | 121A5 |
| 6.50R10 | REM6 | 25 | 585 | 180 | 27 | 5.0 | 1800 | 1000 | 128A5 |
| 7.00R12 | REM6 | 25 | 670 | 190 | 28 | 5.00S | 2240 | 1000 | 136A5 |
| 7.00R15 | REM6 | 25 | 736 | 195 | 28 | 5.5 | 2725 | 1000 | 143A5 |
| 7.50R15 | REM6 | 25 | 770 | 215 | 30 | 6.0 | 3000 | 1000 | 146A5 |
| 8.25R15 | REM6 | 25 | 838 | 232 | 32 | 6.5 | 3650 | 1000 | 153A5 |
| 225/75R15 | REM6 | 25 | 706 | 230 | 25 | 7.0 | 3250 | 1000 | 149A5 |
| 250/70R15 | REM6 | 25 | 736 | 252 | 26.5 | 7.0 | 3650 | 1000 | 153A5 |
| 315/70R15 | REM6 | 25 | 835 | 312 | 36 | 8.0 | 5150 | 1000 | 165A5 |
| 10.00R20 | REM6 | 25 | 1062 | 294 | 35 | 7.5 | 5300 | 1000 | 166A5 |
| 12.00R20 | REM6 | 25 | 1136 | 320 | 41 | 8.5 | 7100 | 1000 | 176A5 |
| 12.00R24 | REM6 | 25 | 1232 | 322 | 39 | 8.5 | 7500 | 1000 | 178A5 |
| 14.00R24 | REM6 | 25 | 1416 | 390 | 64 | 10.0 | 11500 | 1000 | 193A5 |
| 18.00R25 | REM6 | 25 | 1656 | 522 | 63.5 | 13.00/2.5 | 17500 | 1000 | 207A5 |
