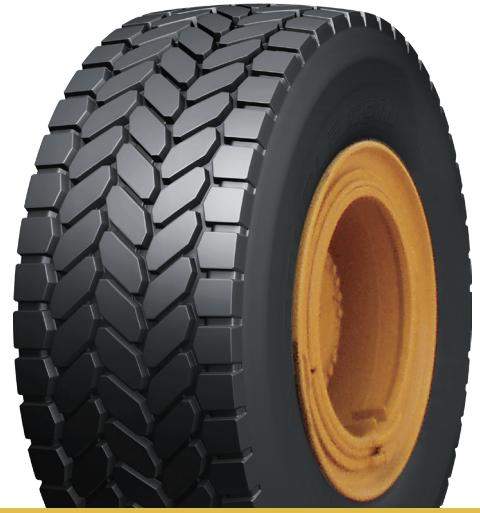

Mobile Crane
High speed mobile crane tire for both on and off-the-road highway applications.
Universal tread pattern provides increased traction.
DOT approved for on-highway use and built strong for off-the-road.
OEM Certified.
1/1
REM8
Negotiable
China
20th Floor, No.560 Xujiahui Road, Huangpu District, Shanghai
021-23537056
zhujian_shuangqian@shhuayi.com
Product Introduction
Product Parameters
| TIRE SIZE | PATEN | LOAD SYMBOL | SPEED (km/h) | OD (mm) | SW (mm) | TD (mm) | RIM | SINGLE TIRE LOAD (kg) | SINGLE TIRE PRESSURE (kPa) | LOAD INDEX | NOTE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.00R24 | REM8 | ★★★ | 70 | 1364 | 396 | 25 | 10.00W | 6340 | 1000 | 170 | E2 |
| 14.00R25 | REM8 | ★★★ | 70 | 1364 | 396 | 25 | 10.00/1.5 | 6340 | 1000 | 170 | E2 |
| 385/95R25 | REM8 | ★★ | 80 | 1364 | 396 | 25 | 10.00/1.5 | 6000 | 900 | 170 | E2 |
| 385/95R25 | REM8 | / | 90 | 1364 | 396 | 25 | 10.00/1.5 | 6000 | 900 | 170 | E2 |
| 16.00R25 | REM8 | ★★★ | 70 | 1488 | 432 | 26 | 11.25/2.0 | 7400 | 900 | 177 | E2 |
| 16.00R25 | REM8 | ★★ | 80 | 1488 | 432 | 26 | 11.25/2.0 | 6700 | 900 | 174 | E2 |
| 445/95R25 | REM8 | / | 100 | 1488 | 432 | 26 | 11.25/2.0 | 6000 | 900 | 170 | E2 |
| 20.5R25 | REM8 | ★★ | 70 | 1490 | 540 | 31 | 17.00/2.0 | 7757 | 703 | 179 | E2 |
| 525/80R25 | REM8 | ★★ | 80 | 1490 | 540 | 31 | 17.00/2.0 | 7100 | 700 | 176 | E2 |
