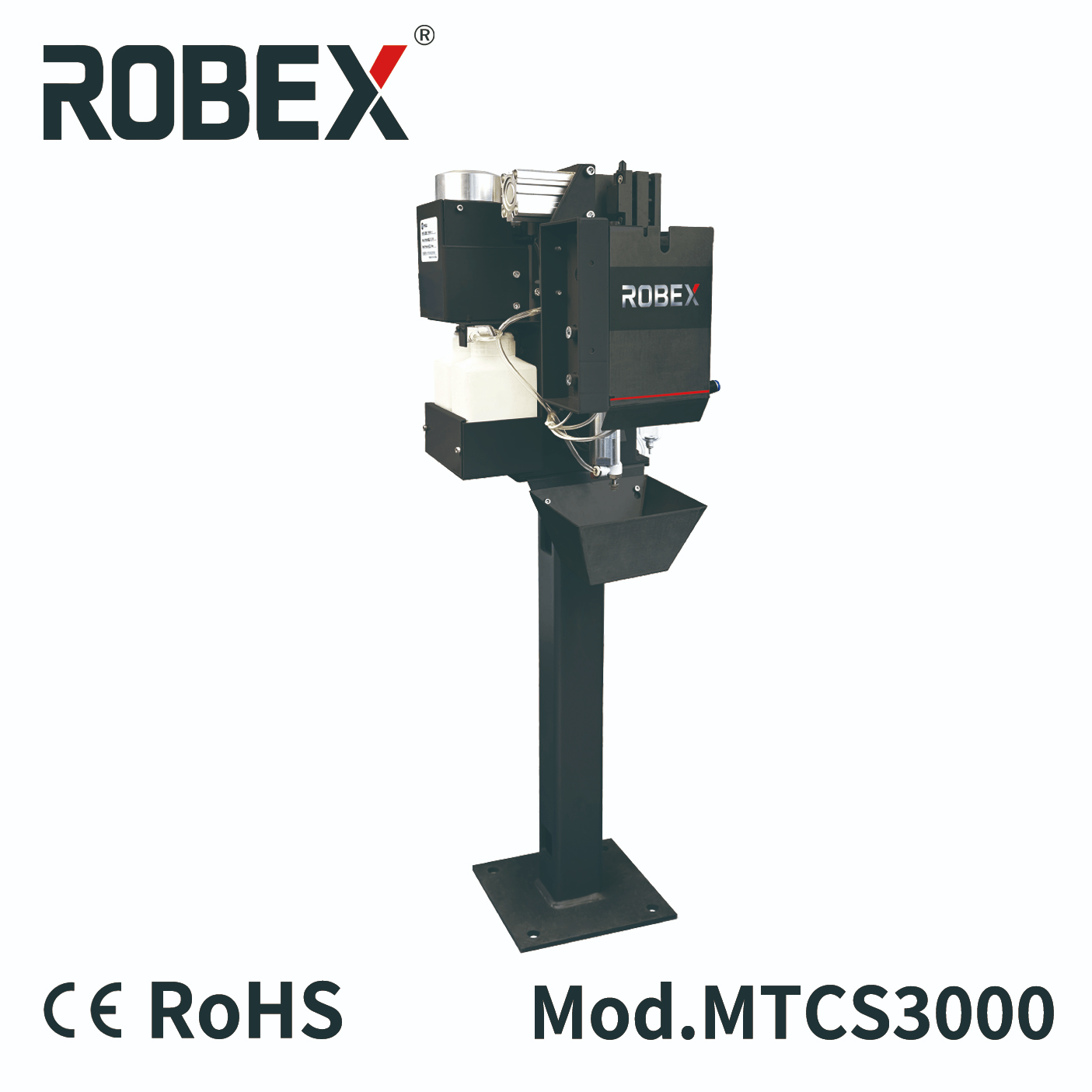

MINOO multi-functional cleaning station has functions of cleaning, wire cutting and spraying anti-spatter agent. Each function can be independently controlled. It can feedback signals of reamer retraction, clamp and release, and wire cutting retraction. It's also equipped with a torch calibration device and stand. The cleaning station is compatible with all brand of welding robots in the market.
Products Advantages
-Provide efficient cleaning for various robot welding torches.
-Precise nozzel positioning.
-The splash nozzel is designed to remove slag stacking efficiently.
-Precise wire cutting to guarantee welding stability.
-Anti-splatter agent quality is adjustable.
Products Specification
| Air source pressure | Oil-free compressed air 0.6~0.8Mpa |
| Air supply connection size | Connector Φ8 |
| Control signal | DC 24V |
| External system interface | 9-hole aviation socket |
| Welding torch cleaning cycle | ≤5s |
| Wire cutting cycle | ≤2s |
| Anti-spatter agent spraying cycle | ≤3s |
| Wire cutting performance | Maximum Φ2mm stell wire |
