Built on the Schneider Electric MVnex design, this compact medium-voltage switchgear platform is engineered with CAD, synthesis-laboratory and dynamic-simulation tools. Designed around real installation, operation and maintenance conditions — reliable in long-term service, simple to operate locally via a front-panel mimic diagram, and safe through full mechanical and electrical interlocking plus internal arc-fault containment. Available in two voltage classes: MVnex-12 (12 kV) and MVnex-24 (24 kV). MVnex is a trademark of Schneider Electric.
1/2

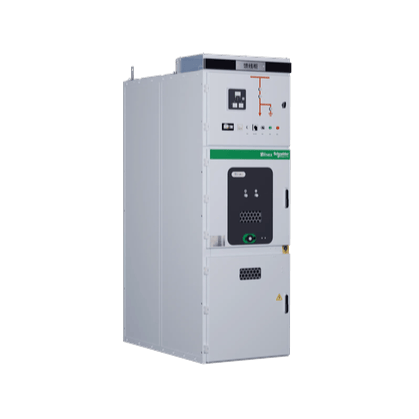

MVnex Compact MV Switchgear (12kV)
EXW
$6,600.00-13,100.00 /Set
China
No. 388 Quanshun Road, Xiaolan Economic and Technological Development Zone, Nanchang County, Nanchang City, Jiangxi Province
18379983771
+86 13060075509
597108072@qq.com
Product Introduction
Technical Parameters
Key Specifications
Standards IEC 62271-200 / -1 (ref. GB 3906)
Rated Frequency 50 / 60 Hz
Protection Degree Enclosure IP4X / compartment IP2X
Impact Protection IK10
Weight 800 – 1200 kg
Other products from this supplier
Negotiable
KYN28-12 Armored Withdrawable Metal-Enclosed Switchgear (12kV)
Negotiable
KYN28-24 Armored Withdrawable Metal-Enclosed Switchgear (24kV)
Negotiable

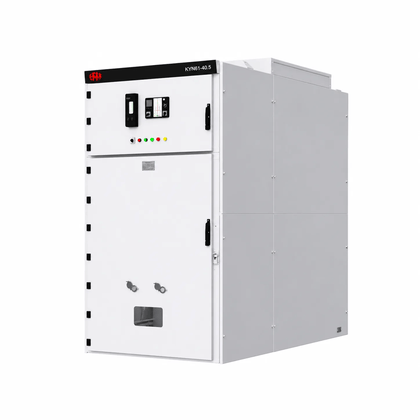

KYN61-40.5 Armored Withdrawable Metal-Enclosed Switchgear (40.5kV)
