A prefabricated compact substation in the European layout: MV switchgear (RMU), distribution transformer and LV switchgear housed in separate internal compartments within a single weatherproof enclosure. Type-tested as a complete assembly to IEC 62271-202 — the natural choice for IEC-signatory markets (Southeast Asia, Middle East, Africa). Handles larger transformer capacities than the American type — used for neighborhoods, hotels, large work sites, industrial parks and renewable plants.
1/2

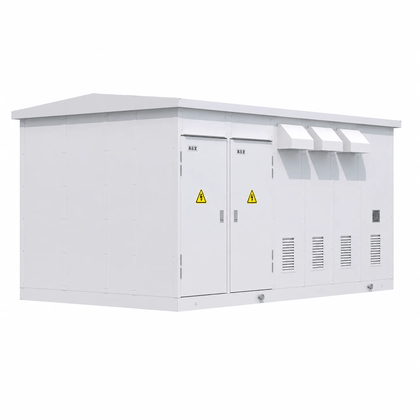

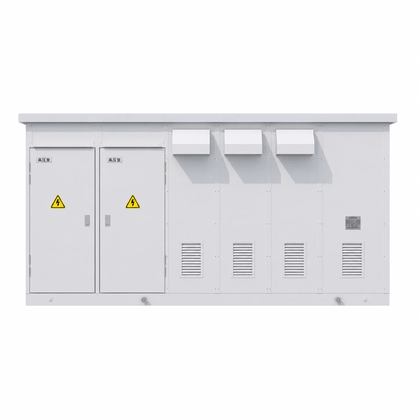

European-Type Substation (YB / YBM Box-Type)
EXW
$28,161.00-34,868.00 /Set
China
No. 388 Quanshun Road, Xiaolan Economic and Technological Development Zone, Nanchang County, Nanchang City, Jiangxi Province
18379983771
+86 13060075509
597108072@qq.com
Product Introduction
Technical Parameters
Key Specifications
High-voltage Rated Voltage 6 – 35 kV
Low-voltage Rated Voltage 0.4 / 0.69 / 0.8 / 1.14 kV
Maximum Operating Voltage 40.5 kV
Rated Frequency 50 / 60 Hz
Rated Capacity 1000 – 8000 kVA
