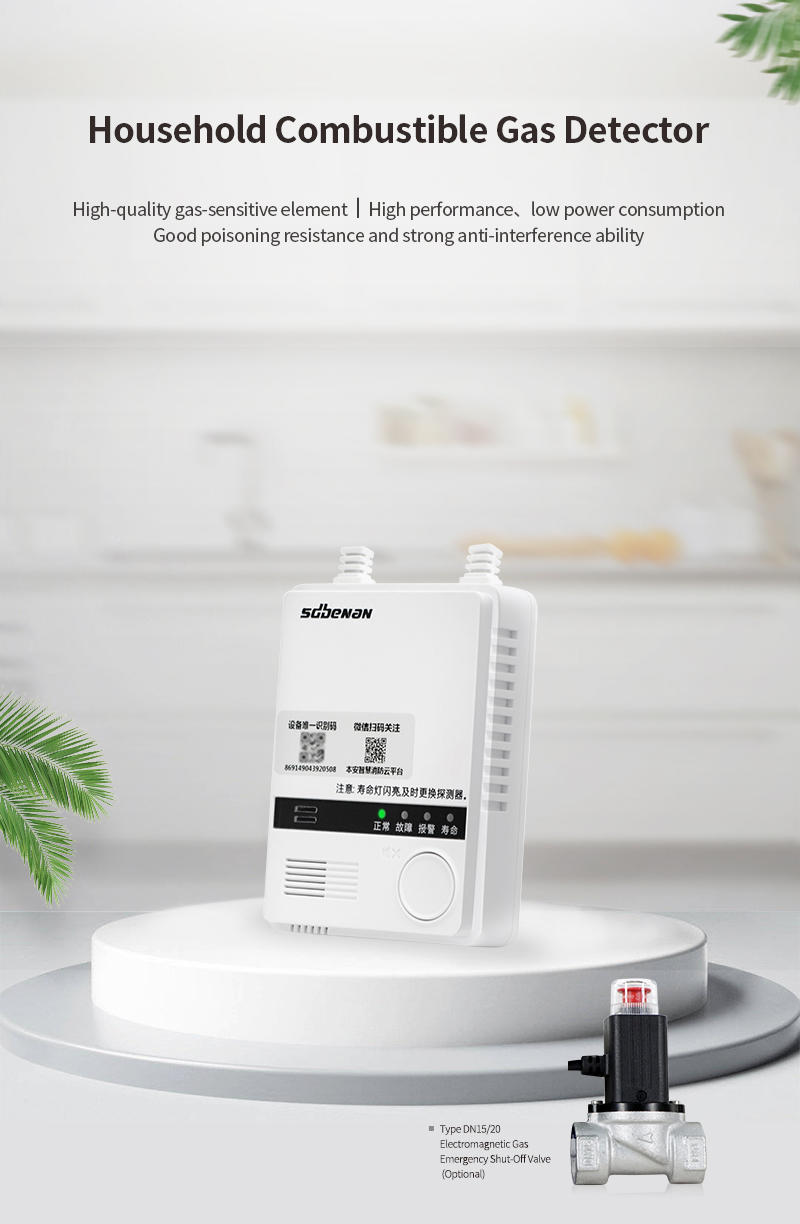

JT-SSJ01Z06W-E Household Combustible Gas Detector

Negotiable
China
No. 169, Helin Street, Gaoxin District, Jinan of China
86 13752227265
+008613752227265
Online Contact
Favorite

Product Introduction

Product Overview:

The JT-SSJ01Z06W-E combustible gas detector is designed in accordance with the national standard GB15322.2-2019. It can detect the on-site gas concentration in real time and determine whether the gas concentration exceeds the alarm threshold; if the threshold is exceeded, the device emits audible and visual alarm signals. Alarm information is pushed via WeChat, platforms, and apps, and it can also activate an emergency shut-off valve to cut off the gas supply. It is suitable for leak monitoring of indoor natural gas pipelines in households.

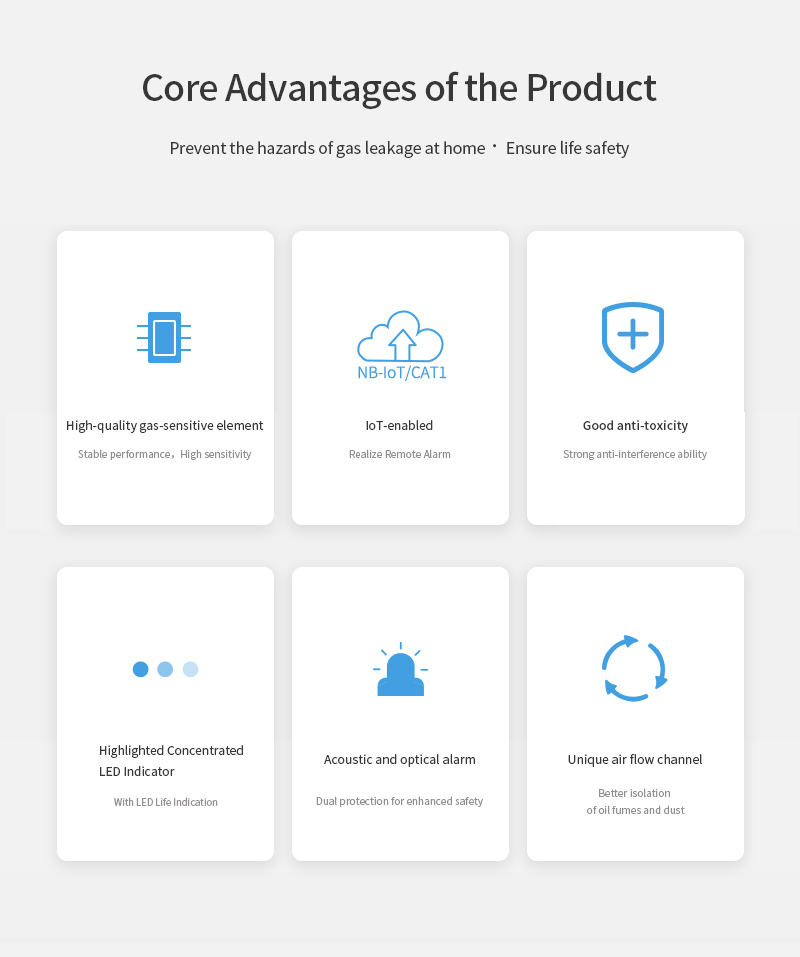

Product Features:

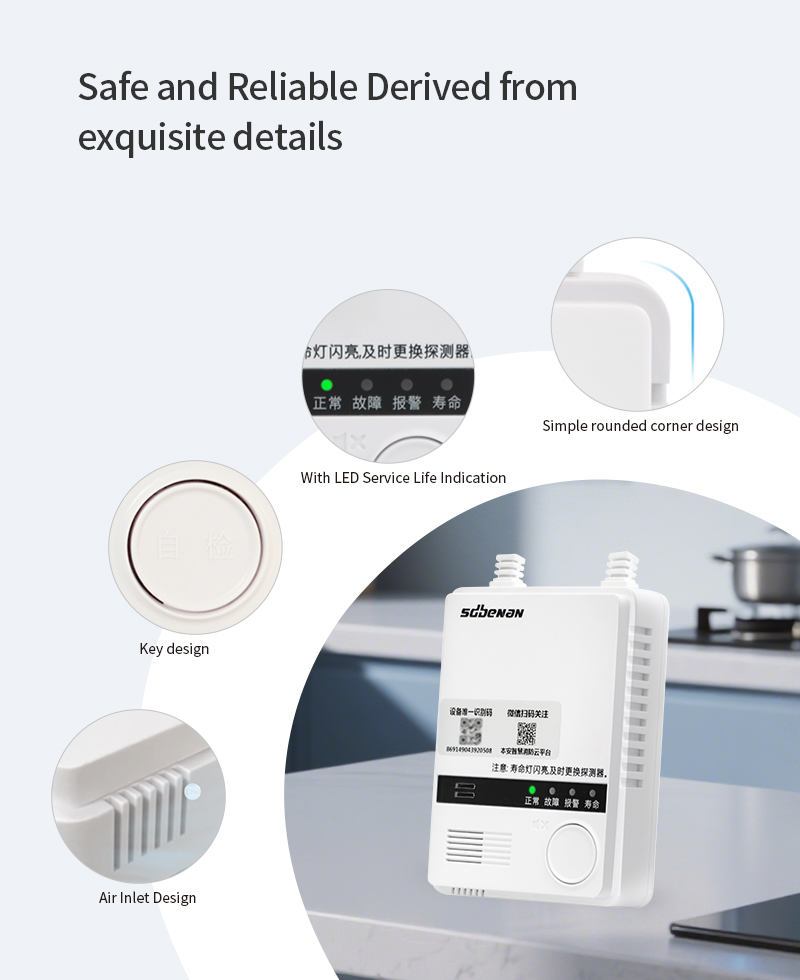

※ LED lifespan indicator.

※ Data communication interface.

※ Black box function.

※ IoT-enabled, enabling remote alarms. Easy phone binding with timely alarm notifications pushed via WeChat.

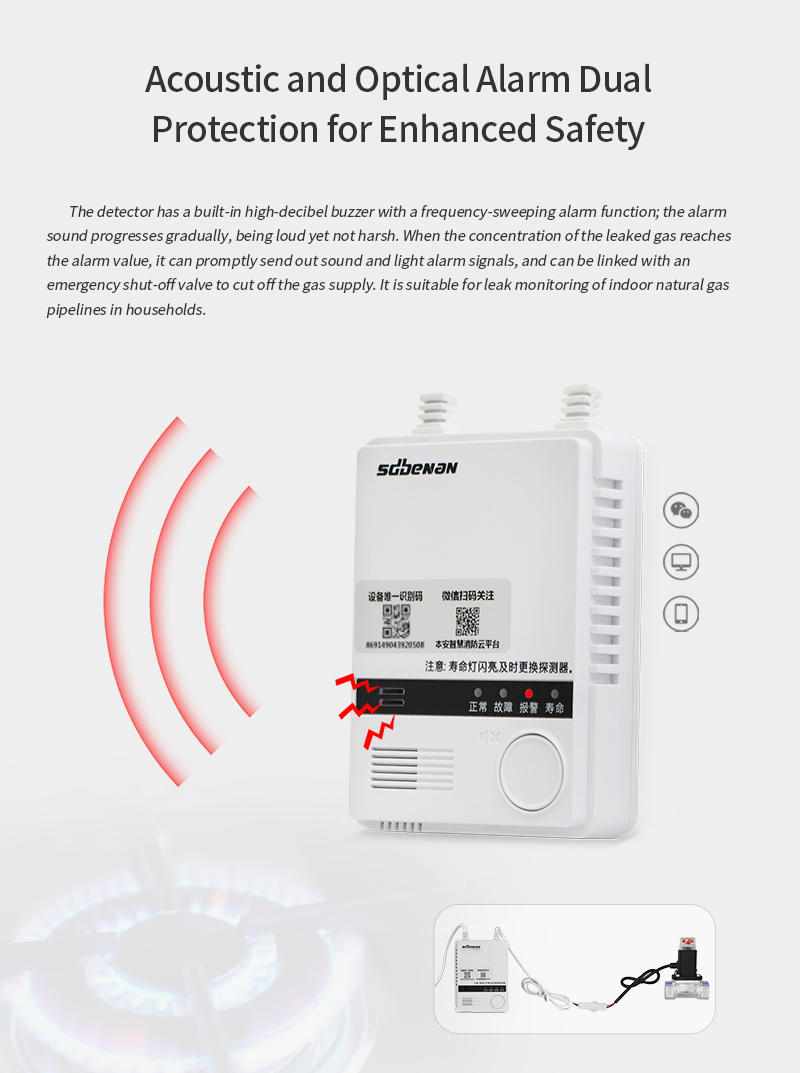

※ Concentration and fault alarms indicated by high-brightness focused LEDs in different colors.

※ High performance, low power consumption, simple operation, and easy maintenance.

※ Equipped with high-quality gas sensing elements, offering stable performance, high sensitivity, excellent poisoning resistance, and strong anti-interference capability.

※ Unique airflow channels and an isolated gas chamber better isolate oil fumes and dust, maintain smooth airflow, and extend service life.

Product Parameters

Rated Voltage AC 220V±15%
Output Interface 12V pulse output (valve actuation) 1 group
Measuring Range 0~20%LEL
Alarm Set Point 10%LEL
Detected Gas Methane
Display Method None
Communication Method (Optional) NB-IoT/4G-CAT1
Black Box Function Yes
Operating Temperature -10°C~55°C
Operating Humidity ≤93%RH (non-condensing)
Pressure Range 86kPa ~ 106kPa

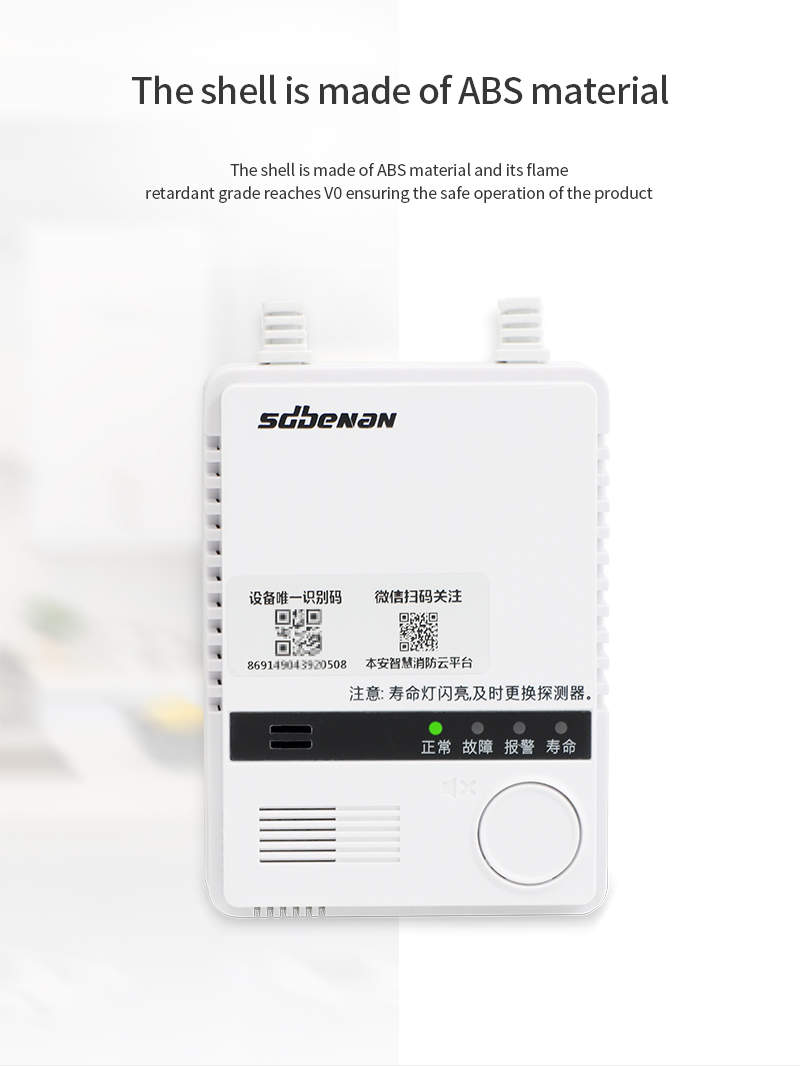

Material ABS
Installation Method Wall-mounted
Applicable Standard GB 15322.2-2019
Dimensions 107mm×79mm×32mm
Optional Equipment Emergency shut-off valve

Product Details

Our Advantages

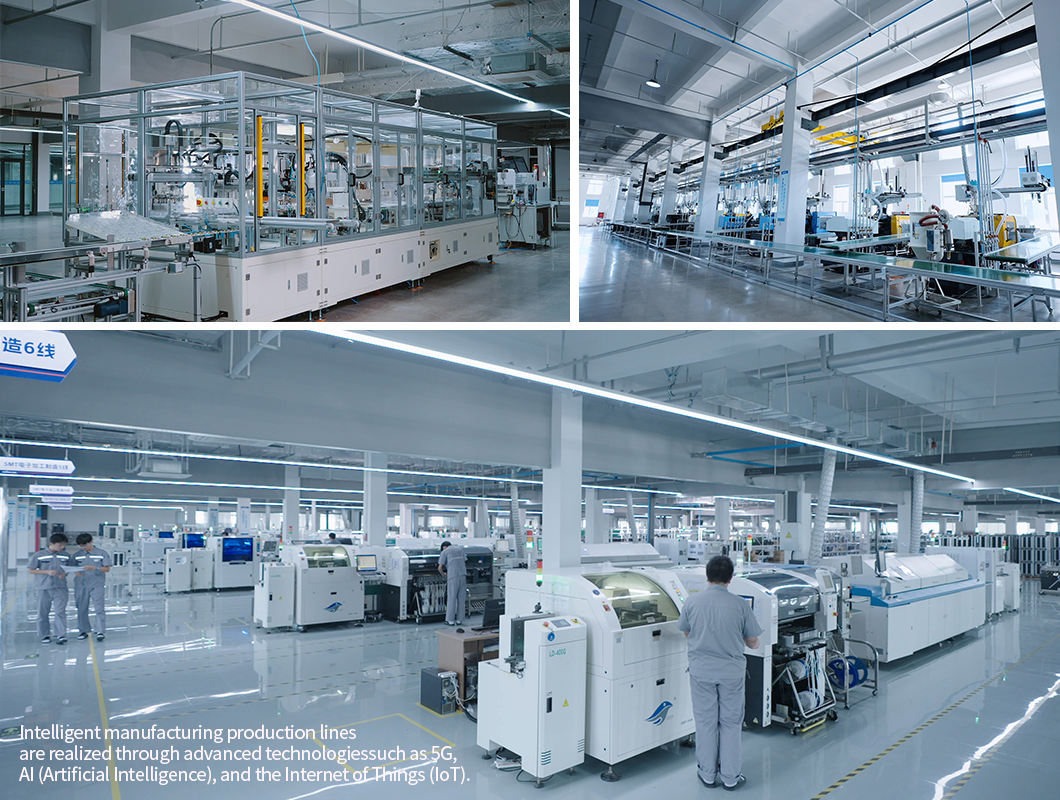

Fully Automated Production Workshop
It is equipped with multiple fully automated SMT production lines and fully automated coating lines, as well as fully automated testing equipment at key nodes of the production lines. This setup not only ensures the consistency and stability of products but also significantly improves production capacity and efficiency.

Certifications

Exhibition
