◇ Product Introduction
Polyvinyl chloride (PVC) waterproofing membrane is a high-performance polymer waterproofing material. Made primarily from PVC resin, combined with various specialized additives and anti-aging components, and manufactured using advanced equipment and processes, the product features high tensile strength, high elongation, low shrinkage, excellent low-temperature flexibility, and long service life. The product offers stable performance, reliable quality, and convenient installation.
Product types:
Homogeneous (H) type: PVC resin
Fiber-backed (L) type: PVC resin, non-woven fabric

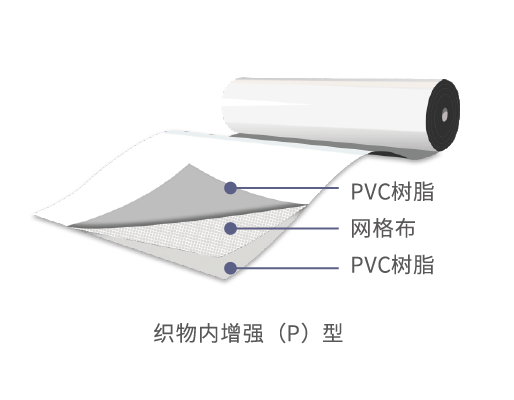

Fabric-reinforced (P) type: PVC resin, mesh fabric, PVC resin
◇ Specifications and Dimensions
| Membrane Classification | Code | Thickness (mm) | Width (mm) | Length (m) |
| Homogeneous | H | 1.2, 1.5, 1.8, 2.0 | 2000 | 20 |
| Fiber-backed | L | 1.2, 1.5, 1.8, 2.0 | 2000 | 20 |
| Fabric-reinforced | P | 1.2, 1.5, 1.8, 2.0 | 2050 | 20 |
Note: Other specifications and dimensions may be determined through mutual agreement between the supplier and the customer.
◇ Product Features
● High tensile strength and high elongation, capable of accommodating significant deformation of the substrate.
● Excellent resistance to high and low temperatures, suitable for various temperature differentials in different environments.
● Long service life and excellent aging resistance, suitable for both exposed and non-exposed applications.
● Excellent weldability, providing strong and reliable welds with easily assured weld quality.
● Simple, fast, and environmentally friendly installation with no pollution.
● Good plasticity, allowing for convenient and rapid treatment of detailed structural details.
◇ Scope of Application
Suitable for exposed and non-exposed roof areas of steel structures and concrete structures.
Suitable for waterproofing projects in basements and subway tunnels.
