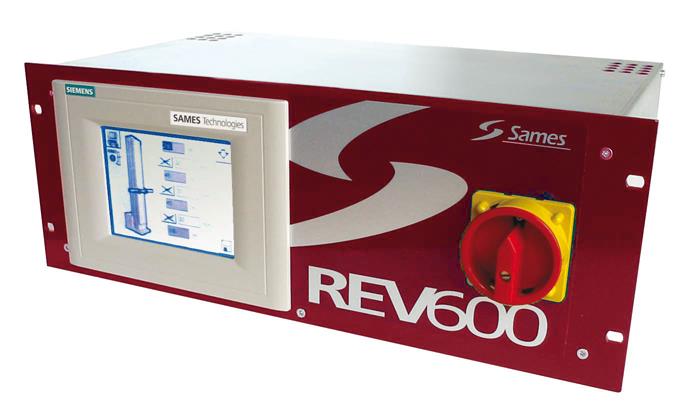

REV 600 Controller

Description The REV 600 was designed to control an automatic powder or liquid electrostatic system. It controls : • The operation of one or 2 reciprocator(s) RFV 2000 • The triggering of the guns • The i......Description The REV 600 was designed to control an automatic powder or liquid electrostatic system. It controls : • The operation of one or 2 reciprocator(s) RFV 2000 • The triggering of the guns • The interfacing with the I/Os of the system. The spray parameters, with its PLC : • Reciprocating motion : 1 to 3 zones, in which one may select the direction reversal points and the speed change points. • Speed adjustable per zone from 0 to 60 m/min • Trigger points for up to 6 guns per recip. • Possibility to enter 10 spray programs for production batching The REV 600 interfaces with the system to manage : • Parts detection (presence of parts) • External faults detection • Correct operation of the booth (conveyor and ventilation) • Faults : warning and external output authorizing a start up (ex : conveyor) • Delay-timers, to spray spaced batches of parts, or parts needing to be coated by 2 recips, or for guns installed over a maximum of 3 different planes in space. Custumer benefits The REV 600 controller provides the operator with a simple-to-use tool to run his system : • Operator friendly : programming is simple and instructive (displays all functions commands with easy to read icons) • Extremely reliable : managed through a PLC • Easy to run : surfing through the menus is made even simpler by the ease of programming • Saves time : easy entering of the recips top and low reversal points. During production, one may go from one of the spray programs to the other without interruption of the spraying. • Ergonomic : the touch-screen permits easy and instant entering of parameters.
