Machine equipped with rotary table 8 positions. Manual loading of fixed and moving contacts. Automatic dispensing of brazing paste. Automatic feeding of the plates. Checking of the plate side to be brazed. Brazing process......Machine equipped with rotary table 8 positions. Manual loading of fixed and moving contacts. Automatic dispensing of brazing paste. Automatic feeding of the plates. Checking of the plate side to be brazed. Brazing process by induction using two independent brazing stations. Manual unloading of the brazed subassemblies. Working rate : 500 moving contacts / hour 1000 fixed contacts / hour. This station is a tailor-made machine, meeting accurate technical specifications. This example aims at showing one possibility of welding station conception and may not be considered as a standard product.
1/1

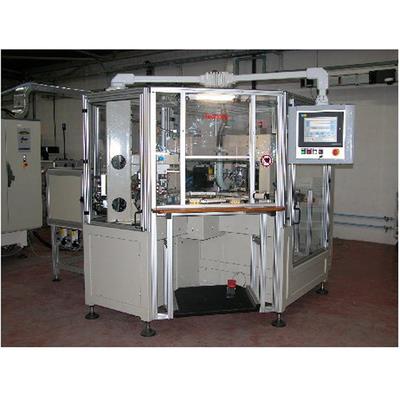

Half-automatic induction brazing machine plates / contact
Negotiable
Product Introduction
