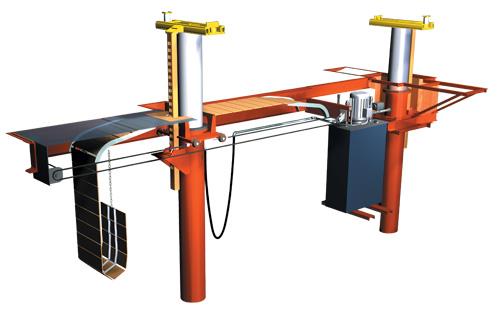

Heavy Duty Lifts Inground Adjustable Traditional

Optional In-Trench Equalized Power Unit While the surface-mounted power unit fits well in many service facilities and can operate one or more lifts, the optional in-trench unit offers many benefits. •Eliminates the ......Optional In-Trench Equalized Power Unit While the surface-mounted power unit fits well in many service facilities and can operate one or more lifts, the optional in-trench unit offers many benefits. •Eliminates the need for additional floor space •No piping or trenches from the power unit to the controls, for an overall 80% pipe reduction •Can be removed for service or repair without breaking concrete •Low noise level unit provides self-equalized operation, no manual adjustment when raising and lowering and meets NEC class 1 division 1 standards Optional Push Button Equalized Controls Simple push button controls eliminates manual equalization. The control box can be mounted on either the floor or wall. These controls are more economical than electronic counterparts. Optional Shutter Plate Trench Covers This option increases productivity by eliminating the manual moving of the cover plates. It is self-storing and adjusts with the front piston to keep the pit covered at all times.Model RU70Q 50,000 lbs. capacity continuous trench lift Shown with optional shutter plate trench covers and in-trench power unit Front Jack Hydraulic adjustment allows the front jack to be positioned for various wheelbases, and is available with an optional recessed pocket for an unobstructed floor when the lift is in the down position. Rear Jack The rear jack features a recessed pocket for an unobstructed floor when the lift is in the down position. A wheel spotting dish for axle positioning guides the placement of the vehicle for lifting. Hydraulic Jack Assembly The jack assembly in both the front and rear housing is removable for inspection or repair without the need to break concrete, and each jack has an 18-position locking leg which locks every 3”. The jack can be released automatically for lowering without going under the lift. Continuous Trench Design The trench design is contained in a concrete vault. This enclosed design allows easy access to all components for inspection and maintenance as well as provides secondary containment. Standard Front Pit Covers Front pit covers are movable and eliminate openings in the pit. Surface Mounted Power Unit The power unit may be sized for one or more lift hook-ups without equalized control. 52 & 60 Series Lift The 52 series lift enables the operator to lift the rear of a vehicle at the axle or wheels by shifting a selection lever. Inground Traditional Standard Features Front jack can be adjusted for multiple wheelbases Rear jack features recessed pocket for unobstructed floor Continuous trench design for easy access to all components Front pit covers to eliminate openings in the pit Surface mounted power unit Options Recessed pocket for front jack In-trench power unit Push button equalized controls Shutter plate trench covers Multiple Models Available
