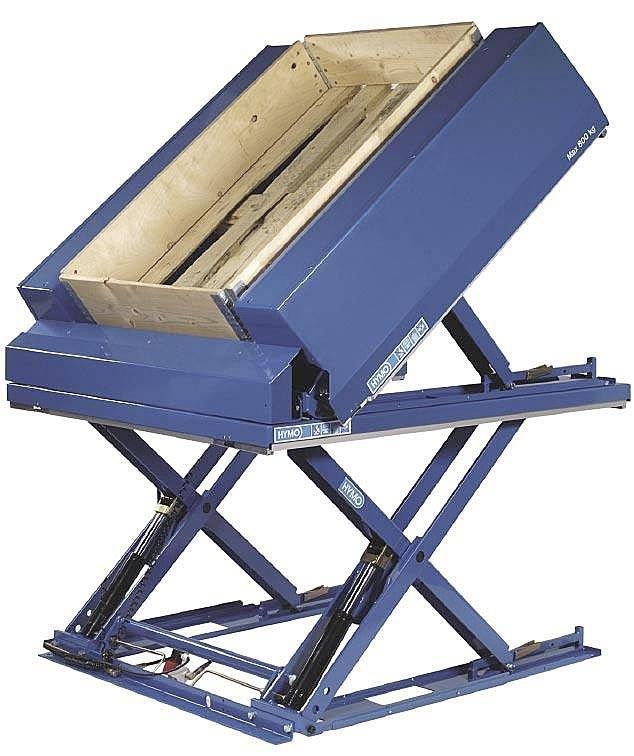

tilting scissor lift table

hymo qx is an electro-mechanical screw lift table. service is very easily done and hymo mek offers an extreme stability and precision. its high performance equals fully that of a hydraulic table. its low closed height mak......hymo qx is an electro-mechanical screw lift table. service is very easily done and hymo mek offers an extreme stability and precision. its high performance equals fully that of a hydraulic table. its low closed height makes it perfect for handling palletised goods. driving rope: planetary roller screw. motor: 3/400/50 2.2 kw. - easy to service. the whole powerpack can be removed. - high stability. - high precision. no hydraulic oil. technical specification: total length: mm 2900 platform length: mm 2200 platform width: mm 800 closed height: mm 330 lift travel: mm 1300 capacity: kg (dan) 2000 lifting speed: mm/sec 38/116 weight: kg 850
