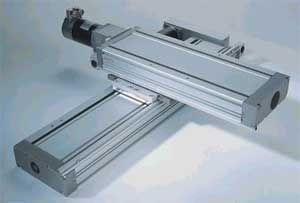

ball screw linear actuator

compact and strong we developed profiline 200 for connecting the best characteristics of a linea axis with the advantages of a precision slide. high strokes, high precision and high load are only some of these advantages.......compact and strong we developed profiline 200 for connecting the best characteristics of a linea axis with the advantages of a precision slide. high strokes, high precision and high load are only some of these advantages. here we integrated the perfected type and well known ief modular style. features: drawn aluminium extruded section with inner profile guides integrated or external assembled inductive limit switches in the profile, routed to a common connector spindle drive direct motor assembly at the spindles or assembled through a belt gear simple assembly by virtue of clamping technology cross mounting or assembly of actuators by adjustable pin system. advantages: high load capacity guiding profile is protected against external forces high rigidity during operation cost effective and efficient mounting of multiple axes handling systems technical data: stroke: 25 - 1500 mm maximum slide load: 5000 n maximum axial charge: 5000 n maximum run-off accuracy 40 μm/ 500 mm max. speed: 1,25 m/s repeatability accuracy: +/- 3 μm
