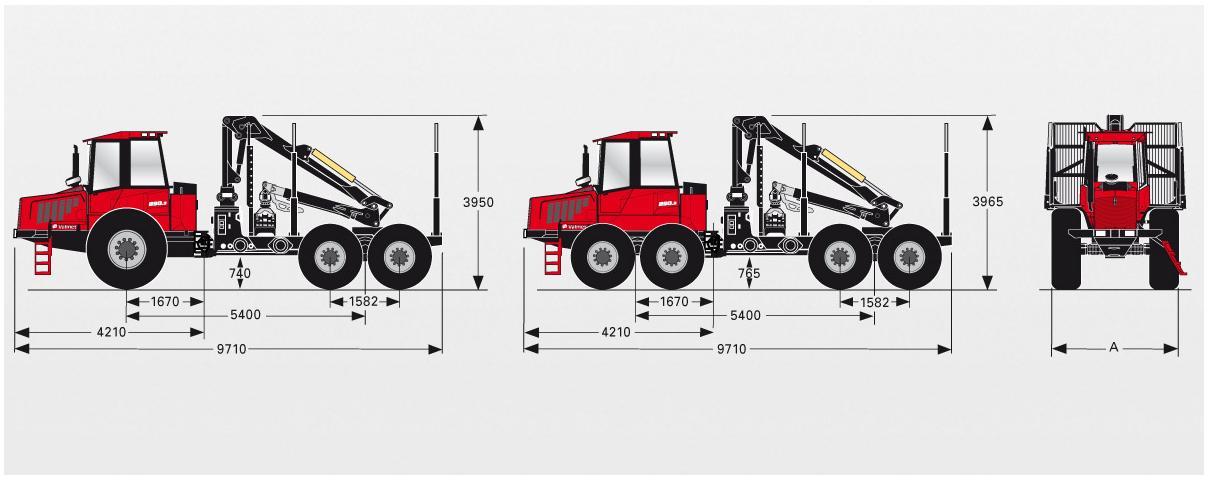

Forwarders 890.3

weight Approximate weight 6 WD: 16,800 kg (37,038 lb), 8 WD: 19,100 kg (42,108 lb) Engine General info 74 CTA, 6-cylinder turbo with Commonrail. Tier 3. Stroke volume 7.4 l Power 150 kW DIN (204 HP) at 2,000 RPM. Torque 1......weight Approximate weight 6 WD: 16,800 kg (37,038 lb), 8 WD: 19,100 kg (42,108 lb) Engine General info 74 CTA, 6-cylinder turbo with Commonrail. Tier 3. Stroke volume 7.4 l Power 150 kW DIN (204 HP) at 2,000 RPM. Torque 1,000 Nm (742 lb-ft) at 1,500 rpm. Fuel tank 210 l (42 gal) Transmission General info Hydrostatic transmission controlled by MaxiForwarder. 6/8-wheel drive. Disengageable carriage drive. Differential locks front and rear. Driving speed 0-25 km/h (0-15 mph) Tractive force 21,100 kp (207 kN, 46,575 lbf) Frame/Axles General info Smooth high-tensile steel frame. Sturdy geared bogie. Dampening bogie stops. Forward and rear tow points. Front axle 6WD: Rigid axle with hub gearing. Available options Bogie lift. Front blade. Hydraulic system General info Single circuit load sensing with variable piston pump. Flow 340 l/min (90 gal/min) at 2 000 RPM, alt. 290 l/min (76.6 gal/min) at 2 000 RPM Working pressure, max 23.5 MPa (235 Bar, 3,400 PSI) Hydraulic oil tank 130 l (34.3 gal) Miscellaneous Pressure filter for hydrostatic circuit. Return oil filter for hydrostatic drive and hydraulics. Hydraulic oil level warning. Brake System General info Dual circuit, fully hydraulic multi-disc brakes. Hydraulic accumulator charging valve. Driving brake/Working brake Multi-disc brakes in oil bath. Automatic or manual engagement when working. Parking brake Spring-action brake with electro-hydraulic control. Emergency brake. Braking performance Conforms to ISO/DIS 11169, VVFS 2003:17 Cab. Ergonomics General info Safety tested. Spacious and bright with very good visibility. Thermal and -acoustic insulation. Safety Conforms to ISO 3471/1 (ROPS), ISO 8082 (ROPS), ISO 8083 (FOPS) and ISO 8084 (OPS) Seat Pneumatic cushioning. Electrically heated. Adjustable lumbar support. Safety belt. Armrest/Controls holder Individually adjustable. Windshields 15 mm (0.6”) safety glass in rear side windows and rear windshield. Heating/Ventilation Fully-automatic heating and cooling unit (AC). Filtered intake air. Noise level As per measurement standard. Vibrations As per measurement standard. Miscellaneous Windshield wiper and washer on front and roof windows. Available options Sun blinds. Radio with MP3 player interface. Air-ventilated seat. Head rest. Lunchbox heater. Cooler box. ACC. Side window wipers. Allergen filter 3 micrometer (1/10,000th inch). Roof hatch. Extra floor mats for easier cleaning. Fire extinguisher, 2 kg (4.5 lb). Bunk area Gross load 18,000 kg (39,680 lb) Bunk area 5.6 m2-6.0 m2 (60.3-64.6 sq. ft.), -hydraulically adjustable Load bunks Mounted on lines, movable Ex. misc. equipment LoadFlex, which increases the bunk area up to 6.59 m2 (71 sq. ft.). Loader and Grapple Loader CRF 14 Reach 7,500 mm (24’7”) Lifting torque, gross 155 kNm (114,300 lb-ft) Slewing torque, gross 41.3 kNm (30,460 lb-ft) Rotator G121 and slewing dampened link MPB. Grapple Valmet G36 Available options Valmet ProTec. Valmet G36HD grapple, Valmet G40 or G40HD grapple. Steering General info Hydraulic articulated joint. Lever steering Load sensing (LS) proportional steering from loader controls/rocker. Steering wheel Load sensing (LS) proportional servo. Steering angle +/- 40° Electrical system Voltage 24 V Battery capacity 2 x 140 Ah Generator 2 x 100 A Lighting Work lights As per measurement standard SS 1784. 16 x 70W, Halogen. Available options Xenon bulbs in cab and on loader. Loader lighting. Rear work lights. Halogen or Xenon. Control and Information system General info MaxiForwarder is a CAN-based control system for managing all machine functions via a user-friendly PC interface. The system is used to set and control loader functionality, transmission and diesel engine characteristics, and other machine settings. The system also offers detailed machine information, troubleshooting, and alarm systems. PC Std: PC 106, Opt: PCX Processor , clock speed Std: 100 MHz, Opt: 1 Ghz Internal memory Std: 16 Mb RAM, Opt: 256 Mb RAM Storage capacity Std: 32 MB (Flash), Opt: 40 Gb (Hard disk) Color display Std: 6,4´´ (opt. 12´´). Anti-reflection glass. DVD player Std: No, Opt: Yes USB ports Std: No, Opt: Yes, 4 Serial ports Std: 2, Opt: Yes, 4 Operating system Std: MS-DOS, Opt: Windows XP Pro Keyboard Std: No, Opt: Included (integrated trackball) Available options for PC 106 Keyboard. Floppy disk drive. Software for PCX GIS program. Production reports. Maxi P and Maxi D production file reader. Available options PCX A4 printer. GPS antenna. Example of available options Other available options Operator’s Manual in paper format (electronic manual is included in Maxi). Spare Part Catalog in paper format (electronic manual is included in Maxi). Diesel heater. 9.1 kW incl. timer. Biodegradable hydraulic oil. Tracks, chains. Toolbox. Centralized lubrication. Rearview camera. Water filter, diesel. Sprinkler unit Automatic and manual fire extinguishing. Conforms to RUS 127. Hand-held extinguishers 2 x 6 kg ABE-3
