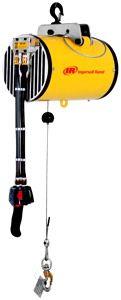

ZA Balancers

The Ingersoll Rand “ZA” series balancer is the most common, and is designed for high speed, precision handling of variable weight loads. Up/down movement is accomplished through the use of an ergonomically designed pend......The Ingersoll Rand “ZA” series balancer is the most common, and is designed for high speed, precision handling of variable weight loads. Up/down movement is accomplished through the use of an ergonomically designed pendant with low-effort, color coded thumb levers. After positioning the load with the pendant control, the unit defaults into a “Float” mode that allows the operator up to 18 in (457 mm) to manually adjust the load for final positioning. View Model Specifications Catalog Section Drawings FeaturesPendant Control Ergonomic Up/Down pendant control for variable speed and feathering of load Safety If the air supply is ever interrupted, the unit will maintain the load in the suspended position Standard emergency cable retract brake If the load is accidentally lost, a spring loaded centrifugal brake automatically stops the rapid upward cable travel Standard overload protection The load being lifted can never exceed the unit’s maximum rated capacity at a given air pressure Optional down stop Eliminates the down-drift of suspended loads within 6 inches (152 mm) if air supply is shut down Cable travel Length of wire rope up to 30 ft (9.1 mm) with cable travel up to 120 inches (3048 mm) depending on model and configuration Suspension kits Suspension kits are available for virtually all enclosed track manufacturers, as well as I-beam, Patented/Hardened track, and Hook mounted configurations
