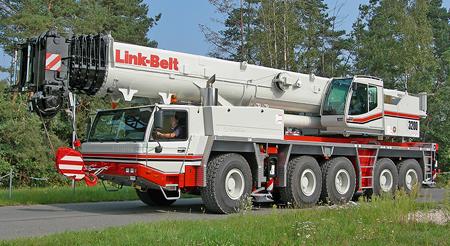

All Terrain Cranes ATC-3200

43.3-196.9 ft (13.2-60.0 m) six section boom 17.7 ft - 43.3 ft (5.4 - 13.2 m) two piece offsettable fly Four 19.7 ft (6.0 m) inserts plus 43.3 ft (13.2 m) two-piece offsettable fly [Total attachment length is 122.1 ft (37......43.3-196.9 ft (13.2-60.0 m) six section boom 17.7 ft - 43.3 ft (5.4 - 13.2 m) two piece offsettable fly Four 19.7 ft (6.0 m) inserts plus 43.3 ft (13.2 m) two-piece offsettable fly [Total attachment length is 122.1 ft (37.2 m)] 331 ft (101.0 m) maximum tip height Height: 13 ft 1in (4.0 m) Width: 9 ft 10 in (3.0 m) Length: 52 ft 4 in (16.0 m) 52.8 mph (85.0 km/hr) travel speed 27 ft 10 in (8.49 m) wheel base 20.5R25 tires Mercedes Benz diesel engines: Upper – OM906LA 6.4L 185 hp (138 kW) Lower – OM502LA 15.9L 523 hp (390 kW) ZF AS-Tronic automated 16-speed transmission 27 ft - 3 in (8.30 m) outrigger spread, 29 ft – 6 in (8.98 m) outrigger base 21,010 lbs (9 530.0 kg) maximum winch line pull 527 fpm (160.6 m/min) maximum winch line speed Key Features:Tested to meet SAE structural and stability requirements Automatic load compensator maintains a consistent radius during load lift-off Crane instrumentation and operational documents have North American units of measure Multiple steering modes that can be controlled from the carrier cab Boom dolly provisions Free and automatic swing brake modes Tilting interior within the operator’s cab Air conditioning in the carrier and operator’s cabs Outrigger controls in the operator’s cab Central lubrication system for the upper and carrier 10x8x8 Drive/Steer Third axle lift system Engine compression brake and intarder Cruise control
