LZZBJ9-10/150b/4 type current transformer
Negotiable
Beijing Micropower Technology Co., Ltd
China
3032, Building 6, No. 97 Changping Road, Shahe Town, Changping District, Beijing (Changping Demonstration Park)
010-57785002
Online Contact
Favorite
Product Introduction

I. Overview

Rated voltage 10kV and this type of current transformer is epoxy resin cast fully enclosed pillar structure, suitable for indoor 50Hz, below the power lines and equipment for current, electric energy measurement and relay protection use. This product is high precision, high dynamic thermal stability and large capacity product. The number of secondary windings 2-3, can be arbitrarily combined according to different needs.

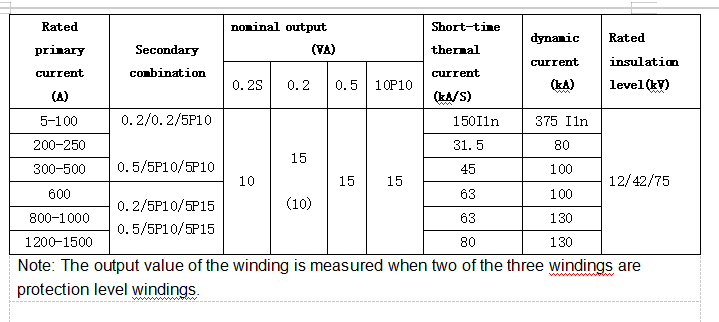

Technical parameters

Standard :GB/T20840.1 and GB/T20840.2

Rated frequency :50Hz

Rated secondary current :5A or 1A

Ambient temperature :-5℃~+40℃
