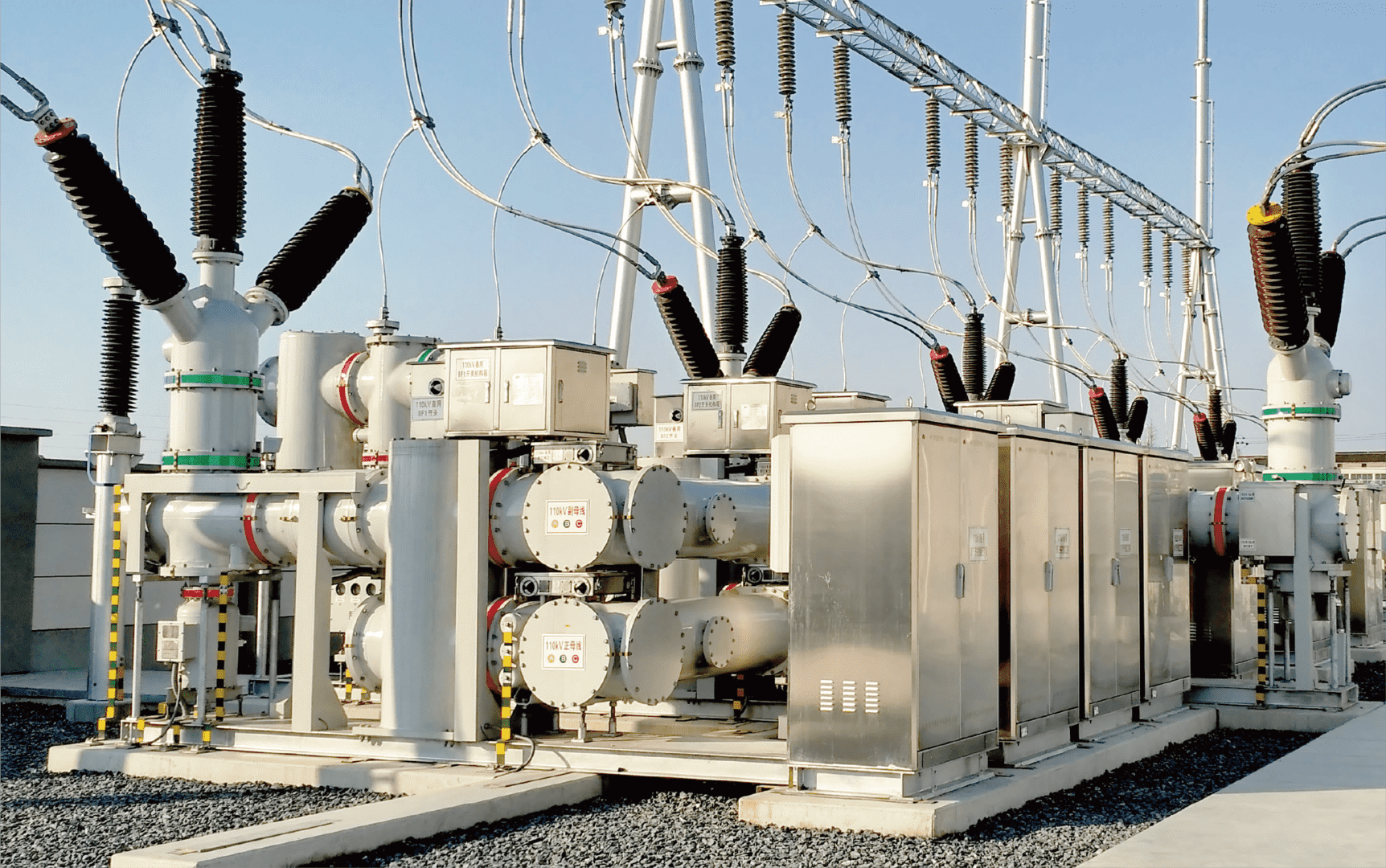

Gas Insulated Switchgear (GIS) is a type of electrical switchgear where all the primary high-voltage components, except the transformer, are enclosed within a metal grounded enclosure filled with insulating gas. This includes circuit breakers, disconnect switches, grounding switches, current transformers, voltage transformers, surge arresters, busbars, connectors, and outgoing terminals. GIS is widely used in high voltage, ultra-high voltage, and extra-high voltage areas within power systems.

Gas Insulated Switchgear (GIS) is a type of electrical switchgear where all the primary high-voltage components, except the transformer, are enclosed within a metal grounded enclosure filled with insulating gas. This includes circuit breakers, disconnect switches, grounding switches, current transformers, voltage transformers, surge arresters, busbars, connectors, and outgoing terminals. GIS is widely used in high voltage, ultra-high voltage, and extra-high voltage areas within power systems.

Performance Characteristics:

1. High Reliability and Strong Safety:

   • GIS systems offer exceptional reliability and safety features, ensuring stable operation in various conditions.

2. Convenient Installation and Flexible Configuration:

   • The compact and modular design of GIS allows for easy installation and flexible configuration, suitable for different application requirements.

3. Compact Structure and Small Footprint:

   • GIS occupies significantly less space compared to conventional substations, often requiring less than 10% of the area.

4. Strong Environmental Adaptability and Low Maintenance:

   • GIS systems are designed to operate efficiently in diverse environmental conditions with minimal maintenance requirements. The major components typically require servicing only once every 20 years or more.

GIS technology is highly valued in the power industry for its efficient use of space, safety, and longevity, making it an ideal choice for modern electrical infrastructure.
