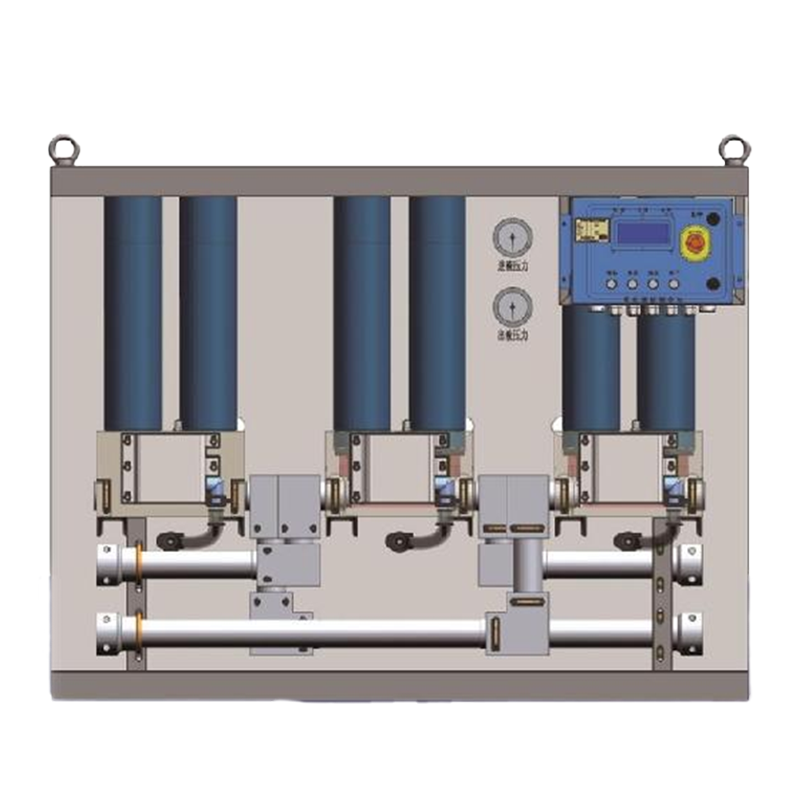

Multi-stage filtration system-Automatic Backwash High-Pressure Filtration Station
Negotiable
China
No. 560, Fangzhou Road, Ma’an Street, Liuhe District, Nanjing City, Jiangsu Province
+86 025-57126659
Online Contact
Favorite
Product Introduction

① Features a large filtration area, strong pollution capacity, high precision, and the ability to perform multiple backwashes

② Made with a fully integrated stainless steel structure, the filter elements are designed with high-strength 304 stainless steel mesh in a modular and functional design. The pilot valve and backwash valve are integrated for easier maintenance

③ The control system is designed to be standardized and parameterized, allowing different flow rate control systems to be set through parameter adjustments

④ Equipped with an integrated inlet and outlet multi-port block, enabling customized standard interfaces

⑤ Features include timed backwashing, differential pressure backwashing, electric control sequential backwashing, and manual button-activated backwash options

Product Specifications

Name

Code/Model

Nominal flow L/min

Nominal pressure Mpa

Filtration accuracy

μm

Energy storage volume

L

Interface

Automatic backwashing high pressure filter station

LMGZ(1500/37.5/25).00

1500

38

25

/

3 * GN50

Automatic backwashing high pressure filter station

LMGZ2500/37.5/25).00

2500

38

25

/

3 * GN50

Automatic backwashing high-pressure filtration liquid supply and energy storage integrated device

LMGGLZ(1500/37.5/256).00

1500

38

25

126

3 * GN50

Automatic backwashing high-pressure filtration liquid supply and energy storage integrated device

LMGGLZ(2500/37.5/25/126).00

2500

38

25

126

3 * GN50
