① S-BUS bus communication, convenient for system design and expansion
② 4-20mA (Hart) branching system communication, integrated total and branch lines, convenient for construction and inventory
③ Sensor modular design, reduces usage and maintenance costs
④ Infrared remote control, field operation without opening the cover
⑤ LCD display, three-color backlight, real-time display of gas concentration and equipment status
⑥ Built-in linkage control output, can control field audible and visual alarms or fans/valves
⑦ Dual-wire structure, easy for field installation
⑧ Built-in temperature detection function, ensuring accurate and effective detection in various temperature environments
1/1

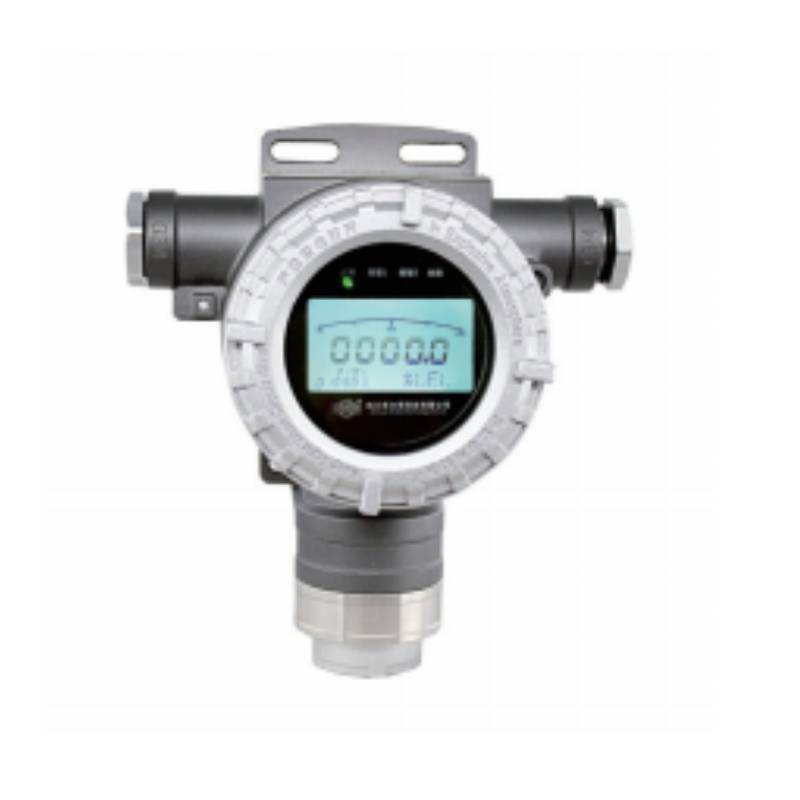

Industrial and commercial point-type combustible gas detector GTYQ-SD2120
Negotiable
China
China (Sichuan) Pilot Free Trade Zone Room 502, Area 7, Haolang Technology Park, 2666 Konggang 4th Road, Southwest Airport Economic Development Zone, Shuangliu District, Chengdu, Sichuan Province
+86 028-81511655
sales@sc-shield.com
Product Introduction
Product Parameters
|
Product Parameters |
|
|
Project |
Data |
|
Detection of gas |
Methane/Propane/Other Gases |
|
Detection principle |
Catalytic Combustion/Infrared/Electrochemical/Semiconductor/PID |
|
Sampling mode |
diffusion type |
|
Measurement range |
(3~100)%LEL or others |
|
Alarm set value |
Low limit 25% LEL; High limit 50% LEL (combustible gas factory default) |
|
Alarm error |
± 3% F.S |
|
Response time |
Combustible gas ≤ 30S(T90); toxic gas ≤ 60S(T90) |
|
Protection level |
IP66 |
|
Explosion-proof grade |
Exd IIC T6Gb |
|
Communication mode |
S-BUS Bus & 4-20mA Branch Line |
|
Sensor service life |
3 years (typical) |
|
Usage environment |
Temperature:-40 ℃ ~ +70 ℃; relative humidity ≤ 93% RH; pressure 86 kPa ~ 106 kPa |
|
Linkage output |
2-way passive switch signal, contact capacity 1A/AC220V or 1A/DC24V |
|
Adapter controller |
SD8001A/B, SD8003/F, SD8006, SD8052 |
|
Product Weight |
2050g |
|
Product size |
201x178x101mm |
