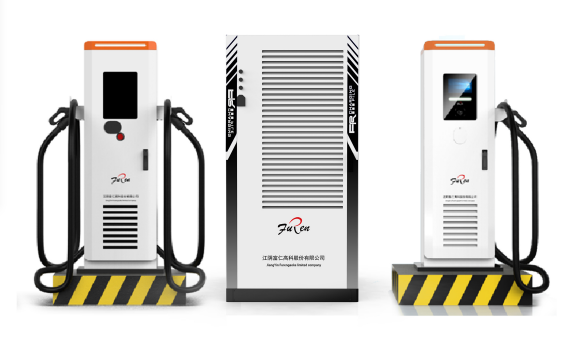

240-480kW Split-type DC Charging Pile Series

Negotiable

Located Region:

China

Address:

No. 8-6 and 8-7, Xinyuan Road, Jiangyin City, Jiangsu Province

Biz Consulting:

+86 18795652571

E-mail:

frgkonline@furentech.com

Online Contact

Favorite

Safe and Reliable

High-protection design, resistant to rain and snow, sand and wind, anti-condensation, and salt-fog resistant

7-inch color screen, front-opening door with windproof design

Smart Human-machine Interface, Customizable Number of Connectors

Card swiping, APP (QR code scanning), scheduled charging, and multiple startup methods

One-key start for intelligent charging, smart adjustment of charging strategies

Real-time software upgrade function for the entire pile

Powerful Performance

Charging efficiency >95%

Excellent power quality, low output ripple

Ultra-low operational loss and standby power consumption

Wide voltage constant power output, supports high-voltage fast charging

Flexible power allocation

Quality Assurance

ISO9001:2015 quality management system certification

Strict testing for high and low temperatures, overall protection, and 100% full-load aging tests

Product Model	FRGK-DC01-various series
Equipment Size	1600315600mm(HWD)
Man-machine Interface	7 inch LCD color touch screen LED indicator
Start Mode	APP/Card
Installation Method	Floor type
Cable Length	5m
Number of Charging Connectors	Four/six/eight
Input Voltage	AC380V
Input Frequency	50Hz
Rated Power	240kW (constant power)
Output Voltage	200~1000V
Output Current	Single connector maximum 500A
Maximum Efficiency	0.95
Voltage Stabilization Accuracy	≤ ± 0.5%
Steady Flow Accuracy	≤ ± 1%
Power Factor	≥ 0.98
Networking Mode	Ethernet, 4G
Safety Standard	GB\T20234, GB\T18487, NB\T33008, NB\T33002
Protection Design	Charging connector temperature detection, overvoltage protection, undervoltage protection, short circuit protection, overload protection, grounding protection, over temperature protection, low temperature protection, lightning protection, emergency stop, lightning protection
Working Temperature	-25 ℃ ~ +50 ℃
Working Humidity	5% ~ 95% without condensation
Working Altitude	<2000m
Protection Level	IP54
Power Cabinet Size	200010001100mm(HWD)
Noise Control	≤ 65dB
Auxiliary Power Supply	12 & 24V
