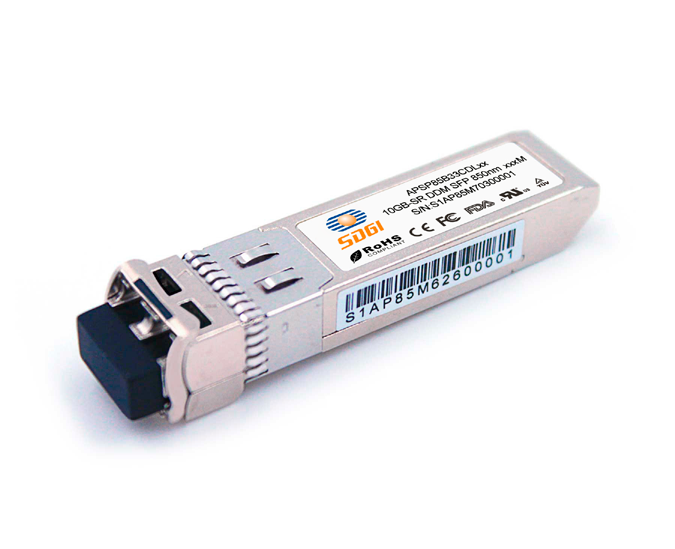

The 10G SFP+ SR complies with SFF-8431 and SFF-8432 protocols, supporting 10G Ethernet applications and 10G Fibre Channel transmission. This product is used for 10G multi-rate data transmission, with a maximum transmission distance of 300 meters over OM3 multimode fiber. The module supports digital diagnostic functions and adheres to the SFF-8472 multi-source agreement.

Product Specifications

○ Package Type: SFP+

○ Transmission Rate: 10.3G

○ Wavelength: 850nm

○ Device: VCSEL/PIN

○ Optical Power Range: -7.3 ~ -1dBm

○ Receiver Sensitivity: -9.9dBm

○ Interface: LC

○ Operating Temperature Range: C/I

○ Transmission Distance: 300m

Application Scope

○ 10G Ethernet

○ 10G FC Protocol Network
