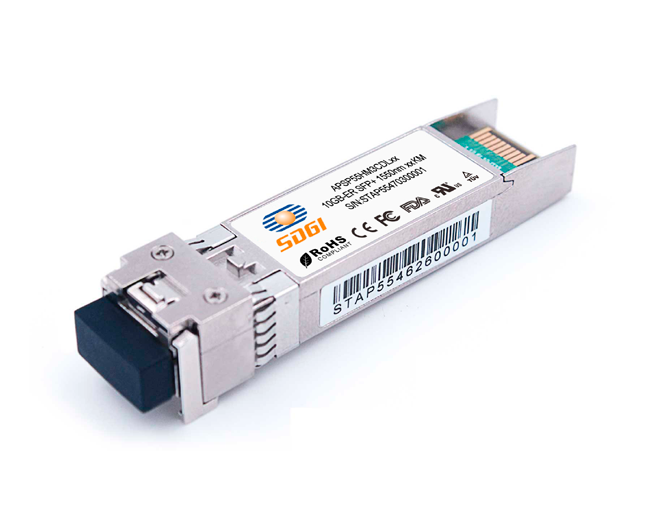

The 10G SFP+ ER complies with SFF-8431 and SFF-8432 protocols, supporting 10G Ethernet applications and 10G Fibre Channel transmission. This product is used for 10G multi-rate data transmission, with a maximum transmission distance of 40 kilometers over G.652 fiber. The module supports digital diagnostic functions and adheres to the SFF-8472 multi-source agreement.

Product Specifications

○ Package Type: SFP+

○ Transmission Rate: 9.95~11.3G

○ Wavelength: 1550nm

○ Device: EML/PIN

○ Optical Power Range: -1~4dBm

○ Receiver Sensitivity: -16dBm

○ Interface: LC

○ Operating Temperature Range: C/I

○ Transmission Distance: 40km

Application Scope

○ 10G Ethernet

○ 10G FC Protocol Network

○ STM-64 Synchronous Digital Network
