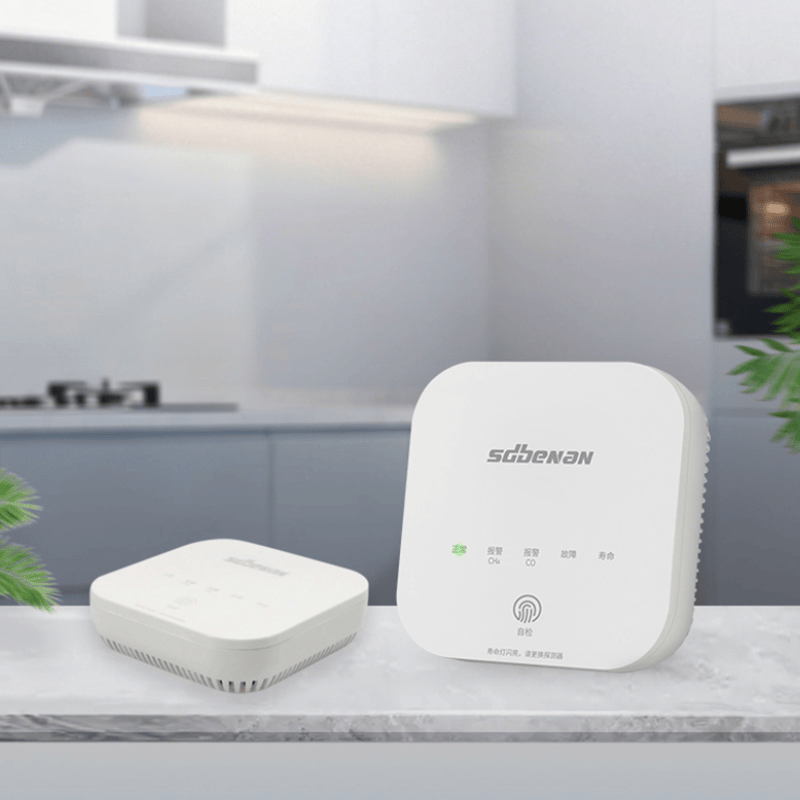

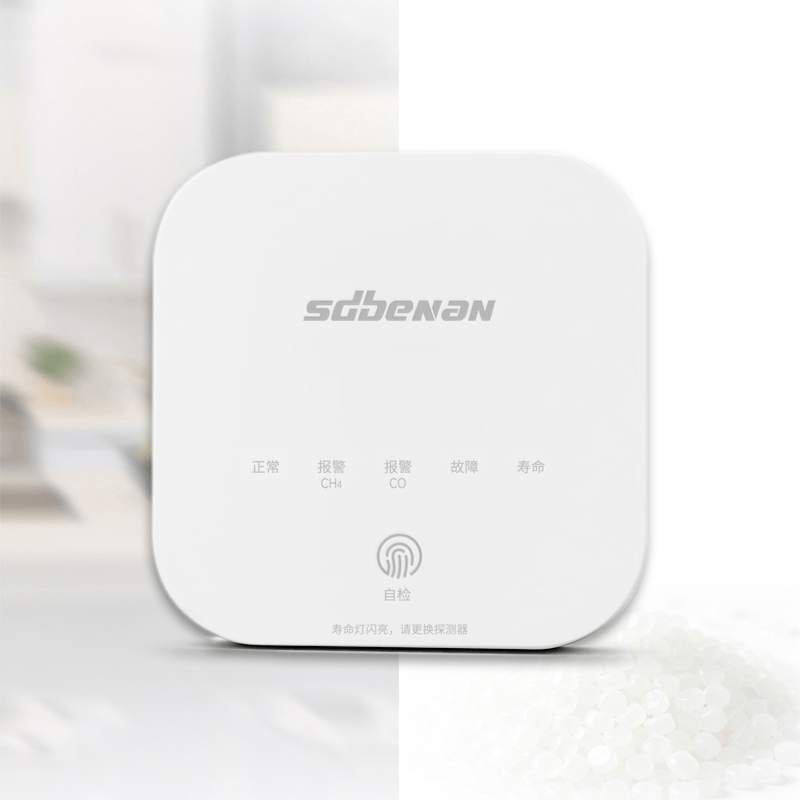

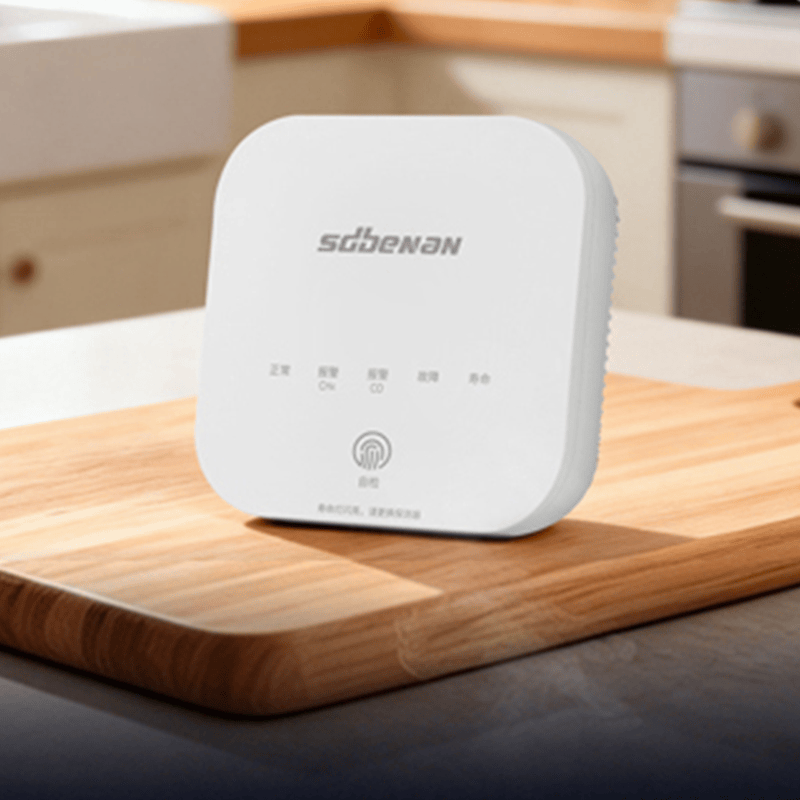

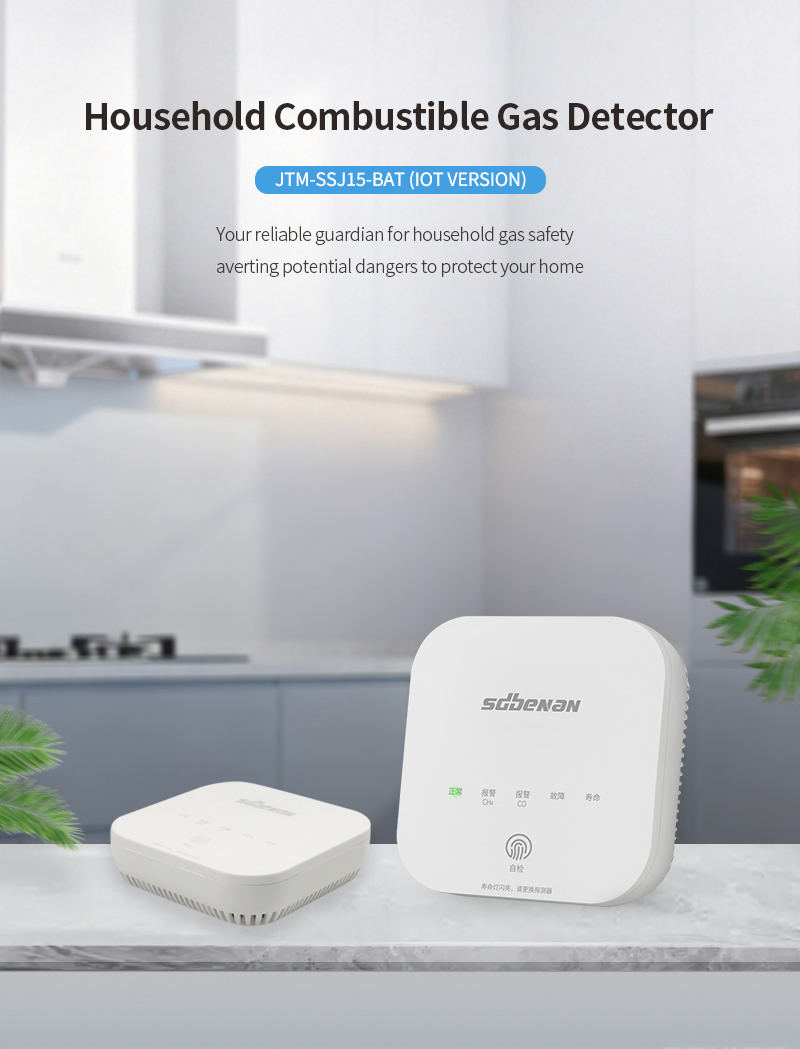

JTM-SSJ15-BAT Household Combustible Gas Detector

EXW
$12.00-13.00 /pcs
China
No. 6519, Lingang North Road, High-tech Zone, Jinan City, Shandong Province
86 13752227265
Online Contact
Favorite
Product Introduction

Product Description:

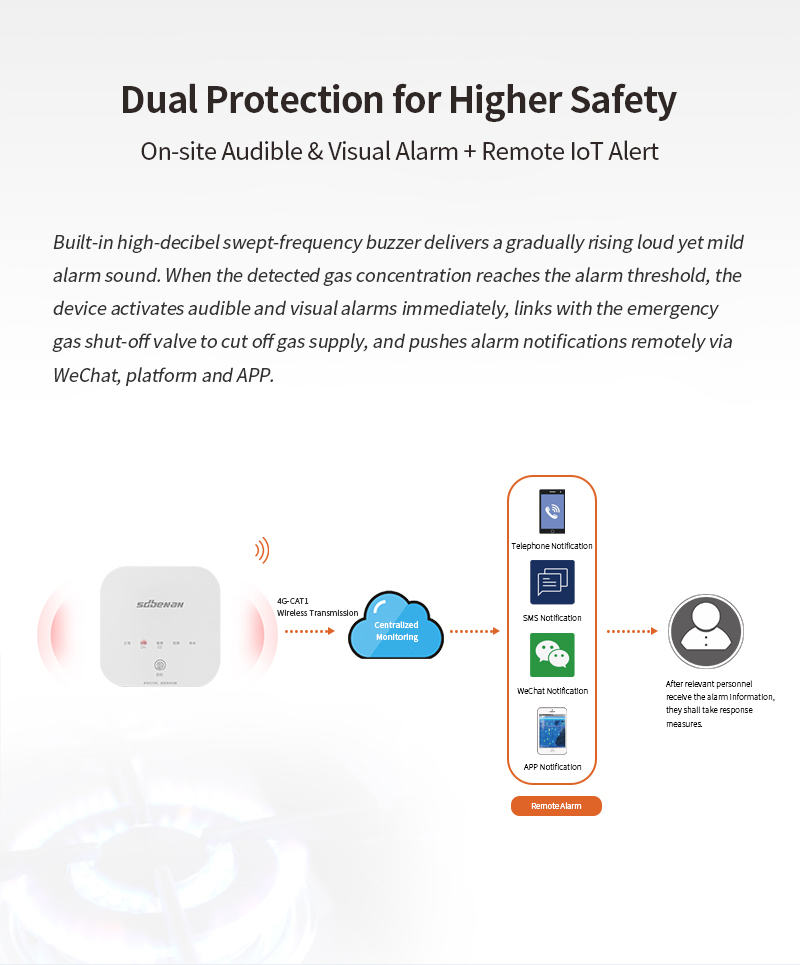

The JTM-SSJ15-BAT household combustible gas detector can detect on‑site gas concentration in real time and determine whether it exceeds the alarm threshold. When the concentration exceeds the alarm threshold, the device outputs an audible and visual alarm signal and sends alarm notifications via WeChat, monitoring platform, and mobile APP. This product is suitable for residential monitoring of methane and carbon monoxide in household applications.



Product Features:

※ High‑integrity imported sensor and strong reliability, excellent anti‑poisoning and anti‑interference performance.

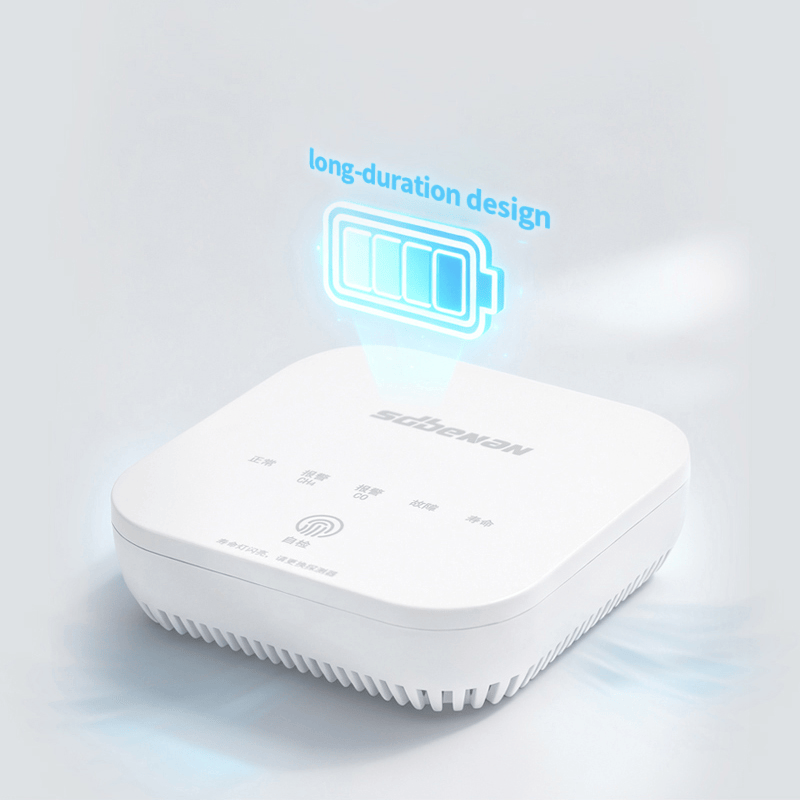

※ Built‑in lithium battery with long service life.

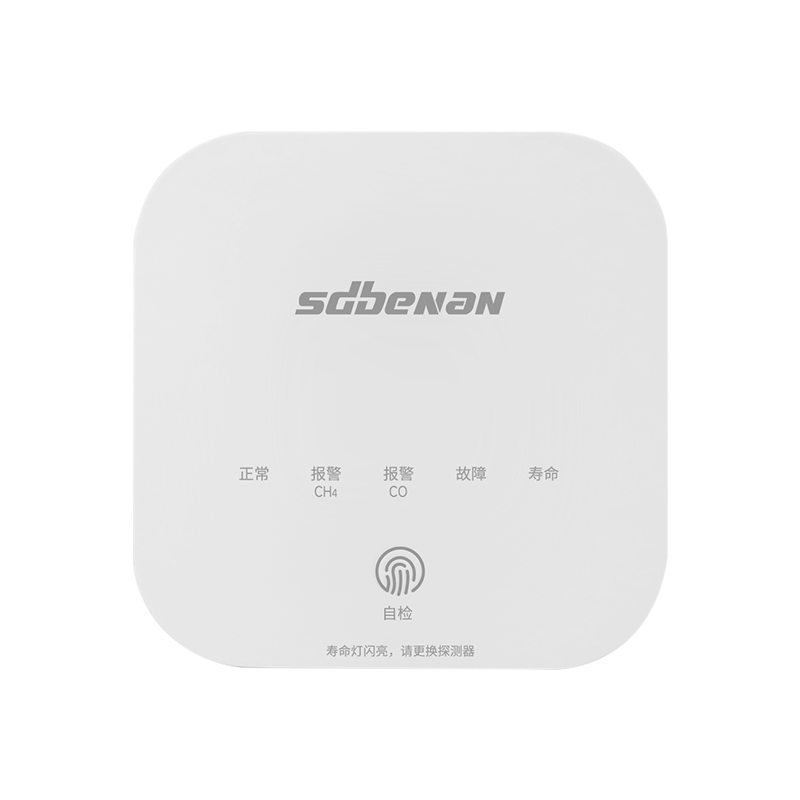

※ High‑brightness LED indicators, displaying device status in different colors.

※ Wireless valve control, low power consumption, and simple operation and maintenance.

※ Realizes remote alarm. Easy mobile phone binding, with alarm information pushed timely via WeChat.

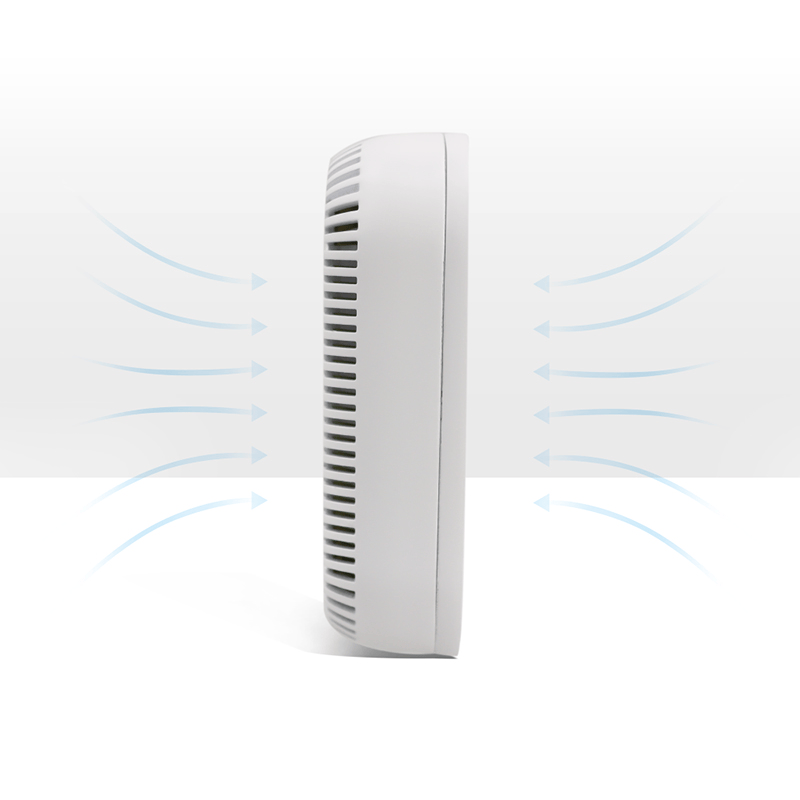

※ Optimized air channel and independent gas chamber, effectively isolating oil fumes and dust, maintaining smooth air flow and extending service life.

Product Parameters
Operating Voltage DC 3.0 V
Output Interface 1×2.4G Wireless Output
Alarm Setpoint CH₄: 8%LEL, CO: 200×10⁻⁶ (volume fraction)
Detected Gases

Methane, Carbon Monoxide

Measuring Range CH₄: 0~16%LEL, CO: (0–1000)×10⁻⁶ (volume fraction)
Error CH₄: ±3%LEL, CO: ±50×10⁻⁶ (volume fraction)
Alarm Mode Audible and visual alarm
Sampling Method Natural Diffusion
Communication Method 4G-CAT1
Operating Temperature -10°C~55°C
Operating Humidity ≤93%RH (non-condensing)
Dimensions 90mm×90mm×24mm
Material ABS
Installation Method Wall-mounted / Ceiling-mounted
Executive Standard GB 15322.2-2019
