Product Description：

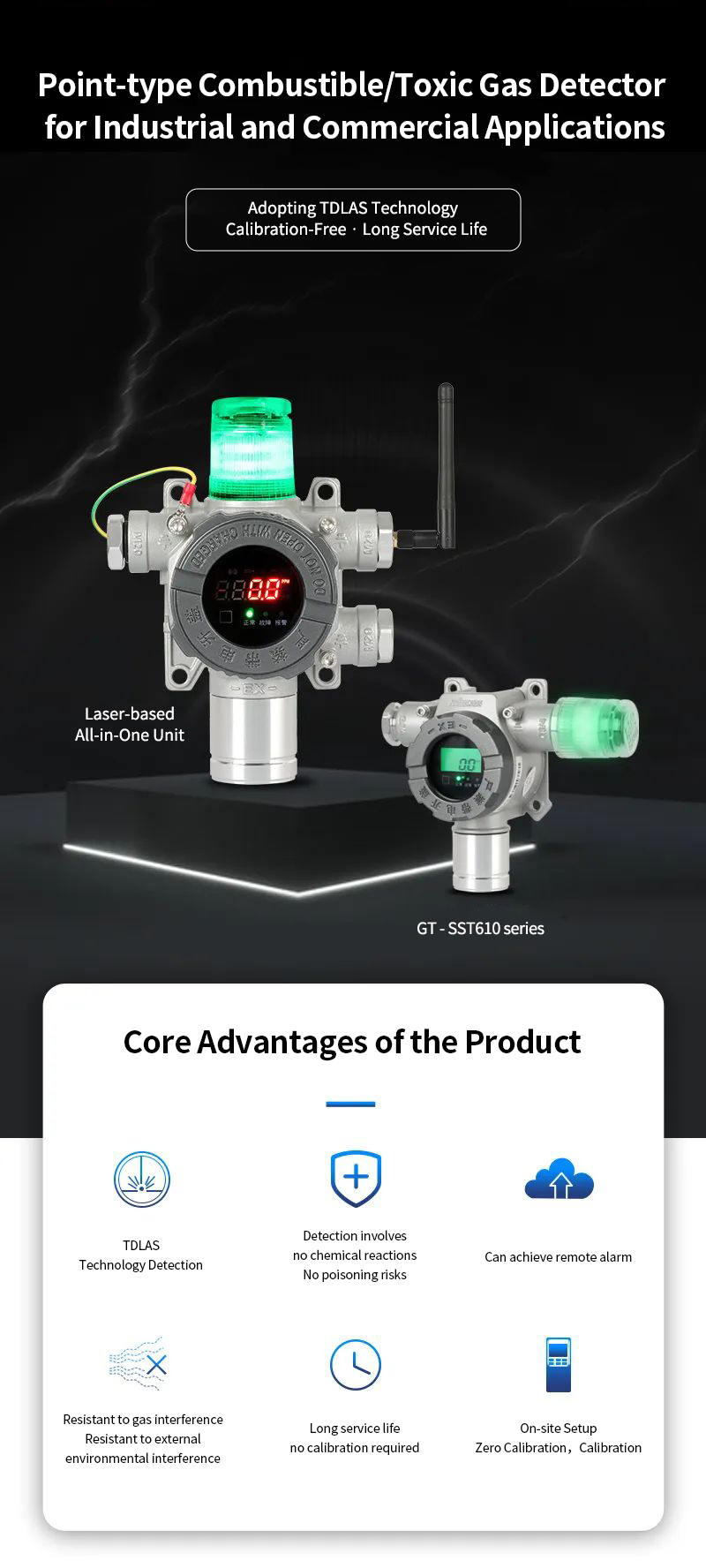

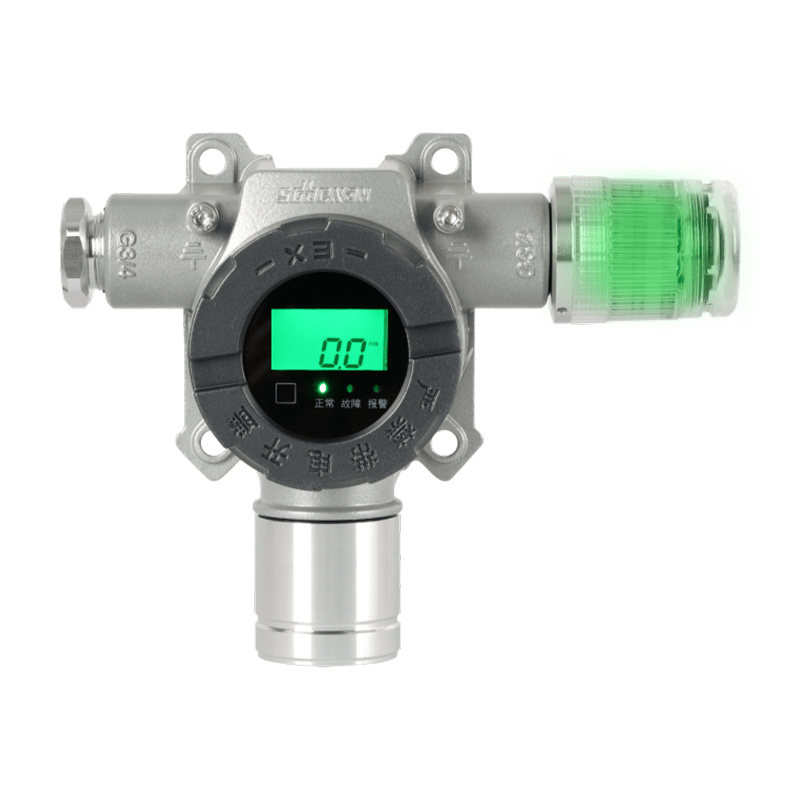

The GT-SST610LCD/A-E two-bus laser-type point combustible gas detector for industrial and commercial use continuously monitors methane gas within the lower explosive limit range in industrial environments. It converts gas concentration and system information into digital signals, which are then transmitted to the gas alarm controller system for identification, display, and processing.
Product Features：
※ It adopts TDLAS technology for detection, featuring fast response speed and high sensitivity.
※ It has specificity for the monitored gas and is not interfered with by other gases.
※ The optoelectronic chip adopts a hermetic seal and is not affected by the external environment.
※ There is no chemical reaction in the detection process, so no poisoning will occur.
※ It adopts adaptive sensor hardware and software algorithms, featuring calibration-free operation.
※ Long service life.
※ LCD on-site concentration display, LED on-site status indication.
※ The connected controller can perform zero calibration and calibration on it.
Product Parameters：
| Rated Voltage | DC 36V | |
| Detected Gases | Methane | |
| Detection Principle | laser | |
| Response Time | T90≤30s | |
| Error | ±3%LEL | |
| Communication Method | M-BUS Two-Wire Bus | |
| Display Type | LCD | |
| Power Consumption | ≤1W | |
| Alarm Method | Indicator light + explosion-proof audible and visual alarm light | |
| Operating Temperature | -40°C~70°C | |
| Operating Humidity | ≤93%RH(No Condensation) | |
| Pressure Range | 86kPa~106kPa | |
| Installation Method | Fixed Bracket Type, Pipe-Mounted Type, Wall-Mounted Type | |
| Installation Thread | G3/4" Internal Thread | |
| Dimensions | 203mm×174mm×80mm | |
| Explosion-Proof Mark | Ex db ll C T6 Gb/Ex tb lllC T80°C Db | |
| IP Rating | IP66 | |
| Executive Standard | GB 15322.1-2019 | GB/T 3836.1-2021 |
Product Details：
Exhibition:
