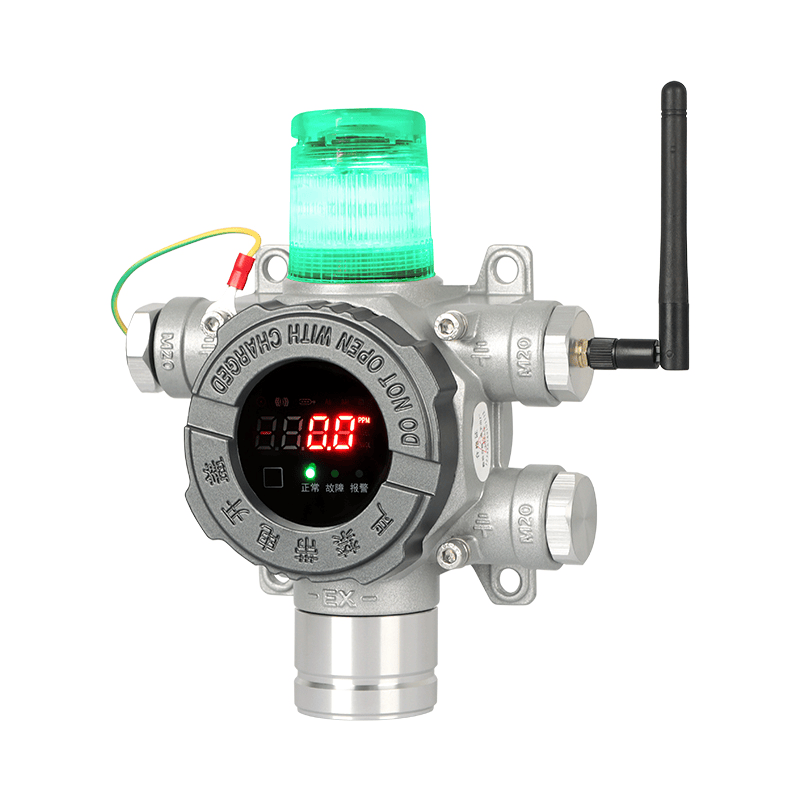

GT-SST613D/A-E Point-Type Combustible Gas Detector for Industrial and Commercial Use

EXW
$100.00-101.00 /PCS
China
No. 169, Helin Street, Gaoxin District, Jinan of China
86 13752227265
Online Contact
Favorite
Product Introduction

Product Description:

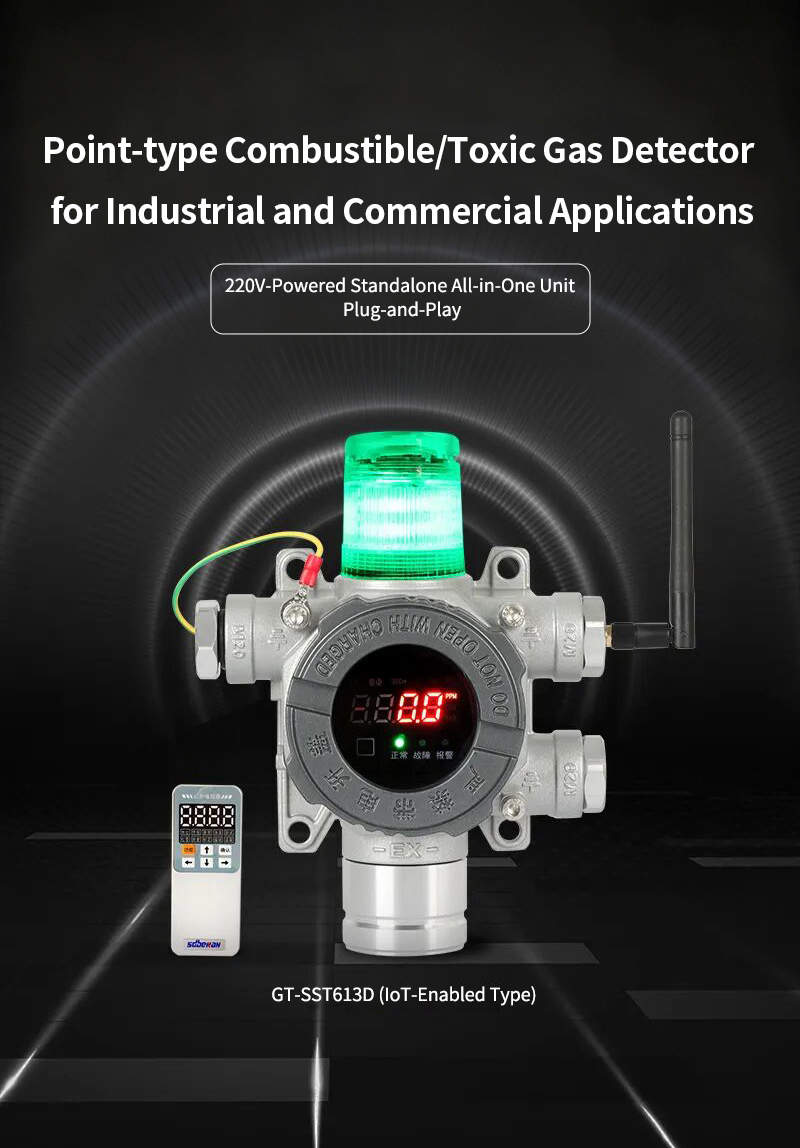

The GT-SST613D/A-E fixed-point combustible gas detector for industrial and commercial applications continuously monitors methane gas within the lower explosive limit (LEL) range in industrial and commercial environments. It is a standalone all-in-one unit powered by 220V, featuring plug-and-play functionality. As standard, it is equipped with a gas concentration display module and an explosion-proof audible-visual alarm light, with an optional IoT data upload module available.



Product Features:

※ It adopts TDLAS technology for detection, featuring fast response speed and high sensitivity.

※ It has specificity for the monitored gas and is not interfered with by other gases.

※ The optoelectronic chip adopts a hermetic seal and is not affected by the external environment.

※ There is no chemical reaction in the detection process, so no poisoning will occur.

※ It adopts adaptive sensor hardware and software algorithms, featuring calibration-free operation.

※ Long service life.

※ Wide-viewing-angle nixie tube concentration display and LED on-site status indication.

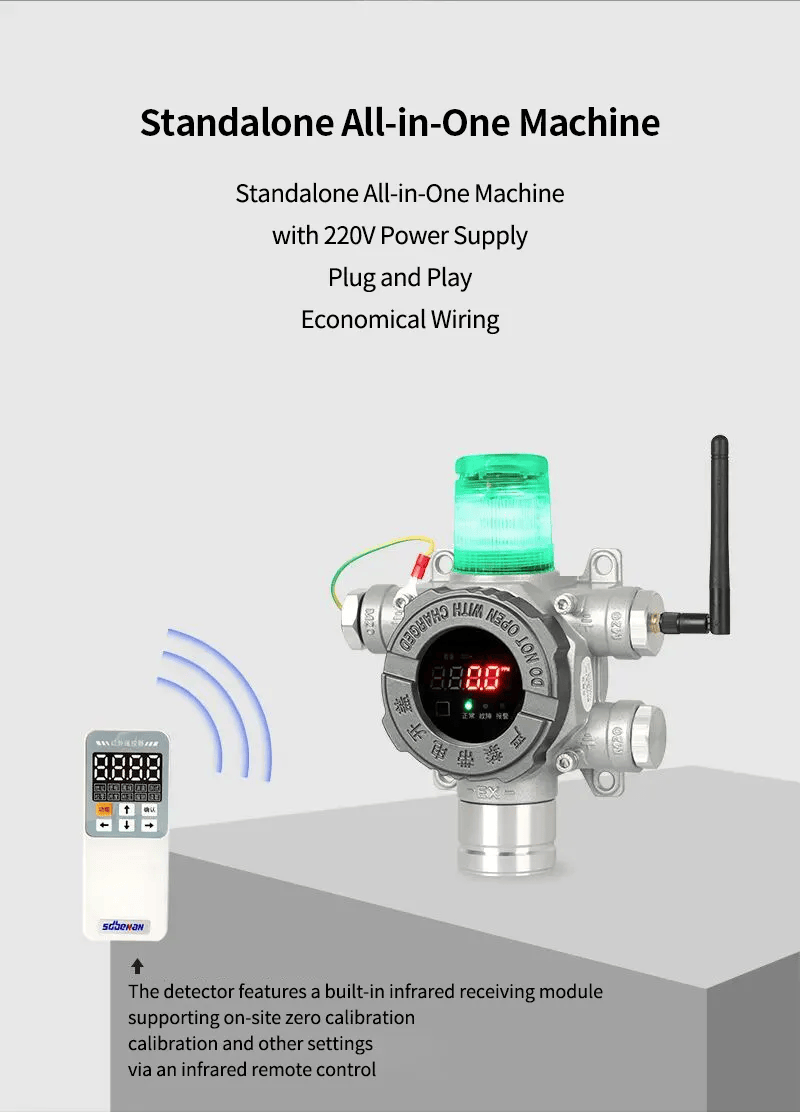

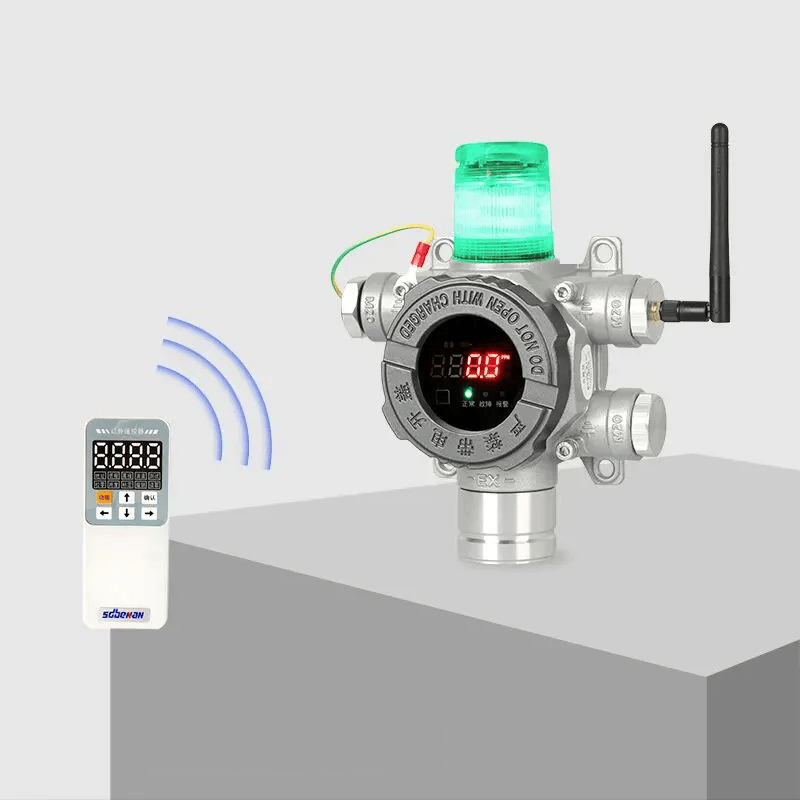

※ The detector is equipped with a built-in infrared receiving module, allowing parameters to be set via an infrared remote control.

※ IoT-enabled type, capable of remotely pushing alarm notifications via WeChat, platforms, mobile apps, and other channels.

Technical Parameters
Rated Voltage DC 24V
Detected Gases Methane
Detection Principle laser
Response Time T90≤30s
Error ±3%LEL
Communication Method 4G-CAT1
Display Type LED Nixie Tube
Power Consumption ≤3W
Alarm Method Indicator light + explosion-proof audible and visual alarm light
Operating Temperature -40°C~70°C
Operating Humidity ≤93%RH(No Condensation)
Pressure Range 86kPa~106kPa
Installation Method Fixed Bracket Type, Pipe-Mounted Type, Wall-Mounted Type
Installation Thread M20×1.5
Dimensions 212mm×148mm×75mm
Explosion-Proof Mark Ex db ll C T6 Gb/Ex tb lllC T80°C Db
IP Rating IP66
Executive Standard GB 15322.1-2019 GB/T 3836.1-2021
