Three-phase epoxy-resin vacuum-cast dry-type distribution transformer — oil-free and self-extinguishing, suitable for installation directly at the load center. Low partial discharge and low noise, F/H-class insulation, moisture-resistant (re-energizable after shutdown without pre-drying), maintenance-free, and capable of forced-air (AF) overload with full temperature protection. Available in SCB12 / SCB14 / SCB18 generations across 10 / 20 / 35 kV classes. Ideal for high-rise buildings, hospitals, data centers, metro, commercial complexes, renewable plants and indoor substations.
1/2

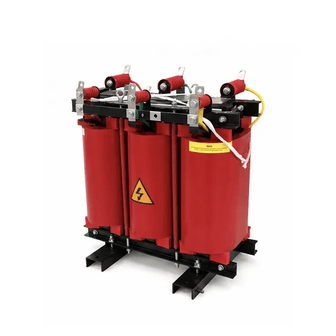

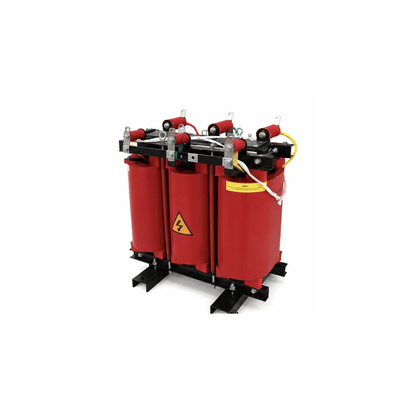

SCB Series Cast-Resin Dry-Type Transformer (10 kV)
EXW
$10,474.00-19,093.00 /Set
China
No. 388 Quanshun Road, Xiaolan Economic and Technological Development Zone, Nanchang County, Nanchang City, Jiangxi Province
18379983771
+86 13060075509
597108072@qq.com
Product Introduction
Technical Parameters
Key Specifications
Installation Indoor
Generations SC(B)12 / SC(B)14 / SC(B)18
Connection Group Dyn11 / Yyn0 (Yd11 on 35 kV)
Insulation Class F / H
Cooling AN (natural) / AF (forced-air)
