A three-phase oil-immersed distribution transformer for indoor and outdoor service, with high full-load efficiency and strong overload / high-temperature tolerance. Offered in S22 / S20 / S13 generations; the newer low-loss cores cut no-load loss for better lifecycle energy cost, suiting outdoor substations and capacities across the distribution range.
1/2

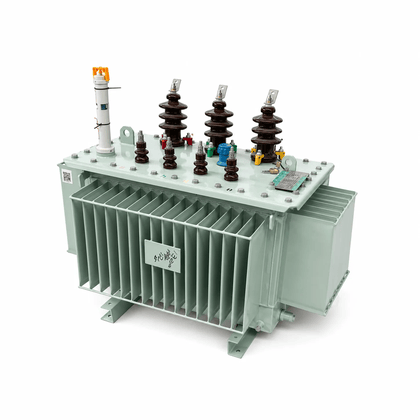

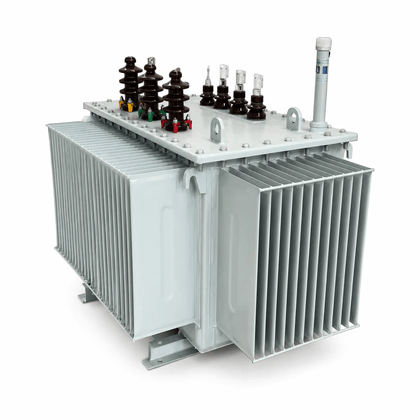

Oil-Immersed Distribution Transformer (S22 / S20 / S13)
EXW
$8,728.00-23,785.00 /Set
China
No. 388 Quanshun Road, Xiaolan Economic and Technological Development Zone, Nanchang County, Nanchang City, Jiangxi Province
18379983771
+86 13060075509
597108072@qq.com
Product Introduction
Technical Parameters
Key Specifications
Installation Indoor / outdoor
Generations S22 / S20 / S13
Capacity Range 30 – 4000 kVA
HV / LV Voltage 6 – 10 / 0.4 kV
Short-circuit Impedance 4 – 8 %
