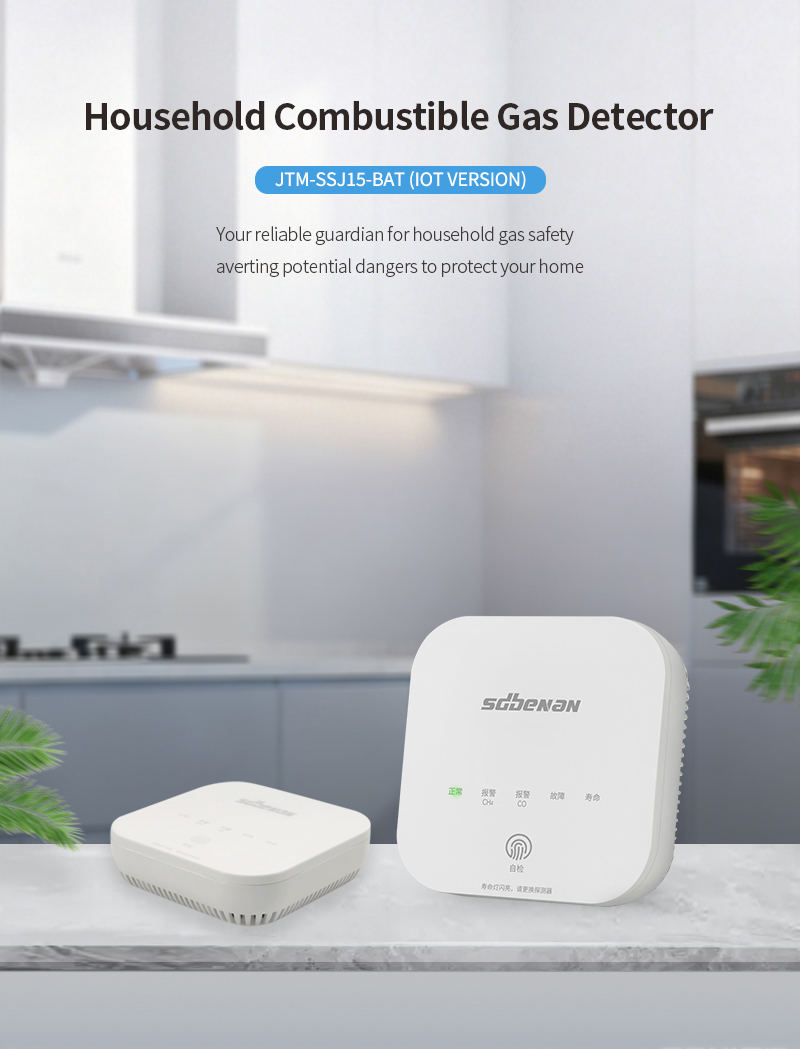

JTM-SSJ15-BAT-E Household Combustible Gas Detector

Negotiable
China
No. 169, Helin Street, Gaoxin District, Jinan of China
86 13752227265
+008613752227265
Online Contact
Favorite

Product Introduction

Product Overview:

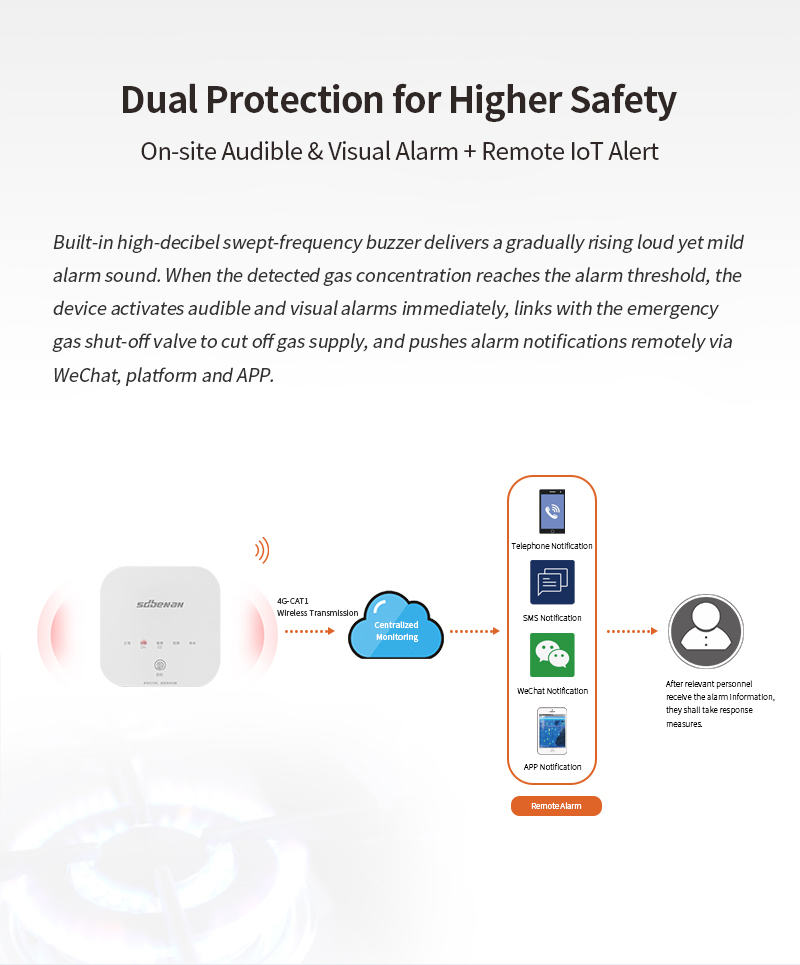

The JTM-SSJ15-BAT-E Household Combustible Gas Detector can monitor the on-site gas concentration in real time and determine whether the gas concentration exceeds the alarm threshold. If the threshold is exceeded, the device emits audible and visual alarm signals and pushes alarm notifications via WeChat, platforms, and apps. It is suitable for monitoring methane and carbon monoxide in households.




Product Features:

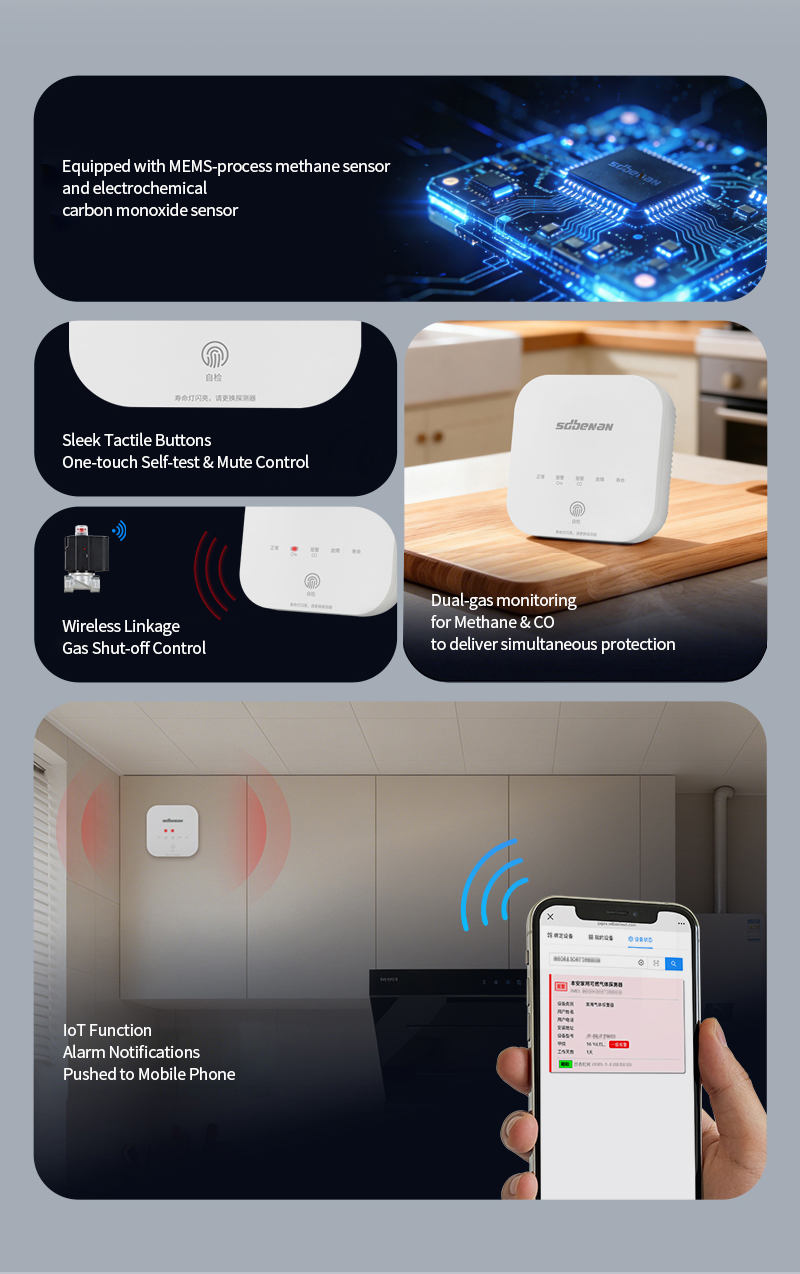

※ Imported sensor with high integration, strong reliability, linear concentration output, high sensitivity, and strong resistance to poisoning/interference.

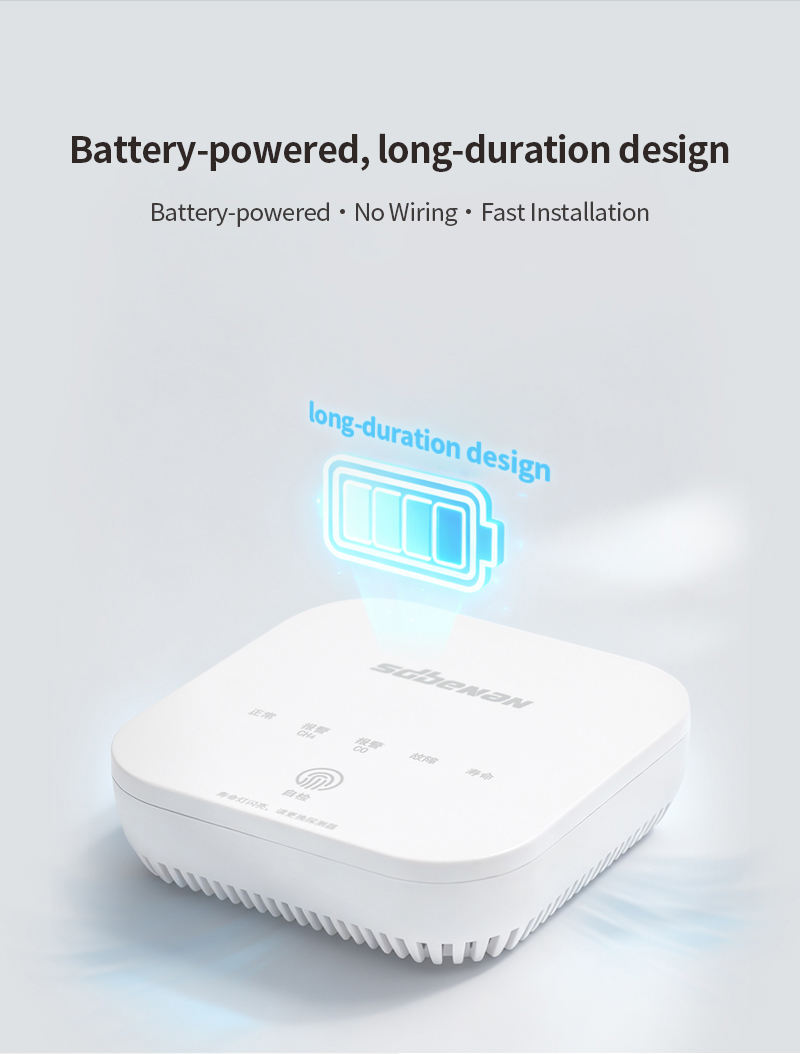

※ Lithium battery powered with extended battery life.

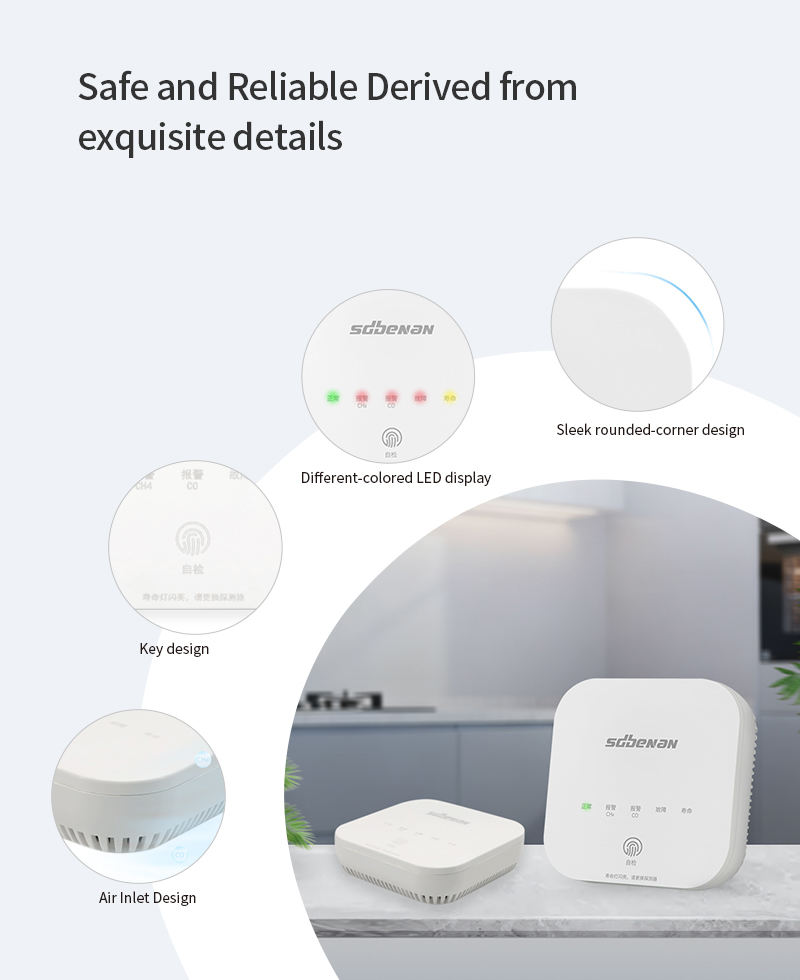

※ High-brightness focused LED indicators displaying device status in different colors.

※ Wireless valve control and low power consumption for simple operation and maintenance.

※ Remote alarm capability. Easy phone binding and timely alarm notifications via WeChat.

※ Unique airflow channels and independent gas chamber for better isolation from oil fumes and dust, maintaining smooth airflow and extending service life.

Product Parameters

Working Voltage DC3.0V
Output Interface One set of 2.4G wireless output
Alarm Set Value CH4: 8%LEL, CO: 200×10-6 (volume fraction)
Detection Gas

Methane, Carbon Monoxide

Range CH4: 0~16%LEL, CO: (0-1000)×10-6 (volume fraction)
Error CH4: ±3%LEL, CO: ±50×10-6 (volume fraction)
Alarm Method Audible and visual alarm
Sampling Method Free diffusion type
Communication Method 4G-CAT1
Working Temperature -10°C~55°C
Working Humidity ≤93%RH (non-condensing)
Dimensions 90mm×90mm×24mm

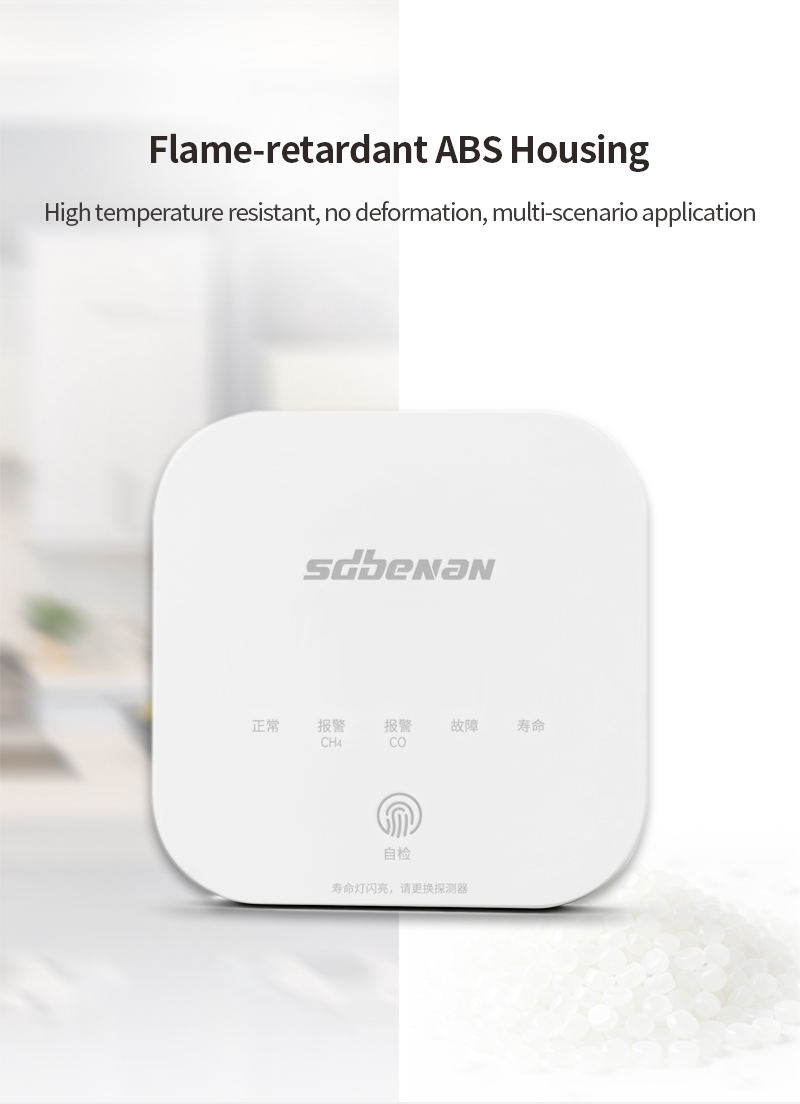

Material ABS
Installation Method Wall-mounted / Ceiling-mounted
Execution Standard GB 15322.2-2019

Product Details



Our Advantages



Fully Automated Production Workshop
It is equipped with multiple fully automated SMT production lines and fully automated coating lines, as well as fully automated testing equipment at key nodes of the production lines. This setup not only ensures the consistency and stability of products but also significantly improves production capacity and efficiency.
