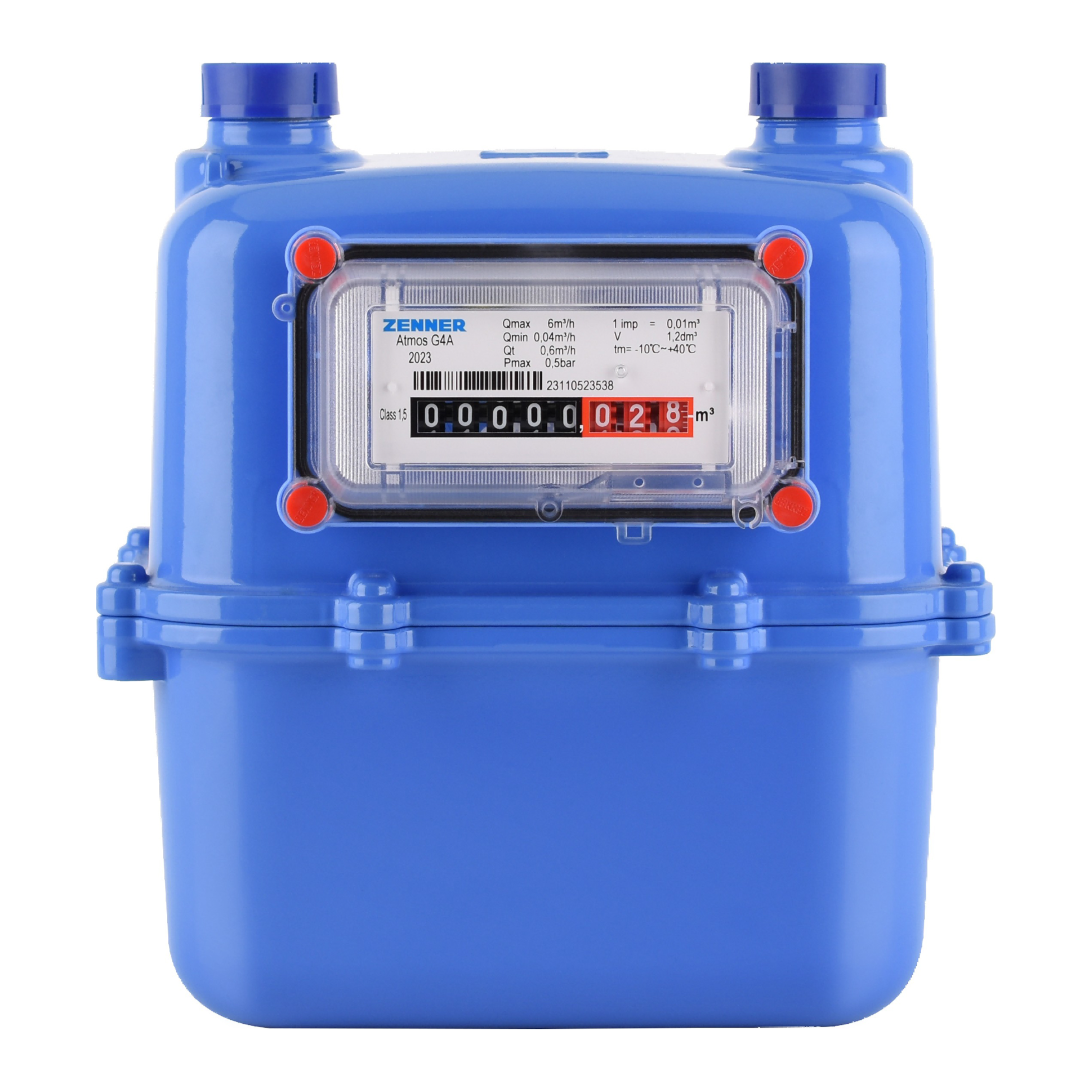

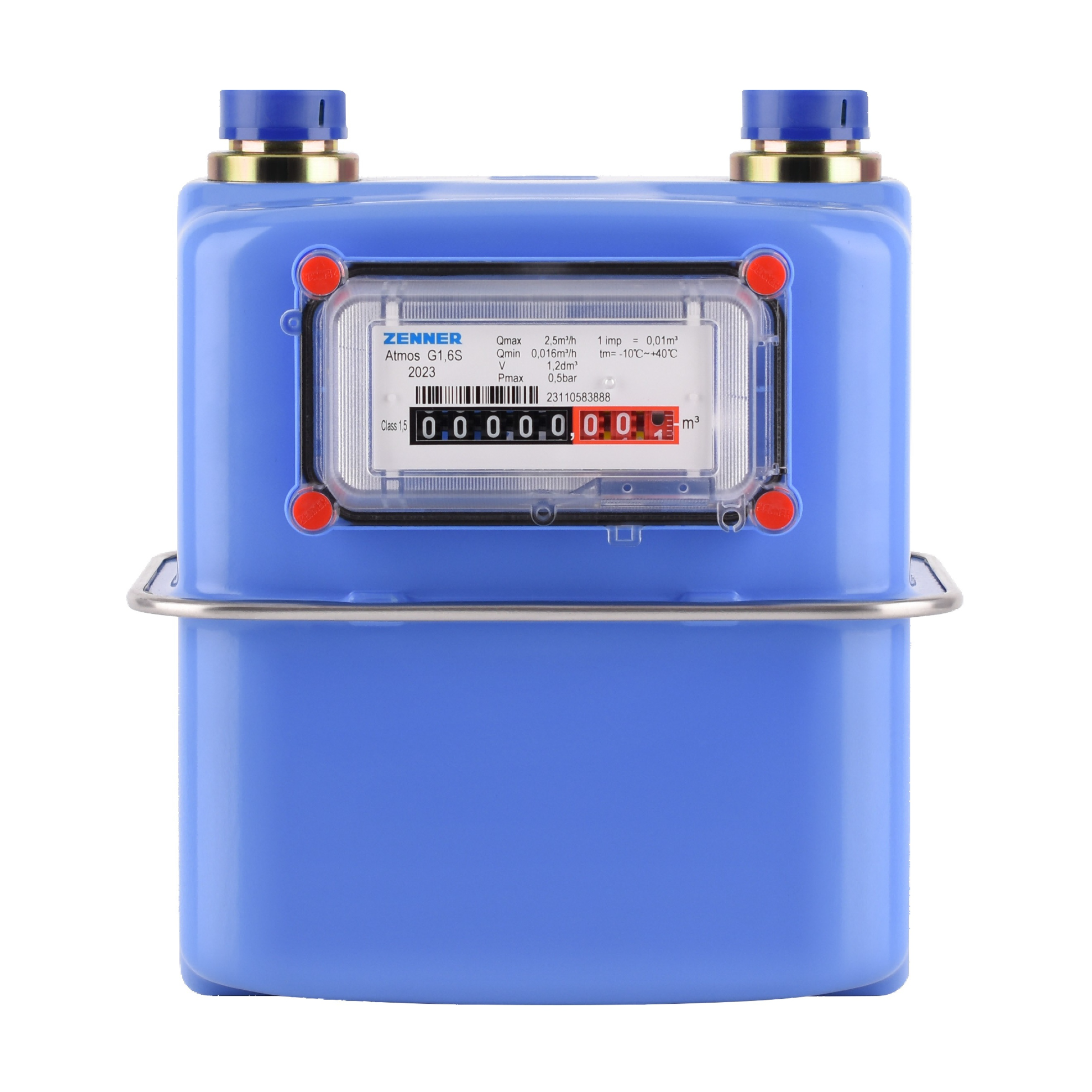

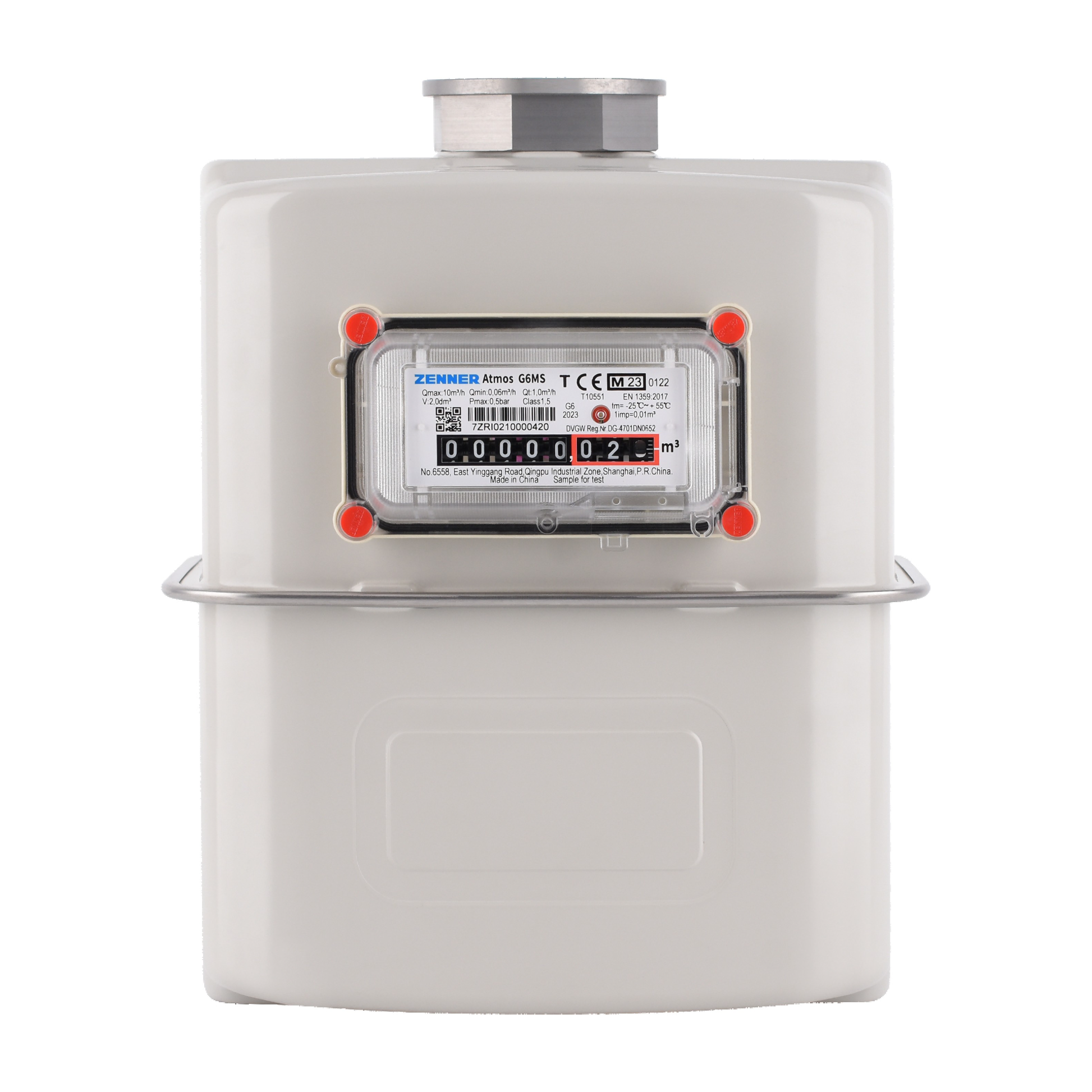

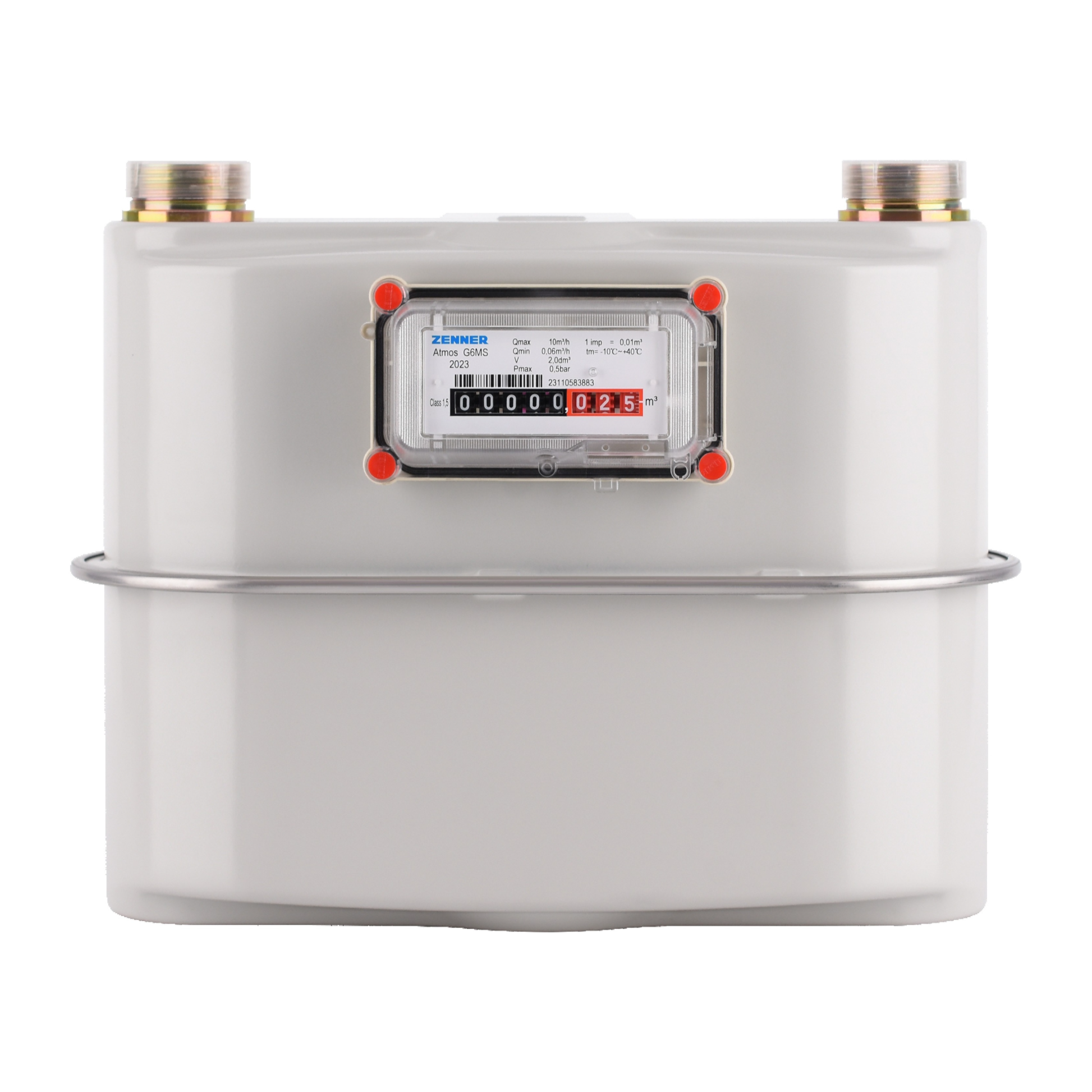

Diaphragm gas meter G1.6|G2.5|G4|WG2.5|G4L|WG6M

Advanced technical details and modern engineering materials make the Atmos diaphragm gas meter a high-grade measuring instrument. The Diaphragm gas meter is available in sizes G1.6, G2.5 ,G4 and G6. The meter is characterized by precise measurements, constant measuring stability all long life and high reliability. Atmos diaphragm gas meter is resistant to corrosion due to the application of high-grade materials.

The gas meter is suitable for various gas media. The integrated calibration system coordinates the movement of the valves in relation to the optimum gas flow.

The excellent linearity of the error curve is guaranteed even at low flow rates. Due to the optimum rotating characteristics of the valves, the Qmin value remains stable.

Atmos® diaphragm gas meter meets the requirements of the EN1359:2017 and OIML R137-1 (2012) standards.

Features
EN1359:2017-8000h durability test approved
Approved in accordance with MID by NMi
Patented Valve redundancy system ensure the lifetime stability
Galvanized steel powder-coated housing for maximum corrosion resistance
Fire resistant (HTB) up to 0.1 bar according to EN1359
Starting flow< 1 Im3/h
Wide testing range 0.016m3/h to 6m3/h(WG2.5S)
Long-term stability due to apply of high-quality diaphragms
