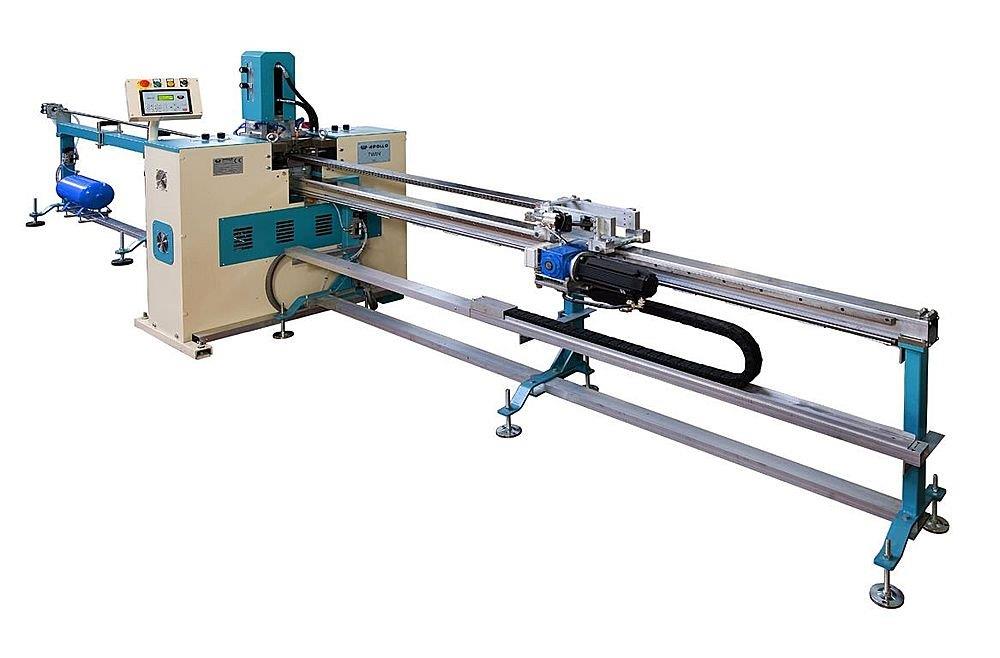

TWIN PUNCHING LINE

The TWIN machine is a punching line composed of oil-dynamic units with two opposed-heads and adjustable stroke, capable to punch section bars up to a length of 9000 mm. The punching speed, the very fast feeder and the qui......The TWIN machine is a punching line composed of oil-dynamic units with two opposed-heads and adjustable stroke, capable to punch section bars up to a length of 9000 mm. The punching speed, the very fast feeder and the quick-lock tools grants a growth of productivity. It carries out dead or through holes on two pipes at the same time. It works with single head too and punches both ends of the tubing. It is able to punch simultaneously 4 holes on two sides of a 3 metres long tube. The feeder is equipped with Brushless motors, carriage speed 60m/min, precision 0,2 mm on the last hole and opposed core support. On request: automatic modular load/unload storehouse with manipulator and pneumatic or mechanical swarf expulsion with collector. Besides high-precision and good material quality, Apollos punching lines do have excellent quality-to-price ratio! More information...
