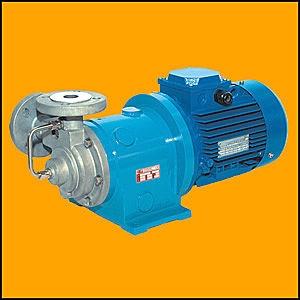

materials wetted parts aisi 316 bearings sic / special carbon bracket wcb special alloy: hastelloy, incoloy, titanium technical data : flow rates up to a 10m3/h total delivery heads up to 110m temperature ratings up to 20......materials wetted parts aisi 316 bearings sic / special carbon bracket wcb special alloy: hastelloy, incoloy, titanium technical data : flow rates up to a 10m3/h total delivery heads up to 110m temperature ratings up to 200c pressure rating up to pn 25 construction horizontal peripheral pump for general applications permanent magnet drive system separation of liquid chamber/atmosphere by means of an isolation shell synchronous drive transmitted by inner magnet and outer magnet system self-balancing impeller sintered silicon carbide bearings / special carbon two executions: close coupled standard,close coupled for high temperature ( up to 350c) applications pumping acids, hydrocarbon, diathermic oils, liquid gases, dangerous fluids, explosive, toxic. further material available if request various materials from the standard special constructions
