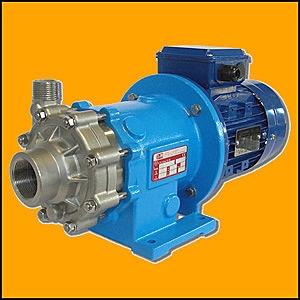

magnetic drive centrifugal pump

materials wetted parts aisi 316 bearings sic / special carbon bracket wcb special alloy: hastelloy, incoloy, titanium technical data : flow rates up to a 45m3/h total delivery heads up to 35m temperature ratings up to 200......materials wetted parts aisi 316 bearings sic / special carbon bracket wcb special alloy: hastelloy, incoloy, titanium technical data : flow rates up to a 45m3/h total delivery heads up to 35m temperature ratings up to 200c pressure rating up to pn 16 construction horizontal centrifugal pump for general applications permanent magnet drive system separation of liquid chamber/atmosphere by means of an isolation shell synchronous drive transmitted by inner magnet and outer magnet system sintered silicon carbide bearings / special carbon bearing frame and close coupled execution applications pumping acids, hydrocarbon, diathermic oils, liquid gases, dangerous fluids, explosive, toxic. further material available if request various materials from the standard special constructions
