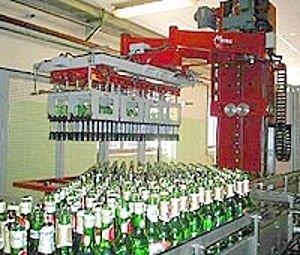

multiple grip manipulator for glass bottles

the frame construction of the loader is made of a robust pillar with a vertically mobile trolley. the trolley carries 2 swivelling arms with a loading head mounted on them. the head consists of 8 sections, each equipped w......the frame construction of the loader is made of a robust pillar with a vertically mobile trolley. the trolley carries 2 swivelling arms with a loading head mounted on them. the head consists of 8 sections, each equipped with bell-shaped grippers. an infeed bottle table (conveyor) with railing and pressure limiters is also a part of the loader. when enough full bottles gather on an accumulation table, they are picked together in the whole layer and loaded into prepared crates. the machines equipment also includes an infeed crate conveyor, accumulation table, which forms crates into loading pattern, and loading frame. application: loading glass bottles into plastic crates. advantages: very robust and compact machine for high-performance loading. minimum space requirements. performance: up to 36.000 bottles per hour.
