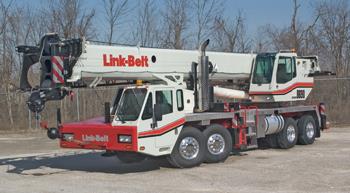

Hydraulic Truck Cranes HTC-8690

38’ – 140’ (11.6 m - 42.7 m) 5-section boom Optional 35’ – 58’ (10.7 m - 17.7 m) two-piece offsettable fly Optional two 16 (4.9 m) extensions plus 58 (17.7 m) two-piece offsettable fly 237’ (72.2 m) maximum tip h......38’ – 140’ (11.6 m - 42.7 m) 5-section boom Optional 35’ – 58’ (10.7 m - 17.7 m) two-piece offsettable fly Optional two 16 (4.9 m) extensions plus 58 (17.7 m) two-piece offsettable fly 237’ (72.2 m) maximum tip height Overall dimensions: Height: 11’ 7” (3.53 m) Width: 8’ 6” (2.59 m) Length: 45’ 7” (13.89 m) 62.3 mph (99.4 km/hr) travel speed 19’ 3” (5.87 m) wheel base Front tires - 445/65R22.5 Rear tires – 12R22.5 Caterpillar C-13 12.5L 445 hp (331.8 kW) diesel engine ZF AS-Tronic automated 12-speed transmission 24’ (7.32 m) outrigger spread, 20’ 6” (6.25 m) outrigger base 16,880 lbs (7 656.6 kg) maximum winch line pull 480 fpm (146.3 m/min) maximum winch line speed KEY FEATURES:Excellent transportability — can be configured to meet some of the toughest transportation laws Both fly options feature four offset positions of 2°, 15°, 30° and 45° "Stow n go" outrigger pontoons are easily secured for transport Next generation operators cab with improved visibility and ergonomics Pull-out CabWalk for easy access to and from the operators cab Integral air conditioning — optional Large swing out engine hood doors for ease of service Full length aluminum fenders Job site travel with counterweight
