LZZBJ9-35/250W2G type current transformer is epoxy resin cast fully enclosed pillar structure, suitable for indoor 50Hz, rated voltage 35kV and below power lines and equipment for current, electric energy measurement and electrical protection use.
1/1

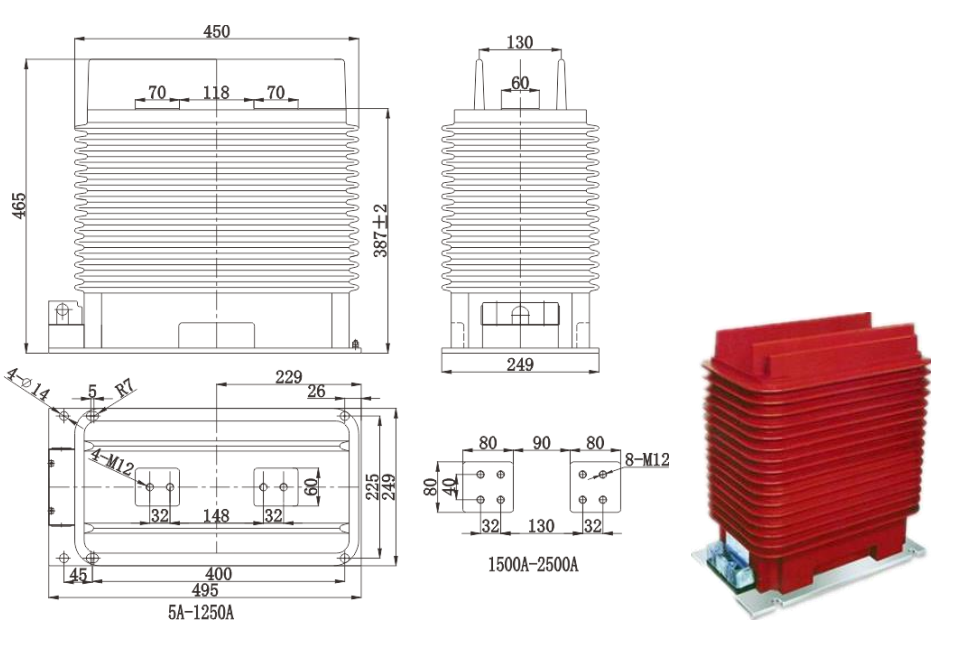

LZZBJ9-35/250W2G type current transformer
Negotiable
China
3032, Building 6, No. 97 Changping Road, Shahe Town, Changping District, Beijing (Changping Demonstration Park)
010-57785002
Product Introduction

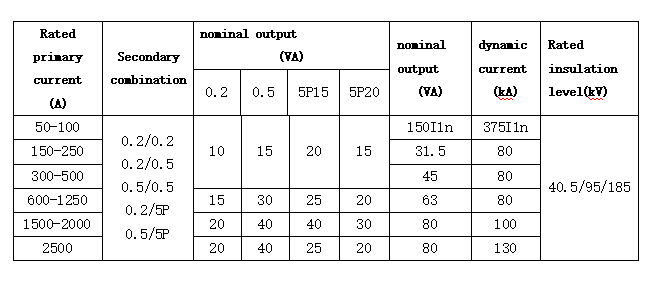

technical parameters
technical parameters The product meets the standard :GB/T20840.1 and GB/T20840.2
Rated secondary current :5A or 1A
Rated frequency :50Hz
Ambient temperature :-5℃~+40℃
