Overview This type of voltage transformer is an indoor ring resin cast semi-insulated fully enclosed product, suitable for indoor 50Hz, rated voltage 20kV and below the power system power supply voltage, electric energy measurement and relay protection use.
1/1

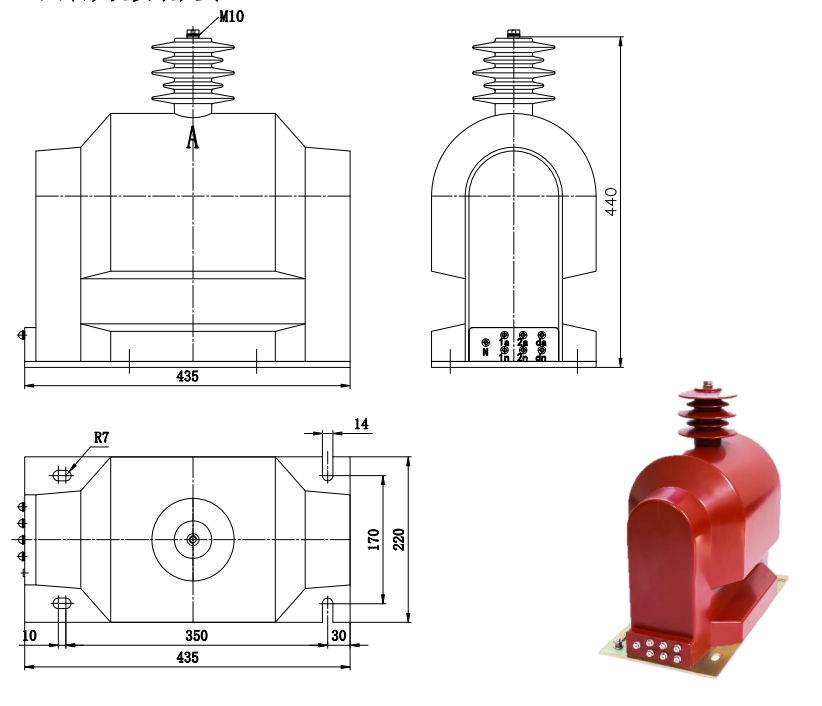

JDZX9-15, 20 type voltage transformer
Negotiable
China
3032, Building 6, No. 97 Changping Road, Shahe Town, Changping District, Beijing (Changping Demonstration Park)
010-57785002
Product Introduction

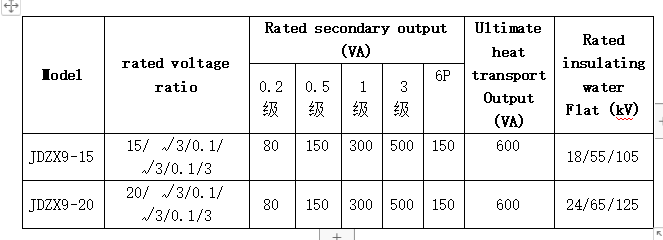

technical parameters
The product meets the standard :GB/T20840.1 and GB/T20840.3
Ambient temperature :-5℃~+40℃
Rated frequency :50Hz
Pollution grade :Ⅱ
