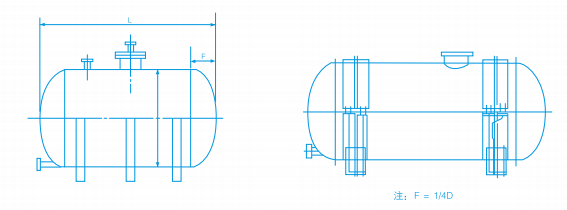

Containers, A4 grade pressure containers and transport tanks (2)
D	2000			2200			2400			2600			2800			3000
M	L	N₁	N₂	L	N₁	N₂	L	N₁	N₂	L	N₁	N₂	L	N₁	N₂	L	N₁	N₂
9
10	3540	2	4
11	3850	2	4
12	4170	2	4	3540	2	4
15	5130	3	4	4330	2	4	3750	2	4
18	6080	3	4	5120	2	4	4410	2	4
20	6720	3	4	5650	3	4	4850	2	4	4220	2	4	3740	2	4			4
25	8310	4	4	6960	3	4	5960	2	4	5160	2	4	4560	2	4	4060	2	4
30				8280	4	4	7060	3	4	6100	3	4	5370	2	4	4770	2
35							8170	3	4	7050	3	4	6180	2	4	5480	2
40							9270	4	4	7990	3	4	6990	3	4	6200	3
50										9870	3	4	8620	3	4	7600	3
60													10240	3	4	9010	3
70																10430	3
80																11850	3
N₁ is the number of horizontal container supports, N₂ is the number of vertical container legs, volume, pipe port internal parts and the number of supports can be arbitrarily designed.
