Electrical performance specifications (STC *)

Component Model

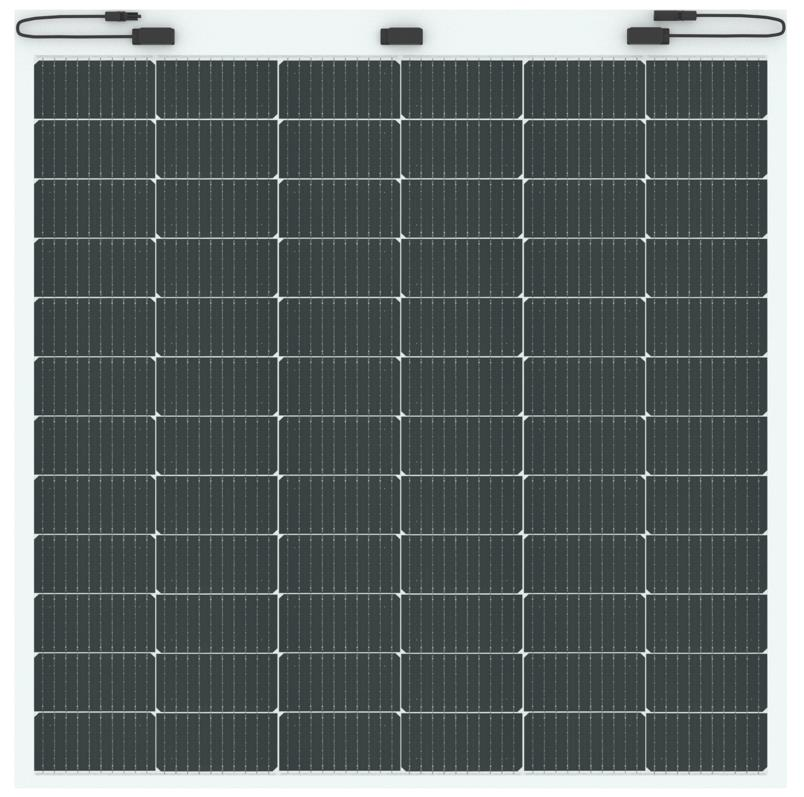

ZKFN B1000A-265

Peak power

PMPP

[W]

265

Power tolerance

0 to + 3%

[W]

0 to 5W

Peak voltage

VMPP

[V]

42.41

Peak current

IMPP

[A]

6.19

Open circuit voltage

Voc

[V]

49.9

Short-circuit current

Isc

[A]

6.41

Maximum fuse current rating

-

[A]

20

Maximum system voltage

IEC/UL

[V]

1000V DC(IEC)

Electrical performance specifications (NMOT *)

Component Model

ZKFN B1000A-265

Peak power

PMPP

[W]

212

Peak voltage

VMPP

[V]

39.49

Peak current

IMPP

[A]

4.25

Open circuit voltage

Voc

[V]

46.24

Short-circuit current

Isc

[A]

4.39

Temperature coefficient

Temperature coefficient (PMPP)

[%/℃]

-0.37

Temperature coefficient (Voc)

[%/℃]

-0.28

Temperature coefficient (Isc)

[%/℃]

0.05

Nominal operating temperature NOCT

℃

45±2 ℃

Mechanical specifications

Battery Specifications

Single crystal PERC 182mm * 182mm

Component Dimensions

1200*1146*1.8mm;1244*1190*1.8mm (perforated)

Component thickness

1.8mm (without junction box)

Component Weight

2.9kg/m²

Output line

4mm ², wire length 450mm (can be customized according to customer requirements)

Connector

MC4 compatible

Junction box

IP68

Back plate color

Black/White

Application specifications

Maximum system voltage

DC1000V

Power tolerance

0 ~ +5W

Working temperature

-40 ℃ ~ +85 ℃

Maximum fuse current rating

20A

Static load

Snow 2400PA, wind 2400PA

Packaging Information

Mode of transport

Container Size

Quantity (Pieces)

Quantity (per Torr)

Container

40HQ

2520

70

Flatbed trailer

13 m

2800

70

Flatbed trailer

17.5 m

3220

70
