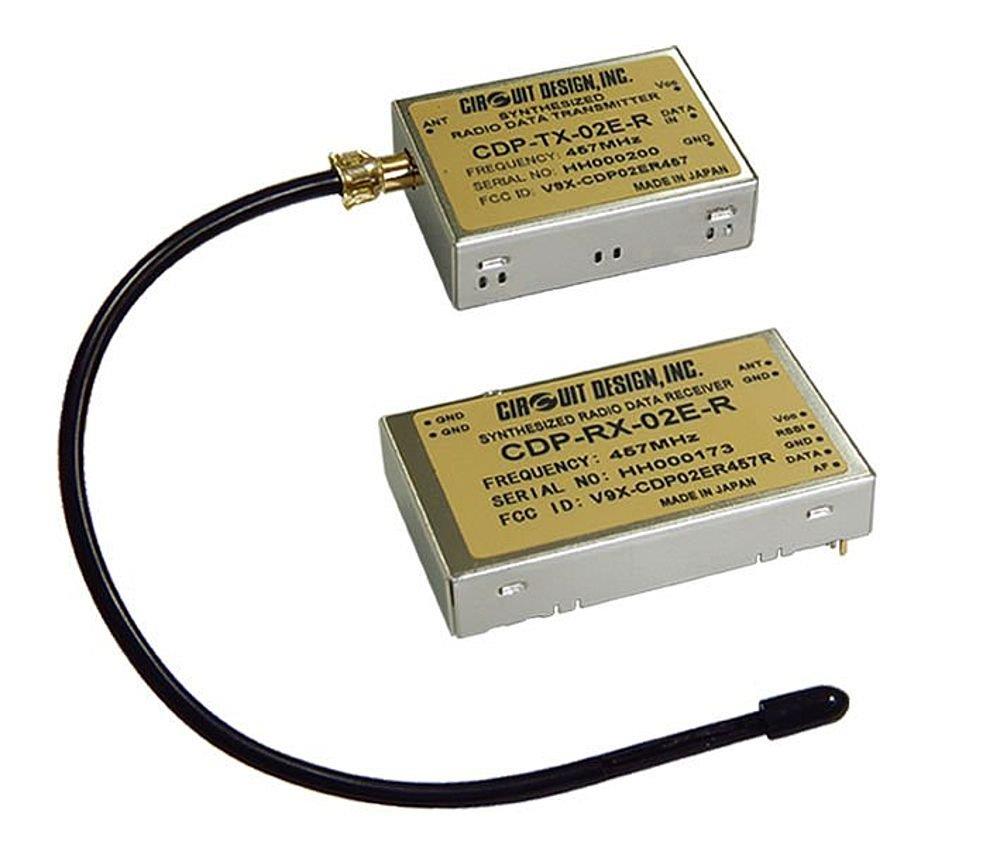

FCC Part 90 Narrow Band Radio Transmitter / Receiver for Industrial Use

Circuit Design Inc. has developed and released the CDP-TX-02E-R / CDP-RX-02E-R radio modules for the US market. The modules are designed for embedding in industrial equipment. The EU version of the modules released earlie......Circuit Design Inc. has developed and released the CDP-TX-02E-R / CDP-RX-02E-R radio modules for the US market. The modules are designed for embedding in industrial equipment. The EU version of the modules released earlier has been very well received in the European market. The CDP-TX-02E-R / CDP-RX-02E-R include nearly all the parts necessary for radio transmission in a small and robust shielding case, making it possible for the user to reduce the development time of radio equipment significantly. With narrow band FSK modulation, the modules are very resistant to noise. The receiver also has high receive sensitivity, offering stable operation even in weak electric fields. The modules achieve a line-of-sight communication distance of more than 600 m with only 10 mW power. While the modules are small, they feature high frequency characteristics that guarantee high reliability, as well as resistance to mechanical vibration and shock. In Europe, they are widely used in applications that place emphasis on safety and reliability, such as industrial remote control. Now, in response to requests from many users, we have developed a model for the US. The US model (457 MHz) and European model (434 MHz) are pin compatible, enabling users to develop products for both American and European markets with a common interface1. The equipment has received wireless authorization, obtaining CE authorization for the European model and FCC authorization for the US model (Transmitter: FCC Part 902, Receiver: Part 15 equipment authorization). With strong blocking performance and selectivity, the modules offer high reliability and stable operation even in environments with a lot of noise.
