Product Overview:
Designed with reference to advanced domestic and international hydraulic models, using sophisticated hydraulic design software, the pump boasts excellent hydraulic performance, high reliability, and stability.

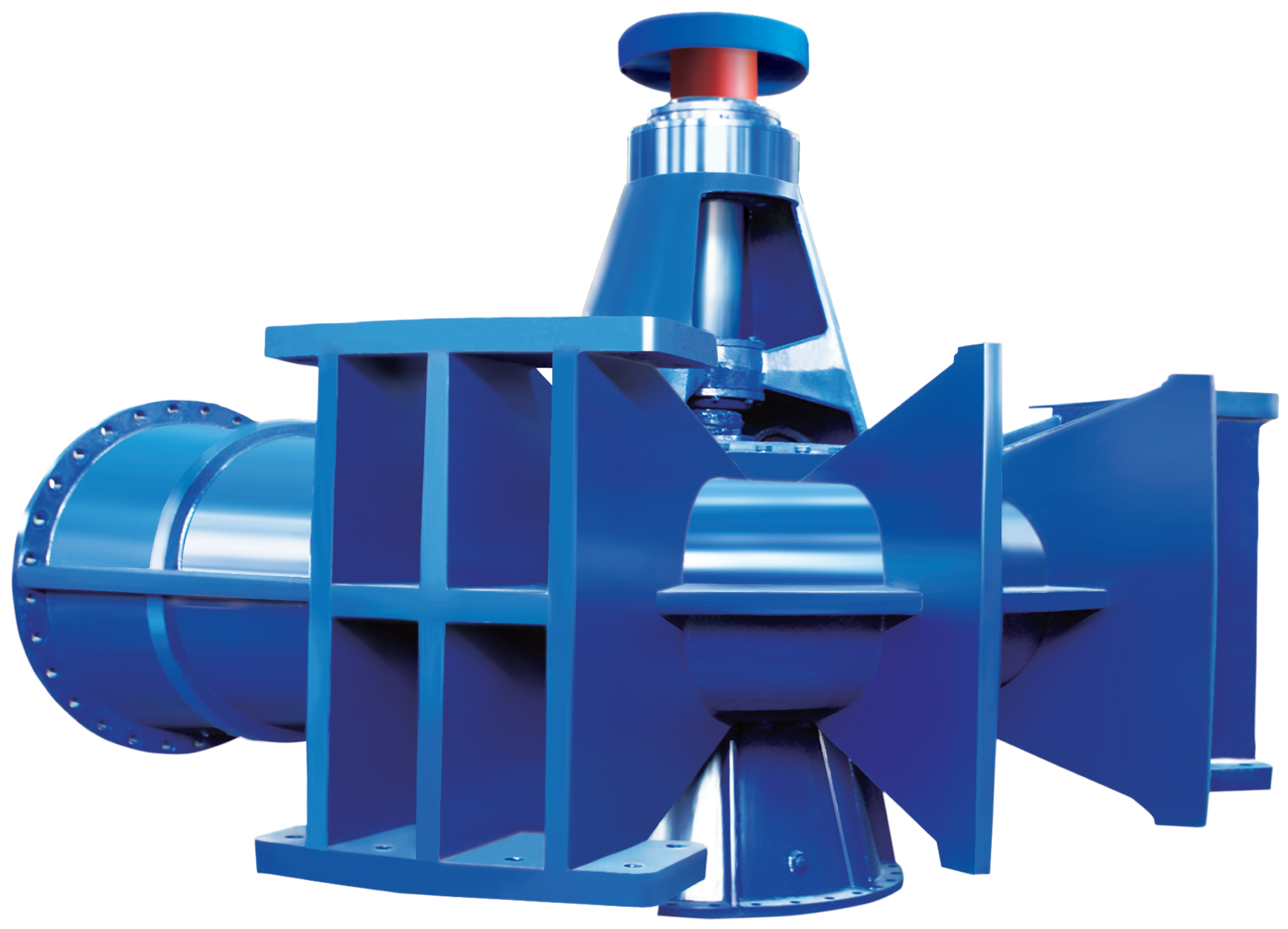

The pump has a vertical structure with axial suction and horizontal discharge.
The pump unit offers two installation options: single foundation and double-layer foundation. The double-layer foundation can include a transmission shaft to meet installation height requirements.
The shaft seal uses packing sealing, which is easy to install and maintain, requiring no external flushing water.
The bearings are rolling bearings with grease lubrication, and the design allows either the pump or the motor to bear the axial force.
When viewed from the motor end, the impeller rotates counterclockwise.
Technical Parameters:
Q: 2800~21,600m³/h
H: 17~70m
t: <50℃
P: ≤10bar
