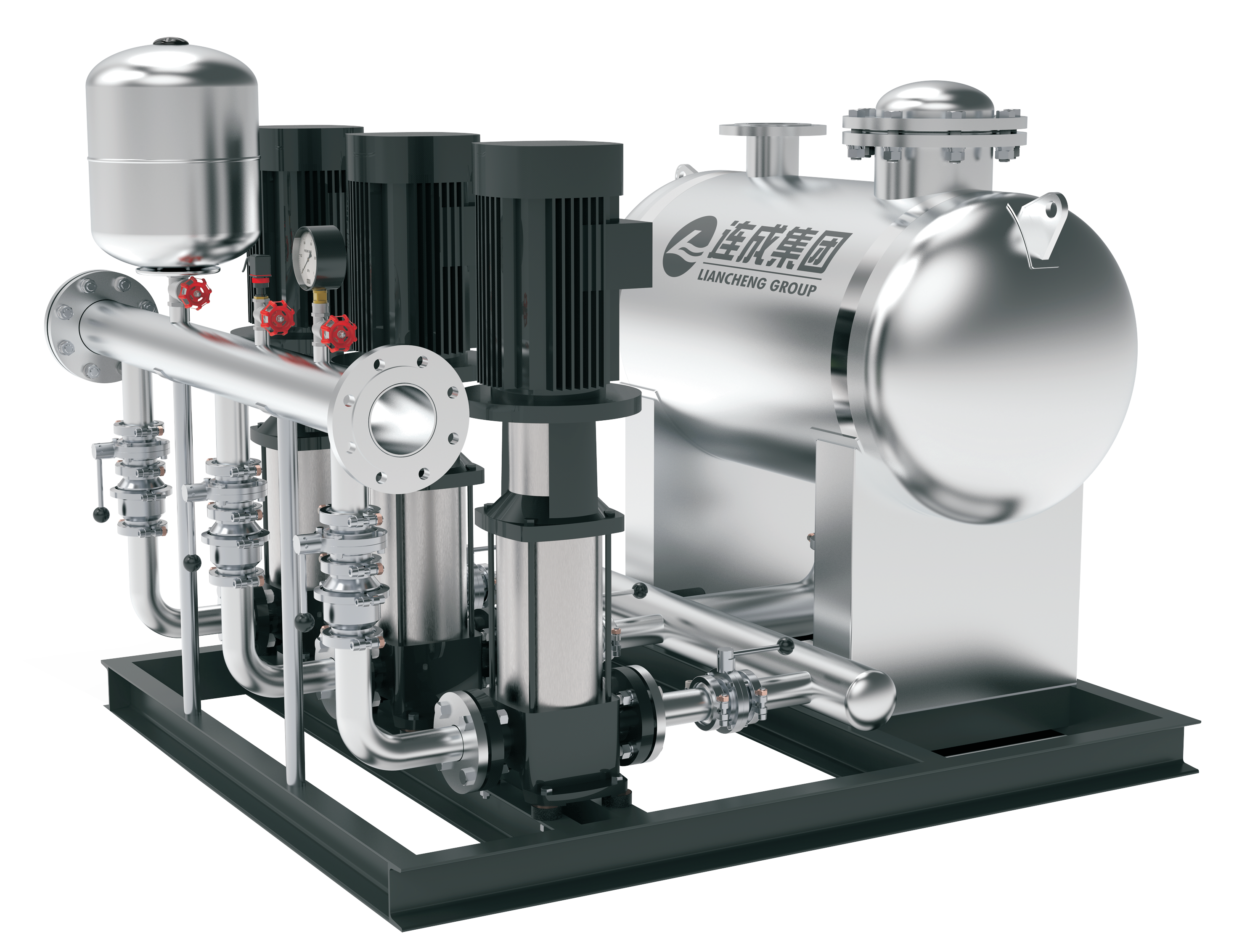

Product Overview:
Utilizes municipal water pressure for superimposed water supply, reducing pump power to achieve lower energy consumption.
Vacuum suppressor effectively prevents negative pressure in the pipeline; fully enclosed operation, no secondary pollution.
The use of a steady flow tank mitigates pressure from high water demand during peak periods, ensuring strong supply continuity.
Fully automatic operation, no need for manual supervision; safe and stable water supply with no pipeline pressure fluctuations.
Overpressure protection to prevent pipe bursts; pumps serve as mutual backups with automatic cyclic operation.
Automatic pump addition or reduction, first-on-first-off principle.
Technical Parameters:
Ambient Temperature: 5℃~40℃
Medium Temperature: 4℃~70℃
Relative Humidity: ≤85% (at 20±5℃)
Power Supply Voltage: AC380V (+5%, -10%), 50Hz
Flow Range: 0~5000m³/h
Pressure Range: 0~2.5MPa
Control Power: ≤110kW
Pressure Adjustment Accuracy: ≤±0.01MPa
