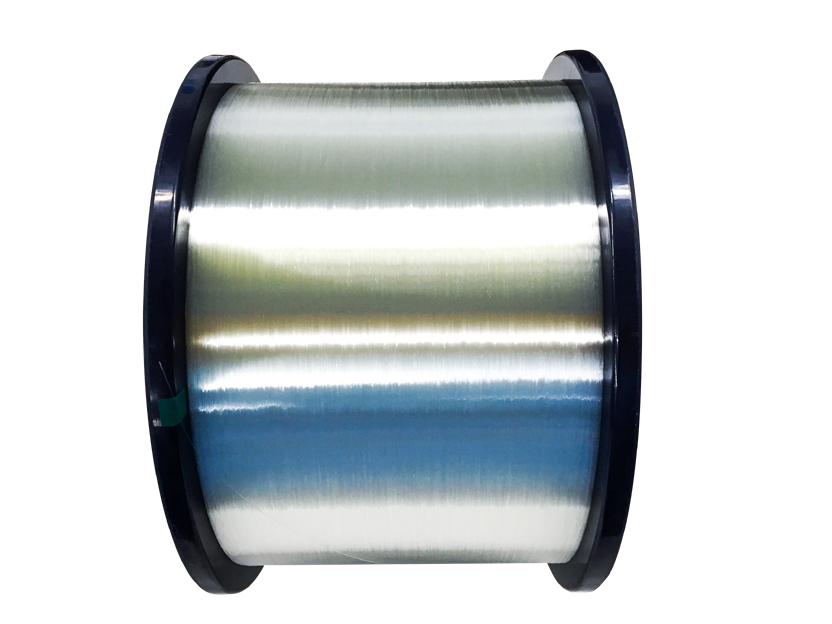

Low-loss Single-mode Fiber LL-SMF

Negotiable

Located Region:

China

Address:

18th Floor, Building B, Special Information Port Building, Kefeng Road, Central District, High-tech Zone, Nanshan District, Shenzhen

Biz Consulting:

15574644746

E-mail:

huyq@sdgi.com.cn

Online Contact

Favorite

Product Features

Ultra-low attenuation coefficient at 1550nm.

Extremely low sensitivity to hydrogen.

Lower polarization mode dispersion (PMD) coefficient: link design value of 0.04ps/√km.

Low attenuation in the 1460nm window: <0.25dB/km.

Adopts advanced preform manufacturing process.

Performance Advantages

Supports larger spans in practical applications, reducing the number of optical amplifiers, extending the distance between regenerators, accommodating faster transmission rates, and allowing flexible configuration of various network components, effectively reducing network construction costs.

Ensures low attenuation in the 1383nm wavelength region even after hydrogen aging, enhancing fiber performance and lifespan.

Extends the polarization mode dispersion-limited distance, lowering the cost of regeneration relays.

Enables the use of low-cost lasers and filters over a wider bandwidth.

Increases the pumping efficiency of C-band Raman amplifiers.

Higher purity, better geometric characteristics, and improved consistency.

Optical characteristics (uncabled fiber)

Wavelength (nm)	Maximum attenuation value (dB /km)
1310nm	0.32
1383nm	0.32
1490nm	0.21
1550nm	0.19
1625nm	0.21
* After hydrogen aging	Other values are provided as required by the customer

Attenuation wavelength characteristics

Wavelength range (nm)	Reference wavelength λ(Rm)	Attenuation difference (dB/km)
1285-1330	1310	≤ 0.03
1525-1575	1550	≤ 0.02

Decay point discontinuity

Point discontinuity maxima at 1310nm and 1550nm wavelengths 0.05dB

Macro bending loss

Number of circles	Diameter (mm)	Wavelength (nm)	Additional attenuation (dB)
100	50	1310	≤ 0.05
100	50	1550	≤ 0.05
100	60	1625	≤ 0.05

Cut-off wavelength

Optical cable cutoff wavelength (λcc)≤ 1260Onm

Mode field diameter

Wavelength (nm)	MFD(μm)
1310	8.7-9.5
1550	9.6-10.8

Dispersion

Wavelength (nm)	Dispersion (ps/ √KM)
1285-1340	≤ \| 3.4 \|
1550	≤ 18.0
1625	≤ 22.0
Zero dispersion wavelength (λ₀)	1300-1324nm
Zero dispersion slope (S ₀)	≤ 0.090ps(nm² ·km)

Polarization mode dispersion (PMD)	(ps/√KM)
Fiber link value (M = 20,Q = 0.01%)	≤ 0.04
Single-disc fiber maximum	≤ 0. 1

Geometric characteristics

Geometric dimensions of glass
Claddings diameter	125.0±0.7μm
Core/cladding concentricity error	≤ 0.5μm
Clad out-of-roundness	≤ 0.7%
Fiber warp (radius)	≥ 4m

Coating geometry
Coating diameter	245±7μm
Coating/cladding concentricity error	≤ 12.0μm
Coating out-of-roundness	≤ 6.0%

Mechanical characteristics

Screening test

Whole disc fiber tensile screening tension> 0.75Gpa (109kpsi) 1.0% strain

Tensile strength

Dynamic tensile strength (0.5m gauge length):

Aged and unaged median, >3.8GPa (550kpsi)

Aging environment: 85℃, 85% RH, 30 days

Dynamic fatigue parameters

Dynamic fatigue parameters (unaged and aged) N_d ≥ 20

Coating stripping performance

Coating peel force (unaged and aged):

Average: 1.0N to 5.0N Peak: 1.3N to 8.9N

Aging environment

30 days, 85℃, relative humidity 85% RH

30 days, water immersion (23℃)

Environmental characteristics

Test item	Test conditions 1310/1550nm	Additional attenuation (dB/km)
Temperature cycle	-60℃ ~ +85℃	≤ 0.05
Immersion	23℃, 30 days	≤ 0.05
Dry heat	85℃, 30 days	≤ 0.05
Damp heat	85℃; 85% RH, 30 days	≤ 0.05

Typical parameter values

Typical zero dispersion slope	0.085ps(nm² ·km)
Effective group refractive index @ 1310nm	1.467
Effective group refractive index @ 1550nm	1.468
Effective group refractive index @ 1625nm	1.468
Rayleigh backscattering coefficient (1ns pulse width)	@1310nm - 79.4dB @1550nm - 81.7dB @1625nm - 82.5dB
Median dynamic tensile strength (after aging) 5.5Gpa (750kpsi) (Aging environment: 30 days, 85℃, 85% RH; 0.5m gauge length
