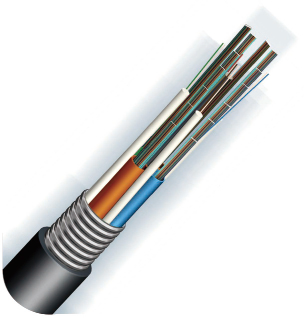

Loose Tube Stranded Optical Fiber Ribbon Cable GYDTA[S] (72-576 Cores)

Negotiable

Located Region:

China

Address:

18th Floor, Building B, Special Information Port Building, Kefeng Road, Central District, High-tech Zone, Nanshan District, Shenzhen

Biz Consulting:

15574644746

E-mail:

huyq@sdgi.com.cn

Online Contact

Favorite

Applicable Laying Methods: Overhead, Pipeline

Structural Features: Metal central strength member (phosphated steel wire); loose tube SZ bidirectional stranding; double-sided plastic-coated aluminum (steel) tape—polyethylene bonded outer sheath

Performance Features: Double-sided plastic-coated aluminum (steel) tape—polyethylene bonded sheath; excellent moisture resistance (excellent crush resistance)

Applicable Scope: Inter-office communication; metropolitan area network, access network

Number of optical cable cores	Number of optical fiber ribbon cores	Maximum number of fiber optic ribbons	Optical cable reference outer diameter (mm)	Reference weight of optical cable (kg/km)	Minimum bending radius		Allowable minimum tension (N)		Allowable minimum lateral pressure (N/100mm)
Number of optical cable cores	Number of optical fiber ribbon cores	Maximum number of fiber optic ribbons	Optical cable reference outer diameter (mm)	Reference weight of optical cable (kg/km)	Static	Dynamic	Short-term	Long term	Short-term	Long term
72-144	6	24	15.0	215	10 times outer diameter	20 times cable outer diameter	1500	600	1000	300
146-180	6	30	16.8	265
182-216	6	36	17.8	300
218-288	12	24	18.4	320
290-360	12	30	20.2	380
262-420	12	35	21.0	410
432	12	36	21.7	435
576	12	48	23.0	500
