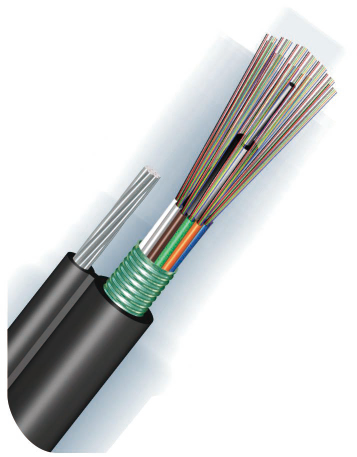

Loose Tube Stranded Figure-8 Optical Cable GYTC8S[A] (2-144 Cores)

Negotiable

SHENZHEN SDG INFORMATION CO., LTD.

Located Region:

China

Address:

18th Floor, Building B, Special Information Port Building, Kefeng Road, Central District, High-tech Zone, Nanshan District, Shenzhen

Biz Consulting:

15574644746

E-mail:

huyq@sdgi.com.cn

Online Contact

Favorite

Applicable Laying Methods: Self-supporting Overhead

Structural Features: Cable cross-section in a "figure-8" shape; steel strand suspension wire; double-sided plastic-coated corrugated steel tape—polyethylene bonded outer sheath

Performance Features: Steel tape armoring provides excellent crush resistance (aluminum tape structure offers excellent moisture resistance); certain bulletproof capability; simultaneous completion of cable and suspension wire saves time and cost

Applicable Scope: Long-distance communication, inter-office communication

Number of optical cable cores	Specification of steel strand	Optical cable reference outer diameter (mm)	Outer diameter of suspension wire (kg/km)	Reference height of optical cable (mm)	Reference weight of optical cable (kg/km)	Minimum bending radius		Maximum running tension (N)	Safe running tension (N)	Minimum breaking tension (N)	Allowable minimum lateral pressure (N/100mm)
						Static	Dynamic				Short-term	Long term
2-30	1x7-4.2	9.8	6.4	18.8	210	10 times cable outer diameter	20 times cable outer diameter	7000	3500	15550	2000	1000
32-36		10.3		19.3	230
38-60		10.7		19.7	230
62-72		11.3		20.3	255
74-96		12.9		21.9	290
98-120		13.8		22.8	342
122-144		15.2		24.2	378
