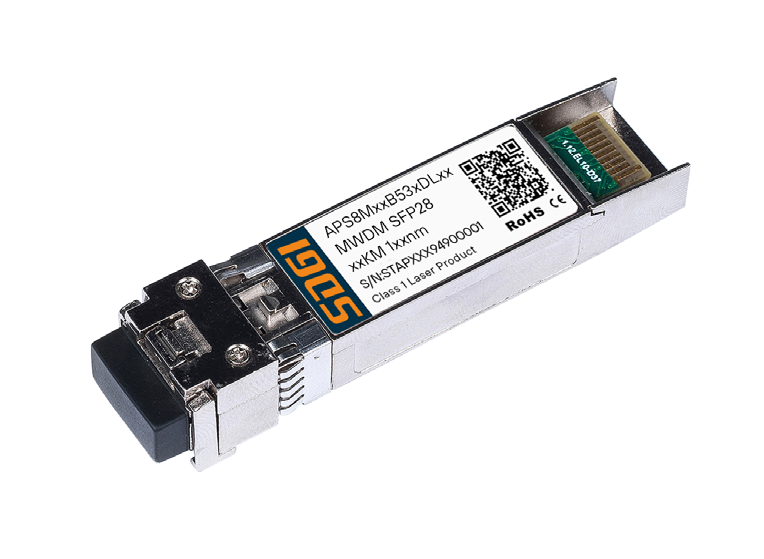

The 25G SFP28 MWDM complies with SFF-8431 and SFF-8432 protocols, supporting 25G Ethernet and CPRI/eCPRI fiber transmission. The maximum transmission distance over G.652 fiber is 10 kilometers. The module supports digital diagnostic functions and adheres to the SFF-8472 and SFF-8402 multi-source agreements.

Product Specifications

○ Package Type: SFP28

○ Transmission Rate: 25.78Gb/s

○ Wavelength: 1267.5nm, 1274.5nm, 1287.5nm, 1294.5nm, 1307.5nm, 1314.5nm, 1327.5nm, 1334.5nm, 1347.5nm, 1354.5nm, 1367.5nm, 1374.5nm

○ Device: DFB (with TEC) + PIN

○ Optical Power Range: 0~+6dBm

○ Receiver Sensitivity: -14dBm

○ Interface: LC

○ Operating Temperature Range: C/I

○ Transmission Distance: 10km

Application Scope

○ CPRI / eCPRI

○ 25G Ethernet
