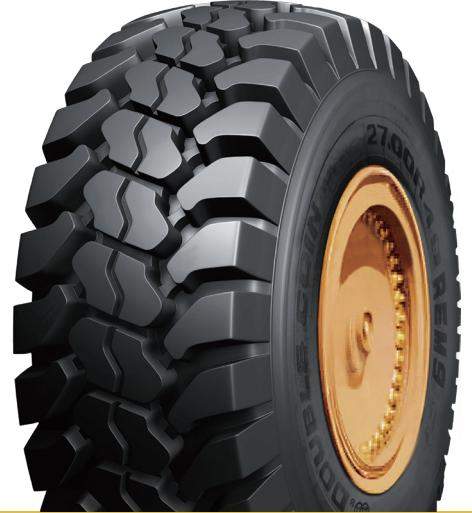

Earthmover/Haulage
Special compounds to withstand severe mining applications.
OTR radial design extends tyre life and promotes long-term retreadability.
A non-directional center rib tread pattern for enhanced off-the-road traction.
Deep tread depth provides extended tread life in a wide variety of conditions.
| TIRE SIZE | PATTEN | LOAD SYMBOL | SPEED (km/h) | OD (mm) | SW (mm) | TD (mm) | RIM | SINGLE TIRE LOAD (kg) | SINGLE TIRE PRESSURE (kPa) | LOAD INDEX | NOTE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 26.5R25 | REM9 | ★★ | 50 10 |
1782 | 672 | 55 | 22.00/3.0 | 11500 18500 |
450 575 |
193 209 |
E4 |
| 29.5R25 | REM9 | ★★ | 50 10 |
1905 | 750 | 60 | 25.00/3.5 | 14000 22400 |
450 575 |
200 216 |
E4 |
| 18.00R33 | REM9 | ★★ | 50 10 |
1865 | 498 | 53 | 13.00/2.5 | 10900 18500 |
650 800 |
191 209 |
E4 |
| 21.00R33 | REM9 | ★★ | 50 10 |
1964 | 565 | 55 | 15.00/3.0 | 14000 23600 |
650 800 |
200 218 |
E4 |
| 24.00R35 | REM9 | ★★ | 50 10 |
2160 | 652 | 69 | 17.00/3.5 | 18500 30750 |
650 800 |
209 227 |
E4 |
