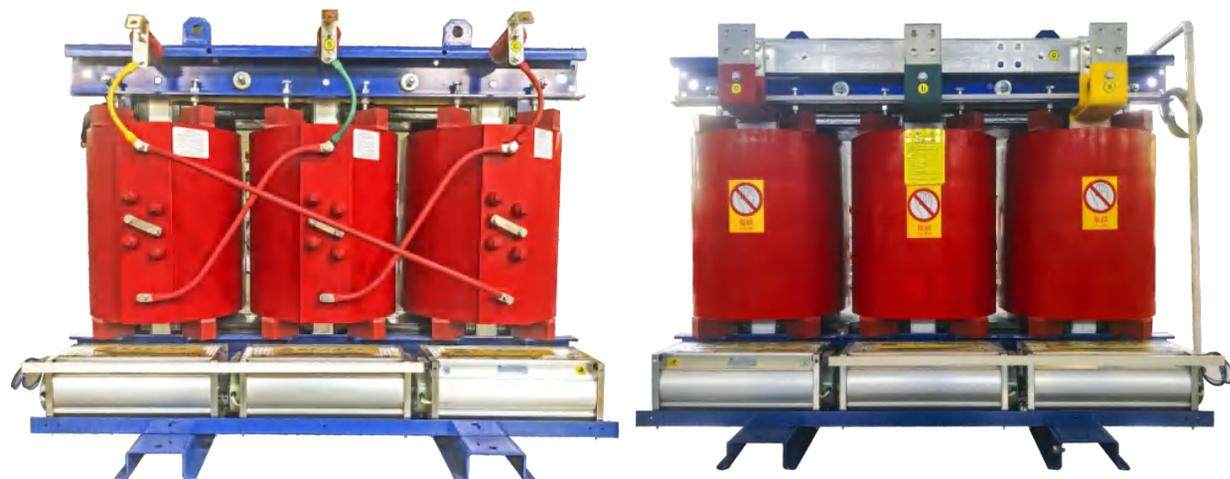

10kV class SC(B)18-NX1 series epoxy resin insulated double-winding non-excited voltage regulating distribution dry-type transformers

Negotiable

Chongqing Transformer Co., Ltd.

Located Region:

China

Address:

No. 19 Jinshan Avenue, Dongcheng Subdistrict Office, Tongliang District, Chongqing City

Biz Consulting:

+86 13896086879

E-mail:

419028326@qq.com

Online Contact

Favorite

Model	No-load Loss Po kW	Load Loss (Class F) Pk (120°C) kW	Load Loss (Class H) Pk (145°C) kW	Impedance Voltage Uk%	No-load current Io%	Noise LpAdB	Total Weight KG	Dimensions L x W x H			Center Distance
Rated HV	11, 10.5, 10, 6.6, 6.3, 6kV			Tapping range		±2×2.5		Connection Symbol		Dyn11 or Yyn0
Rated LV	0.4kV			Insulation grade		Class F or Class H		Insulation Level		LI75AC35/AC3
Model	No-load Loss Po kW	Load Loss (Class F) Pk (120°C) kW	Load Loss (Class H) Pk (145°C) kW	Impedance Voltage Uk%	No-load current Io%	Noise LpAdB	Total Weight KG	Body (mm)	Shell (mm)		A x B(mm)
SC18-30/10	≤0.105	≤0.64	≤0.685	4	1.8	46	315	590 x 450 x 600	1500	1200	1500	300 x 400
SC18-50/10	≤0.155	≤0.90	≤0.965		1.8	46	390	690 x 450 x 630	1500	1200	1500	400 x 400
SC18-80/10	≤0.21	≤1.24	≤1.33		1.6	46	490	770 x 450 x 690	1500	1200	1500	400 x 400
SC18-100/10	≤0.23	≤1.415	≤1.52		1.6	48	640	870 x 720 x 895	1500	1200	1500	550 x 660
SC18-125/10	≤0.27	≤1.665	≤1.78		1.2	48	750	930 x 720 x 910	1500	1200	1500	550 x 660
SC18-160/10	≤0.31	≤1.915	≤2.05		1.2	48	860	950 x 720 x 945	1500	1200	1500	550 x 660
SC18-200/10	≤0.36	≤2.275	≤2.44		1.2	48	1010	1050 x 880 x 920	1500	1200	1500	550 x 820
SC18-250/10	≤0.415	≤2.485	≤2.665		1.2	48	1200	1100 x 880 x 930	1500	1200	1500	550 x 820
SCB18-315/10	≤0.51	≤3.125	≤3.355		1.0	48	1260	1120 x 880 x 1000	1700	1300	1700	660 x 820
SCB18-400/10	≤0.57	≤3.59	≤3.85		1.0	48	1560	1140 x 880 x 1030	1700	1300	1700	660 x 820
SCB18-500/10	≤0.67	≤4.39	≤4.705	6	1.0	48	1700	1200 x 880 x 1030	1700	1300	1700	660 x 820
SCB18-630/10	≤0.75	≤5.365	≤5.76		0.9	50	1965	1330 x 1130 x 1000	1800	1350	1700	820 x 1070
SCB18-800/10	≤0.875	≤6.265	≤6.715		0.9	50	2250	1360 x 1130 x 1060	1800	1350	1700	820 x 1070
SCB18-1000/10	≤1.02	≤7.315	≤7.885		0.7	50	2630	1420 x 1130 x 1115	1900	1450	1900	820 x 1070
SCB18-1250/10	≤1.205	≤8.72	≤9.335		0.7	50	3230	1500 x 1130 x 1165	1900	1450	1900	820 x 1070
SCB18-1600/10	≤1.415	≤10.555	≤11.32		0.7	50	3985	1600 x 1130 x 1235	2000	1500	2200	820 x 1070
SCB18-2000/10	≤1.76	≤13.005	≤14.005		0.6	50	4780	1680 x 1130 x 1375	2200	1500	2200	820 x 1070
SCB18-2500/10	≤2.08	≤15.445	≤16.605		0.6	50	5750	1800 x 1130 x 1444	2200	1500	2200	1070 x 1070

Note: The size data in the items marked with "*" is subject to change without prior notice, and the final sizes are subject to the final assembly drawing provided.
