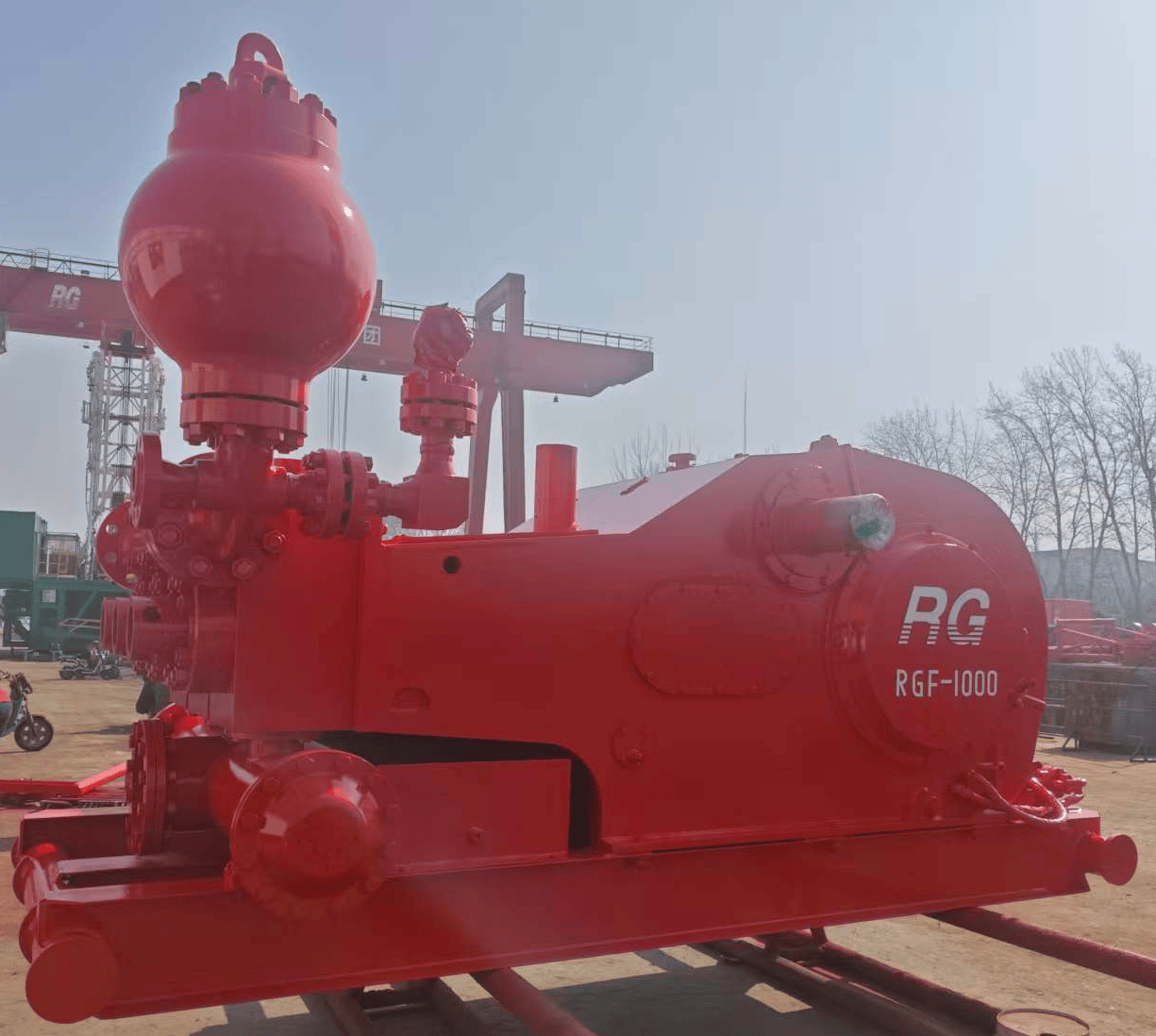

F Series Mud Pump

Name: F Series Mud Pump
Availability: InStock

Negotiable

RG (Luo Yang) Petro-Equipment Co., Ltd.

Located Region:

China

Address:

No. 2 Guzhou Road, Luoxin Park, Economic and Technological Development Zone, Xin'an County, Luoyang City, Henan Province

Biz Consulting:

15037972797

E-mail:

fengyd777@126.com

Online Contact

Favorite

The mud pump covers mainstream F series models and is suitable for petroleum drilling, oil and gas production and other scenarios. It is mainly used in petroleum and natural gas drilling operations to deliver high-pressure mud downhole, realizing the core functions of cooling the drill bit, carrying cuttings, and balancing formation pressure. The RGF500 mud pump (API 7K standard) is a three-cylinder single-acting piston pump designed for oil and gas drilling and geological exploration, with a rated power of 515HP (384kW) and a maximum stroke of 170SPM. It has the advantages of reasonable structure, advanced technology, reliable use, good suction performance, long service life of wearing parts, good interchangeability, and easy maintenance.

The liquid cylinder, crankshaft, herringbone gear and other important parts of the RGF series pump are all made of high-quality alloy steel.
Herringbone gear transmission, low transmission noise, no axial force, and more durable bearings.
The frame adopts a plate welded structure, with high strength, good rigidity and light weight.
All wearing parts at the hydraulic end are interchangeable with parts of the same specifications that meet API standard requirements, easy to repair and maintain, and have good cost-effectiveness.

500hp Mud Pump Parameter Performance:

Strokes/min

Liner Diameter mm

170

160

150

140

130

120

110

100

Rated Pressure Mpa (psi)

9.4
(1365)

10.6
(1540)

12.1
(1750)

13.9
(2010)

16.1
(2335)

18.9
(2740)

22.5
(3260)

27.2
(3945)

34.5
(5000)

Rated Power

Displacement L/s
(GPM)

170

384

515

36.75

32.56

28.61

24.93

21.49

18.31

15.39

12.72

10.30

(582)

(516)

(453)

(395)

(340)

(290)

(244)

(201)

(163)

*165

*373

500

35.67

31.60

27.77

24.19

20.86

17.77

14.93

12.34

10.00

(565)

(501)

(440)

(383)

(330)

(281)

(236)

(195)

(158)

150

339

455

32.43

28.73

25.25

21.99

18.96

16.16

13.58

11.22

9.09

(514)

(455)

(400)

(348)

(300)

(256)

(215)

(178)

(144)

140

316

424

30.27

26.81

23.56

20.53

17.70

15.08

12.67

10.47

8.48

(480)

(425)

(373)

(325)

(280)

(239)

(201)

(166)

(134)

130

294

394

28.11

24.90

21.88

19.06

16.44

14.00

11.77

9.73

7.87

(445)

(394)

(347)

(302)

(260)

(222)

(186)

(154)

(124)

120

271

364

25.94

22.98

20.20

17.60

15.17

12.93

10.86

8.98

7.27

(411)

(364)

(320)

(279)

(240)

(205)

(172)

(142)

(115)

110

249

333

23.78

21.07

18.52

16.13

13.91

11.85

9.96

8.23

6.66

(377)

(334)

(293)

(255)

(220)

(188)

(158)

(130)

(105)

0.2162

0.1915

0.1683

0.1466

0.1264

0.1077

0.0905

0.0748

0.0606

(3.427)

(3.036)

(2.668)

(2.324)

(2.004)

(1.707)

(1.435)

(1.186)

(0.960)

★Note: 1. The parameters in this table are calculated based on 100% volumetric efficiency and 90% mechanical efficiency.

2. The * marked are the recommended strokes and input power under continuous operation under this working condition.

800hp Mud Pump Parameter Performance:

Strokes/min	Liner Diameter mm		170	160	150	140	130	120	110	100
	Rated Pressure Mpa (psi)		13.8 (2000)	15.6 (2260)	17.7 (2570)	20.3 (2950)	23.6 (3420)	27.7 (4015)	32.9 (4780)	34.5 (5000)
	Rated Power		Displacement L/s (GPM)
	kW	HP	Displacement L/s (GPM)
160	636	853	41.51	36.77	32.32	28.15	24.27	20.68	17.38	14.36
160	636	853	(658)	(583)	(512)	(446)	(358)	(328)	(275)	(227)
*150	*596	800	38.92	34.47	30.30	26.39	22.76	19.39	16.29	13.47
*150	*596	800	(617)	(546)	(480)	(418)	(360)	(307)	(258)	(213)
140	557	747	36.32	32.17	28.28	24.63	21.24	18.1	15.21	12.57
140	557	747	(575)	(510)	(448)	(390)	(336)	(287)	(241)	(199)
130	517	693	33.73	29.88	26.26	22.87	19.72	16.81	14.12	11.67
130	517	693	(534)	(473)	(416)	(362)	(312)	(266)	(224)	(185)
120	477	640	31.13	27.58	24.24	21.11	18.21	15.51	13.03	10.77
120	477	640	(493)	(437)	(384)	(334)	(288)	(246)	(206)	(171)
110	437	587	28.54	25.28	22.22	19.35	16.69	14.22	11.95	9.87
110	437	587	(452)	(400)	(352)	(307)	(264)	(225)	(189)	(156)
1			0.2594	0.2298	0.2020	0.1759	0.1517	0.1293	0.1086	0.0898
1			(4.112)	(3.643)	(3.202)	(2.789)	(2.405)	(2.049)	(1.722)	(1.423)
★Note: 1. The parameters in this table are calculated based on 100% volumetric efficiency and 90% mechanical efficiency. 2. The * marked are the recommended strokes and input power under continuous operation under this working condition.

1000hp Mud Pump Parameter Performance:

Strokes/min	Liner Diameter mm		170	160	150	140	130	120	110
	Rated Pressure Mpa (psi)		16.6 (2410)	18.8 (2725)	21.4 (3100)	24.5 (3555)	28.4 (4125)	33.4 (4840)	34.5 (5000)
	Rated Power		Displacement L/s (GPM)
	kW	HP	Displacement L/s (GPM)
150	799	1071	43.24	38.30	33.66	29.33	25.29	21.55	18.1
150	799	1071	(685)	(607)	(533)	(465)	(401)	(341)	(287)
*140	*746	1000	40.36	35.75	31.42	27.37	23.60	20.11	16.90
*140	*746	1000	(639)	(566)	(498)	(434)	(374)	(318)	(268)
130	692	929	37.47	33.20	29.13	25.42	21.92	18.67	15.69
130	692	929	(594)	(526)	(462)	(403)	(347)	(296)	(248)
120	639	857	34.59	30.64	26.93	23.46	20.23	17.24	14.48
120	639	857	(548)	(485)	(427)	(372)	(320)	(273)	(229)
110	586	786	31.71	28.09	24.93	21.51	18.54	15.80	13.28
110	586	786	(502)	(445)	(391)	(341)	(294)	(250)	(210)
100	533	714	28.83	25.53	22.44	19.55	16.86	14.36	12.07
100	533	714	(457)	(404)	(355)	(310)	(267)	(227)	(191)
1			0.2883	0.2553	0.2244	0.1955	0.1686	0.1436	0.1207
1			(4.569)	(4.047)	(3.557)	(3.099)	(2.672)	(2.277)	(1.913)
★Note: 1. The parameters in this table are calculated based on 100% volumetric efficiency and 90% mechanical efficiency. 2. The * marked are the recommended strokes and input power under continuous operation under this working condition.

1300hp Mud Pump Parameter Performance:

Strokes/min	Liner Diameter mm		180	170	160	150	140	130
	Rated Pressure Mpa (psi)		18.7 (2720)	21.0 (3050)	23.7 (3440)	27.0 (3915)	31.0 (4495)	34.5 (5000)
	Rated Power		Displacement L/s (GPM)
	kW	HP	Displacement L/s (GPM)
130	1050	1408	50.42	44.97	39.83	35.01	30.50	26.30
130	1050	1408	(799)	(713)	(631)	(555)	(483)	(417)
*120	*969	1300	46.54	41.51	36.77	32.32	28.15	24.27
*120	*969	1300	(737)	(658)	(583)	(512)	(446)	(385)
110	889	1192	42.66	38.05	33.71	29.62	25.81	22.25
110	889	1192	(676)	(603)	(534)	(469)	(409)	(352)
100	808	1083	38.78	34.59	30.64	26.93	23.46	20.23
100	808	1083	(614)	(548)	(485)	(427)	(372)	(320)
90	727	975	34.90	31.13	27.58	24.24	21.11	18.21
90	727	975	(553)	(493)	(437)	(384)	(334)	(288)
1			0.3878	0.3459	0.3064	0.2693	0.2346	0.2023
1			(6.147)	(5.483)	(4.857)	(4.269)	(3.719)	(3.206)
★Note: 1. The parameters in this table are calculated based on 100% volumetric efficiency and 90% mechanical efficiency. 2. The * marked are the recommended strokes and input power under continuous operation under this working condition.

1600hp Mud Pump Parameter Performance:

Strokes/min	Liner Diameter mm		180	170	160	150	140	130
	Rated Pressure Mpa (psi)		23.6 (3345)	25.9 (3750)	29.2 (4235)	33.2 (4820)	35.1 (5000)	34.5 (5000)
	Rated Power		Displacement L/s (GPM)
	kW	HP	Displacement L/s (GPM)
130	1293	1733	50.42	44.97	39.83	35.01	30.50	26.30
130	1293	1733	(799)	(713)	(631)	(555)	(483)	(417)
*120	*1193	1600	46.54	41.51	36.77	32.32	28.15	24.27
*120	*1193	1600	(737)	(658)	(583)	(512)	(446)	(385)
110	1094	1467	42.66	38.05	33.71	29.62	25.81	22.25
110	1094	1467	(676)	(603)	(534)	(469)	(409)	(352)
100	994	1333	38.78	34.59	30.64	26.93	23.46	20.23
100	994	1333	(614)	(548)	(485)	(427)	(372)	(320)
90	727	975	34.90	31.13	27.58	24.24	21.11	18.21
90	727	975	(553)	(493)	(437)	(384)	(334)	(288)
1			0.3878	0.3459	0.3064	0.2693	0.2346	0.2023
1			(6.147)	(5.483)	(4.857)	(4.269)	(3.719)	(3.206)
★Note: 1. The parameters in this table are calculated based on 100% volumetric efficiency and 90% mechanical efficiency. 2. The * marked are the recommended strokes and input power under continuous operation under this working condition.

1600hp High-Pressure Mud Pump Parameter Performance:

Strokes/min	Liner Diameter mm		190	180	170	160	150	140	130	120
	Rated Pressure MPa (psi)		20.7 (3005)	23.1 (3345)	25.9 (3750)	29.2 (4235)	33.2 (4820)	38.1 (5530)	44.2 (6415)	51.7 (7500)
	Rated Power		Displacement L/s (GPM)
	kW	HP	Displacement L/s (GPM)
130	1293	1733	56.17	50.42	44.97	39.83	35.01	30.50	26.30	22.4
130	1293	1733	(890)	(799)	(713)	(631)	(555)	(483)	(417)	(355)
*120	*1193	1600	51.85	46.54	41.51	36.77	32.32	28.15	24.27	20.7
*120	*1193	1600	(822)	(737)	(658)	(583)	(512)	(446)	(385)	(328)
110	1094	1467	47.53	42.66	38.05	33.71	29.62	25.81	22.25	19.0
110	1094	1467	(753)	(676)	(603)	(534)	(469)	(409)	(352)	(301)
100	994	1333	43.21	38.78	34.59	30.64	26.93	23.46	20.23	17.2
100	994	1333	(685)	(614)	(548)	(485)	(427)	(372)	(320)	(273)
90	727	975	38.89	34.90	31.13	27.58	24.24	21.11	18.21	15.5
90	727	975	(616)	(553)	(493)	(437)	(384)	(334)	(288)	(246)
1			0.4321	0.3878	0.3459	0.3064	0.2693	0.2346	0.2023	0.1724
1			(6.850)	(6.147)	(5.483)	(4.857)	(4.269)	(3.719)	(3.206)	(2.729)
★Note: 1. The parameters in this table are calculated based on 100% volumetric efficiency and 90% mechanical efficiency. 2. The * marked are the recommended strokes and input power under continuous operation under this working condition.
