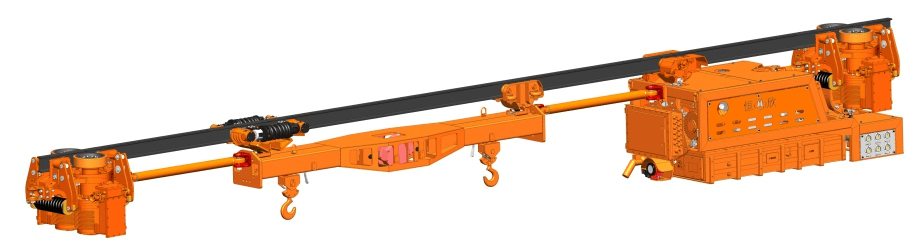

The explosion-proof lithium battery dispatching monorail crane locomotive (permanent magnet frequency conversion integrated machine) is mainly composed of a drive unit, a power supply device (including an explosion-proof lithium-ion battery), a speed protection trolley, a load-bearing trolley, apull rod, a lifting beam, an electro-hydraulic control car (including a hydraulic system, an electrical control system and safety protection), etc.
1/4

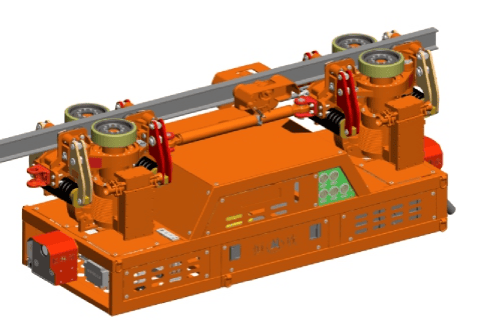

Explosion-proof lithium battery dispatching monorail crane locomotive (permanent magnet frequency conversion integrated machine)
Negotiable
China
High-Tech Industrial Development Zone, Shaoshan City, Hunan Province
13317325095
2259714705@qq.com
Product Introduction
Product Parameters
| Table 1: Performance parameters of explosion-proof lithium battery single-drive dispatching monorail crane locomotive (permanent magnet frequency conversion integrated machine) | ||||
| Project/Parameter | DLR30/13Y | DLR30/17Y | DLR30/44Y | |
| Traction motor power(kW) | 2x6.5 | 2x8.5 | 2x22 | |
| Maximum operating speed(m/s) | 2 | |||
| Maximum climbing ability (°) | 25 | |||
| Minimum curvature radius(m) | Horizontal 4/Vertical 8 | |||
| Equipment weight(t) | 4.0 | |||
| locomotive Dimensions |
Length(mm) | 3070 | ||
| Width(mm) | 1100 | |||
| Height(mm) | 1231 | |||
| Number of drive units | 1 | |||
| Number of brakes | 2 | |||
| Braking force(kN) | 45~60 | |||
| Applicable track model | I140E/I140V/I140E (with rack) | |||
| Total cap acity of lithium battery(kW.h) | 73.6 | |||
| Comprehensive endurance of lithium battery(km) | 10~18km | |||
| Rated working pressure of hydraulic system (MPa) | 16 | |||
| Table 2: Performance parameters of explosion-proof lithium battery dual-drive dispatching monorail crane locomotive (permanent magnet frequency conversion integrated machine) | |||
| Project/Parameter | DLR60/34Y | DLR60/88Y | |
| Traction motor power(kW) | 4x8.5 | 4x22 | |
| Maximum operating speed(m/s) | 2 | ||
| Maximum climbing ability(°) | 25 | ||
| Minimum curvature radius(m) | Horizontal 4/Vertical 8 | ||
| Equipment weight (t) | 5.4 | ||
| locomotive Dimensions |
Length(mm) | 4700 | |
| Width(mm) | 1100 | ||
| Height(mm) | 1231 | ||
| Number of drive units | 2 | ||
| Number of brakes | 4 | ||
| Braking force (kN) | 90~120 | ||
| Applicable track model | I140E/I140V/11 40E(with rack) | ||
| Total capacity of lithium battery(kW.h) | 73.6 | ||
| Lithium battery life(km) | 10~18km | ||
| Rated working pressure of hydraulic system (MPa) | 16 | ||
| Table 3: Performance parameters of explosion-proof lithium battery dispatching monorail crane (permanent magnet frequency conversion integrated machine) | |||
| Project/Parameter | DLR90/51Y | DLR120/68Y | |
| Traction motor power(kW) | 6x8.5 | 8x8.5 | |
| Maximum operating speed(m/s) | 2 | ||
| Maximum climbing ability (°) | 25 | ||
| Passing minimum curvature radius (m) | Horizortal 4/Vertical8 | ||
| Equipment weight(t) | 6.8 | 8.2 | |
| locomotive Dimensions |
Length(mm) | 6400 | 8100 |
| Width(mm) | 1100 | ||
| Height(mm) | 1231 | ||
| Number of drive units | 3 | 4 | |
| Number of brakes | 6 | 8 | |
| Braking force(kN) | 135~180 | 180~240 | |
| Applicable track model | I140E/I140/VI140E(with rack) | ||
| Total capacity of lithium battery(kW.h) | 73.6 | ||
| Comprehensive endurance of lithium battery(km) | 10~18km | ||
| Rated working pressure of hydraulic system (MPa) | 16 | ||
Performance parameter table
| Explosion-proof lithium battery dispatching monorail crane locomotive (permanent magnet frequency conversion integrated machine) load comparison table (unit:t) | ||||||
| Locomotive model\Slope (°) | 0 | 5 | 10 | 15 | 20 | 25 |
| DLR30/17Y | 28 | 18 | 8 | 4.5 | 2.5 | 1.3 |
| DLR56/24Y | 55 | 35 | 17 | 10 | 6.8 | 4.6 |
| DLR84/36Y | 60 | 55 | 27 | 17 | 11.5 | 8.2 |
| DLR120/68Y | 60 | 60 | 40 | 25 | 18 | 13 |
| DLR30/44Y | 28 | 18 | 8 | 4.5 | 2.5 | 1.3 |
| DLR60/88Y | 55 | 35 | 17 | 10 | 6.8 | 4.6 |
| Note: The load in the table is the safe load of the locomotive (safe load =deadweight of the lifting beam +weight of the cargo). | ||||||
