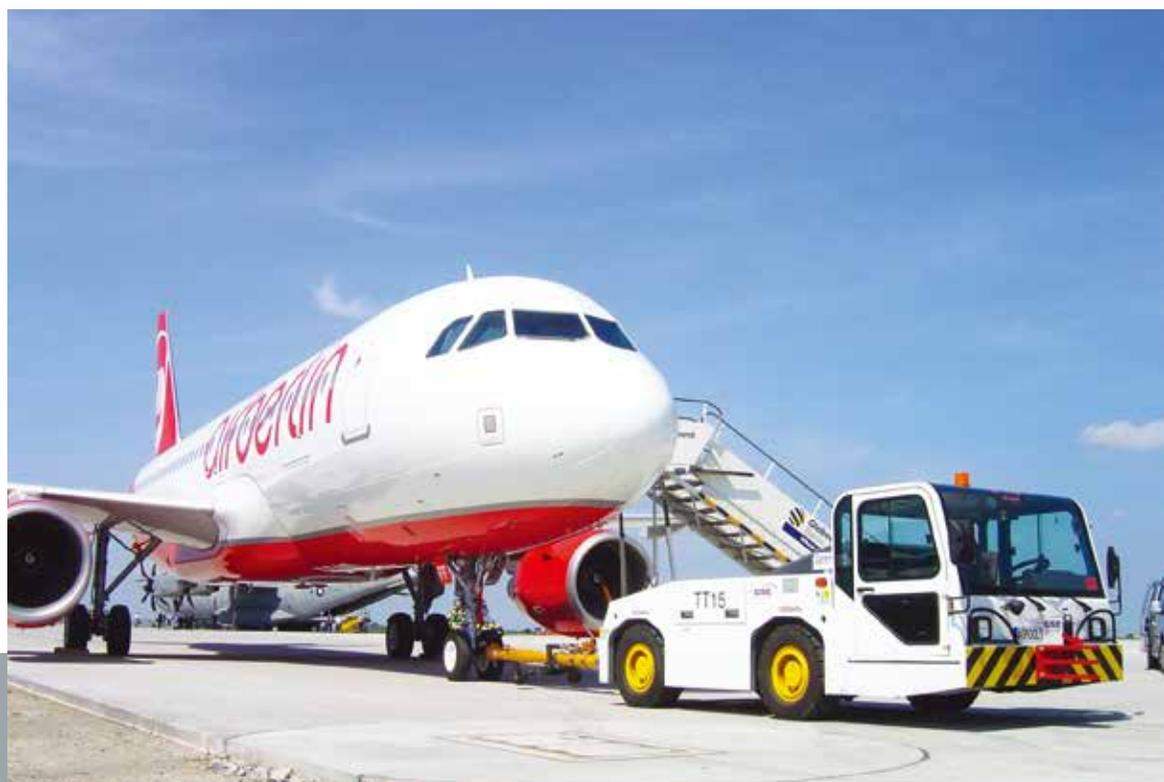

Guangtai aircraft tow tractor series: WGQY15 and WGQY27 are perfect solutions to perform push and pull operations on narrow and medium body aircrafts.
Engine protection;
Emergency steering;
Emergency braking;
Interlock between hand brake and driving.
Front-wheel/Four-wheel/Crab steering;
Automatic wheel alignment;
Fully-hydraulic steering and braking system;
Electronic-controlled shifting gearbox.
| WGQY15 | WGQY27 | |
|---|---|---|
| ERJ-145 | ● | ● |
| ARJ | ● | ● |
| B737 | ● | ● |
| B757 | ● | ● |
| B767 | ● | ● |
| B777-200 | ● | |
| B787(-800,-900) | ● | |
| A319 | ● | ● |
| A320 | ● | ● |
| A330(-200,-200F,-300) | ● | |
| A340-500 | ● | |
| A350 | ● |
| WGQY15 | WGQY27 | |
|---|---|---|
| Self-Weight | 12 to 15 t | 27t |
| Max. Draw Bar Pull | 94 to 120 kN | 210 kN |
| Aircraft MTOW | ≤ 150 t | ≤320 t |
| Max. Driving Speed | 30 km/h | 30 km/h |
| Min. Turning Radius | Front-wheel 5,000 mm Four-wheel 3,300 mm |
Front-wheel 8,750 mm Four-wheel 5,200 mm |
| Cab Lifting Height | - | 550 mm |
| MAIN CONFIGURATION | OPTIONAL | ||||
|---|---|---|---|---|---|
| WGQY15 | WGQY27 | ||||
| Engine | Cummins/Deutz | Cummins/Deutz | Reversing Camera | 360° Panorama Camera | |
| Transmission | DANA | ZF | Reversing Radar | Telemetry | |
| Axle | DANA | KESSLER | Driving Recorder | ||
